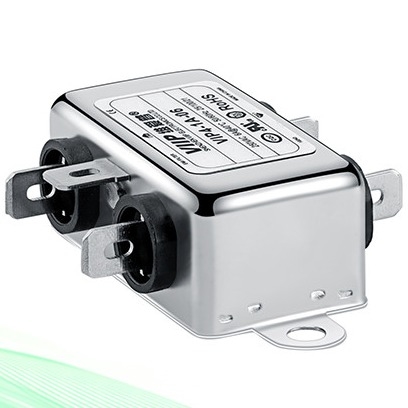

High Insulation Resistance 0.7kg EMI Filter Single Phase

High Insulation Resistance 0.7kg EMI Filter Single Phase
High Insulation Resistance 0.7kg EMI Filter Single Phase

Large Image :  High Insulation Resistance 0.7kg EMI Filter Single Phase

Product Details:
Place of Origin: Shenzhen
Brand Name: weiaipu
Certification: TUV UL
Model Number: VIP4-2B-20
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Delivery Time: 15-25 days
Payment Terms: T/T
Supply Ability: 2000pcs /week

High Insulation Resistance 0.7kg EMI Filter Single Phase

Description
Withstand Voltage: ≥1500VAC/1min Operating Temperature: -25℃~+85℃
Frequency Range: 50/60Hz Product Name: Single Phase EMI Filter
Storage Temperature: -40℃~+105℃ Leakage Current: ≤0.75mA
Weight: 0.7kg Insulation Resistance: ≥100MΩ
High Light:

0.7kg EMI Filter

,

High Insulation Resistance EMI Filter

Product Description:

Single Phase EMI Filter

Single Phase EMI Filter is a kind of electromagnetic interference filter that can reduce the impact of electromagnetic interference on electrical equipment. It is widely used in lighting, home appliances, electric tools and other electrical products.

The rated voltage of the Single Phase EMI Filter is 220VAC, with a maximum humidity of 95%RH. The impedance of the filter is ≤1.5Ω and the frequency range is 50/60Hz. The filter has obtained CE, RoHS, TUV and UL certifications.

The Single Phase EMI Filter provides superior protection against EMI and RFI interference, ensuring that your electrical appliances operate reliably and efficiently.



Features:

  • Product Name: Single Phase EMI Filter
  • Noised filter to improve the signal-to-noise ratio
  • Withstand Voltage: ≥1500VAC/1min
  • Certification: CE, RoHS,TUV ,UL
  • Leakage Current: ≤0.75mA
  • Weight: 0.7kg


Applications:

Weiaipu Single Phase EMI Filter has high impedance, low insertion loss and excellent characteristics, and is widely used in AC single phase power systems. Model VIP4-2B-20, with a rated current of 20A, its impedance is ≤1.5Ω, operating temperature is -25℃~+85℃, and insulation resistance is ≥100MΩ, and withstand voltage is ≥1500VAC/1min.

Weiaipu's Single Phase EMI Filter can effectively reduce electromagnetic interference, suppress transients, and ensure the stability of the system. It is suitable for single phase power systems, industrial electro-mechanical equipment, control systems, communication equipment, and household appliances. Its unique design ensures the filter has small size, light weight and low cost.

Weiaipu Single Phase EMI Filter is a reliable, cost-effective, and high-performance filter solution for many AC single phase systems. It is the best choice to reduce EMI interference and ensure the stable operation of the system.



Technical Parameters:

Parameter single phase
Product Name Single Phase EMI Filter
Size 87*52*41mm
Certification CE, RoHS,TUV ,UL
Rated Voltage 220VAC
Withstand Voltage ≥1500VAC/1min
Leakage Current ≤0.75mA
Impedance ≤1.5Ω
Operating Temperature -25℃~+85℃
Humidity ≤95%RH
Storage Temperature -40℃~+105℃


Customization:

Single Phase EMI Filter

Weiaipu offers our customers a custom-made single phase EMI filter that is both reliable and durable. Our AC single phase filter is designed to reduce the amount of electromagnetic interference in electrical systems. Our single phase EMI filter is made with quality materials and has a rated voltage of 220VAC, a rated current of 20A and a humidity level of ≤95%RH. Additionally, our single phase EMI filter has an insulation resistance of ≥100MΩ. All of our EMI filters come with our brand name, Weiaipu, and a model number of VIP4-2B-20, and are manufactured in Shenzhen.



Support and Services:

Single Phase EMI Filter Technical Support and Service

Single Phase EMI Filter offers comprehensive technical support and service for its products. Our team of experienced professionals is available to answer any questions you may have about installation, operation, and maintenance.

We are dedicated to providing the highest quality support and service to ensure that our products meet your needs and expectations. We strive to respond quickly to all inquiries and provide advice and solutions to any problems you may encounter.

Our technical support team is available 24/7 and can be reached by phone, email, or chat. We also offer a wide range of online resources, such as user manuals, installation guides, and troubleshooting tips.

At Single Phase EMI Filter, we are committed to providing the best customer support and service possible. We want to make sure that you are completely satisfied with our products.



Packing and Shipping:

Packaging and Shipping

Single Phase EMI Filter is packaged in a quality box with foam inserts to protect it from damage. The box is labeled with the product description, serial number, part number, and other important information. To ensure the product is shipped securely, it is further wrapped in bubble wrap and placed in a larger box for shipping.



FAQ:

Q1: What is Single Phase EMI Filter?

A1: Single Phase EMI Filter is a product of weiaipu, model VIP4-2B-20, which is made in Shenzhen. It is mainly used to filter electromagnetic interference and protect sensitive electronic equipment from damage.

Q2: What is the material of Single Phase EMI Filter?

A2: The materials of Single Phase EMI Filter are mainly copper, aluminum, and plastic. The core material is made of high-quality ferrite material.

Q3: What are the features of Single Phase EMI Filter?

A3: Single Phase EMI Filter has features such as high efficiency, low temperature rise, good waveform characteristics, good EMI filtering effect, small size, light weight, and easy installation.

Q4: What are the applications of Single Phase EMI Filter?

A4: Single Phase EMI Filter is widely used in electronic equipment such as computers, home appliances, power supply circuits, and communication circuits.

Q5: How to install Single Phase EMI Filter?

A5: Single Phase EMI Filter can be installed according to the needs of the equipment. In general, it is recommended to install a filter at the power input port of the equipment to achieve better filtering effect.
