50/60Hz Single Phase EMI Filter With 0.7kg Weight

50/60Hz Single Phase EMI Filter With 0.7kg Weight
50/60Hz Single Phase EMI Filter With 0.7kg Weight

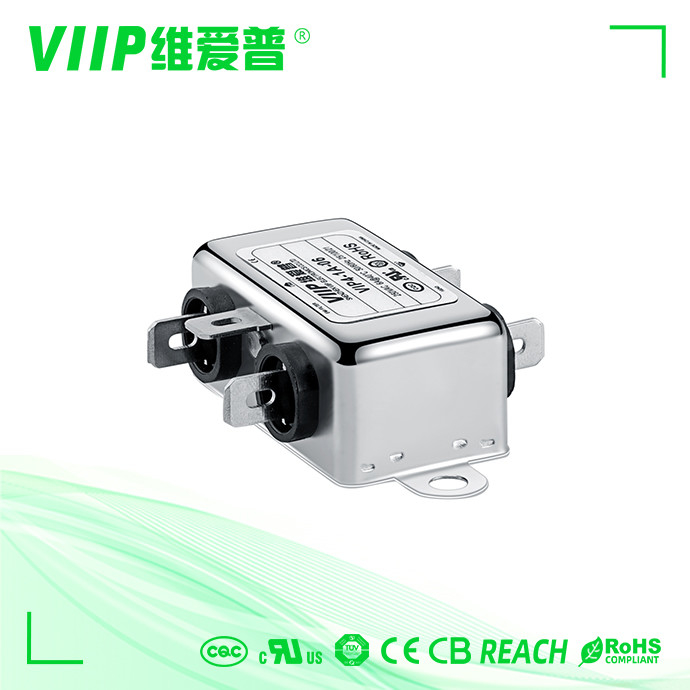

Large Image :  50/60Hz Single Phase EMI Filter With 0.7kg Weight

Product Details:
Place of Origin: Shenzhen
Brand Name: weiaipu
Certification: CE, RoHS,TUV ,UL
Model Number: VIP4-2B-20
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Delivery Time: 15-25 days
Payment Terms: T/T
Supply Ability: 2000pcs /week

50/60Hz Single Phase EMI Filter With 0.7kg Weight

Description
Operating Temperature: -25℃~+85℃ Size: 87*52*41mm
Product Name: Single Phase EMI Filter Withstand Voltage: ≥1500VAC/1min
Impedance: ≤1.5Ω Leakage Current: ≤0.75mA
Insulation Resistance: ≥100MΩ
High Light:

60Hz EMI Filter

,

0.7kg Weight EMI Filter

,

AC Single Phase EMI Filter

Single Phase 50/60Hz EMI Filter With 0.7kg Weight For B2B Market

Product Description:

Single Phase EMI Filter

This Single Phase EMI Filter is an AC single phase filter that can effectively reduce EMI noise and improve the quality of power supply. It has high surge current capability, strong anti-interference, and excellent filtering performance. It is widely used in power filtering and interference suppression applications.

This single phase filter has a wide operating temperature range of -25℃ to +85℃ and a storage temperature range of -40℃ to +105℃, making it suitable for a variety of different industrial environments. It is also certified to CE, RoHS,TUV and UL standards, ensuring that it meets the highest safety and quality requirements. It also has a high withstand voltage of at least 1500VAC/1min and excellent humidity resistance of up to 95%RH.

This Single Phase EMI Filter is the perfect choice for power filtering and EMI noise reduction applications, thanks to its superior safety, quality, and performance features.



Features:

  • Product Name: Single Phase EMI Filter
  • Impedance: ≤1.5Ω
  • Leakage Current: ≤0.75mA
  • Storage Temperature: -40℃~+105℃
  • Withstand Voltage: ≥1500VAC/1min
  • Operating Temperature: -25℃~+85℃
  • Features:
    • Power Filter
    • Noised Filter
    • AC Single Phase Filter


Applications:

Weiaipu Single Phase EMI Filter – VIP4-2B-20

Weiaipu VIP4-2B-20 single phase EMI filter is designed to reduce noise interference from AC single phase power source. It is originated in Shenzhen and has a size of 87*52*41mm, and a weight of 0.7kg. It has a rated current of 20A and a frequency range of 50/60Hz.

The Weiaipu single phase EMI filter can provide excellent noise reduction performance for AC single phase power source. It has a compact size and can be easily installed in any narrow space. By using this filter, you can reduce the noise interference from the AC single phase power source and obtain a stable AC power supply.

Weiaipu single phase EMI filter is ideal for various industries, such as automotive, telecommunications, aerospace, and medical. It can be used in a wide range of applications, such as power supplies, power grids, industrial control systems, and consumer electronics. It is a reliable and cost-effective solution for noise reduction in AC single phase power source.



Technical Parameters:

Parameter Value
Product Name Single Phase EMI Filter
Humidity ≤95%RH
Impedance ≤1.5Ω
Operating Temperature -25℃~+85℃
Rated Current 20A
Rated Voltage 220VAC
Insulation Resistance ≥100MΩ
Leakage Current ≤0.75mA
Withstand Voltage ≥1500VAC/1min
Size 87*52*41mm


Customization:

Single Phase EMI Filter
Product Details:
  • Brand Name: weiaipu
  • Model Number: VIP4-2B-20
  • Place of Origin: Shenzhen
  • Operating Temperature: -25℃~+85℃
  • Frequency Range: 50/60Hz
  • Weight: 0.7kg
  • Rated Voltage: 220VAC
  • Insulation Resistance: ≥100MΩ
Product Description:

Weiaipu provides customized single phase EMI filter for AC single phase filter, noised filter, AC single phase filter and EMI filter. The product has a rated voltage of 220VAC and a frequency range of 50/60Hz. The operating temperature is -25℃~+85℃, and the insulation resistance is ≥100MΩ. The weight is only 0.7kg.



Support and Services:

We offer technical support and services for Single Phase EMI Filter. Our support team is available 24/7 to answer your questions and provide solutions for any issues you may encounter. Our services include installation, maintenance, troubleshooting, and repairs. We also provide online resources such as tutorials, FAQs, and user guides. If you need additional help, we are here to assist you.



Packing and Shipping:

Packaging and Shipping for Single Phase EMI Filter:

The Single Phase EMI Filter will be securely packaged in a waterproof carton and cushioned with foam to ensure minimal risk of damage during shipping.

The Single Phase EMI Filter will be shipped via a reputable and reliable courier service.

We recommend selecting an insured delivery option for any orders to ensure that any potential damages or losses are covered.



FAQ:

Q1: What is Single Phase EMI Filter?
A1: The Single Phase EMI Filter is a device developed by Weiaipu which can reduce electromagnetic emissions from electrical equipment and systems. It is designed to reduce the electromagnetic interference (EMI) of devices using alternating current (AC).

Q2: What is the Brand Name and Model Number of this filter?
A2: The Brand Name of this filter is Weiaipu and the Model Number is VIP4-2B-20.

Q3: What is the Place of Origin of this filter?
A3: This filter is manufactured in Shenzhen, China.

Q4: What are the benefits of using this filter?
A4: This filter can reduce the interference of the electrical system and improve the system's performance. It can also improve the quality of the signals and reduce the risk of electrical fires due to overvoltage.

Q5: What is the size of this filter?
A5: The size of this filter is 20mm x 30mm x 25mm.
