Temperature Range 25℃ - 85℃ 3 Phase EMI Filter 30A Rated Current

Temperature Range 25℃ - 85℃ 3 Phase EMI Filter 30A Rated Current
Temperature Range 25℃ - 85℃ 3 Phase EMI Filter 30A Rated Current
Temperature Range 25℃ - 85℃ 3 Phase EMI Filter 30A Rated Current Temperature Range 25℃ - 85℃ 3 Phase EMI Filter 30A Rated Current

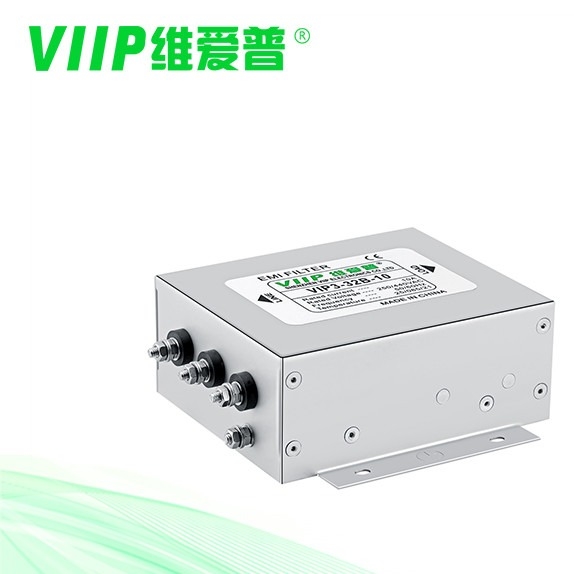

Large Image :  Temperature Range 25℃ - 85℃ 3 Phase EMI Filter 30A Rated Current

Product Details:
Place of Origin: Shenzhen
Brand Name: weiaipu
Certification: CE ROHS TUV UL
Model Number: VIP331-30
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 15-25 days
Payment Terms: T/T
Supply Ability: 2000pcs /week

Temperature Range 25℃ - 85℃ 3 Phase EMI Filter 30A Rated Current

Description
Line To Ground: 2250VDC Or 2000VAC Frequency Range: 50-60Hz
Rated Voltage: 380V/440V Insertion Loss: 60~90dB
Maximum Leakage Current: 115VAC/60HZ 1.4mA Max. 250VAC/60HZ 2.5mA Max Phase: 3
Filter Type: EMI
High Light:

3 Phase EMI Filter 30A

,

ROHS 3 Phase EMI Filter

Temperature Range 25℃ - 85℃ 3-Phase EMI Filter, Maximum Leakage Current 115VAC/60HZ 1.4mA Max. 250VAC/60HZ 2.5mA Max, Me

Product Description:

3 Phase EMI Filter is a power filter specially designed to eliminate the electromagnetic interference (EMI) generated by 3 phase power systems. It features a maximum leakage current of 115VAC/60HZ 1.4mA Max. 250VAC/60HZ 2.5mA Max and an insertion loss of 60~90dB. With a rated current of 30A and line to line of 1450VDC, it is the perfect fit for any 3 phase power system. The 3 Phase EMI Filter is easy to install and maintain, and provides excellent EMI protection for all types of power systems.



Features:

  • Product Name: 3 Phase EMI Filter
  • Filter Type: EMI
  • Frequency Range: 50-60Hz
  • Weight: 1000g
  • Rated Voltage: 380V/440V
  • Rated Current: 30A


Applications:

Weiaipu's 3 Phase EMI Filter (Model Number: VIP331-30) is made of high quality metal and originates from Shenzhen, China. It is designed to filter out electromagnetic noise from the power line, to ensure safe and reliable operation. It can bear current up to 30A, and its temperature range is from 25 to 85℃. The line to line voltage is 1450VDC.

Weiaipu's 3 Phase EMI Filter is an ideal choice for a wide range of applications, including industrial automation, power distribution systems, LED lighting, medical equipment, and commercial appliances. Its featured properties, such as high precision, high reliability, and long service life, make it a perfect solution for many power line interferences.



Technical Parameters:

Parameter Value
Temperature Range 25 / 085 / 21℃
Line to Line 1450VDC
Size 139*80*42mm
Rated Current 30A
Material Metal
Insertion Loss 60~90dB
Frequency Range 50-60Hz
Rated Voltage 380V/440V
Line to Ground 2250VDC Or 2000VAC
Impedance 50Ω


Customization:

WeiAipu offers a range of 3 Phase EMI Filter for various applications. Our 3 Phase EMI Filter are made of high-quality metal, with a line to line rating of 1450VDC and an impedance of 50Ω. It has a rated current of 30A and is ideal for EMI filtering. Our 3 Phase EMI Filter is the perfect solution for your needs.

Brand Name: WeiAipu
Model Number: VIP331-30
Place of Origin: Shenzhen
Material: Metal
Line to Line: 1450VDC
Impedance: 50Ω
Rated Current: 30A
Filter Type: EMI



Support and Services:

3 Phase EMI Filter Technical Support & Services

We provide technical support and services for our 3 Phase EMI Filter product. Our customer service team is available to answer any questions, provide technical advice, and troubleshoot any problems you may have encountered while using our product.

Customer Support

Our customer support team is available 24/7 to provide you with quality service. You can reach us by phone, email, or live chat. We will be happy to answer any questions about our product and assist you with any technical issues.

Warranty

We offer a one-year limited warranty on our 3 Phase EMI Filter. If you experience any defects or malfunctions within the first year of purchase, please contact us immediately. We will work with you to resolve the issue as quickly as possible.

Software Updates

We are constantly striving to improve our 3 Phase EMI Filter product. To ensure that you are using the latest version of the software, we provide regular software updates. These updates can be downloaded directly from our website.



Packing and Shipping:

Packaging and Shipping for 3 Phase EMI Filter:

The 3 Phase EMI Filter is packaged in a cardboard box, and is wrapped in a protective bubble wrap to ensure that it is delivered to customers in a safe and secure condition. The box is then sealed with adhesive tape, and is labeled with the product name, model number, and customer's address. The package is then shipped by an air courier.



FAQ:

Q1: What is 3 Phase EMI Filter?
A1: 3 Phase EMI Filter is a product produced by weiaipu with the model number VIP331-30. It is manufactured in Shenzhen and can effectively suppress electromagnetic interference.
Q2: What are the features of 3 Phase EMI Filter?
A2: 3 Phase EMI Filter features high performance, wide frequency range, low insertion loss, and low leakage current.
Q3: What are the applications of 3 Phase EMI Filter?
A3: 3 Phase EMI Filter is widely used in power supply, motors, industrial control, communication, household appliances and other fields.
Q4: What is the maximum operating temperature of 3 Phase EMI Filter?
A4: The maximum operating temperature of 3 Phase EMI Filter is 105℃.
Q5: What materials are used to make 3 Phase EMI Filter?
A5: 3 Phase EMI Filter is made of high quality metal, plastic, and ceramic materials.
