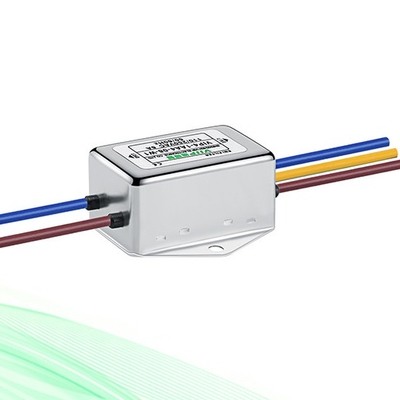

Metal Case EMI Filter 10A 10KHz-30MHz For Exercise Equipment

Metal Case EMI Filter 10A 10KHz-30MHz For Exercise Equipment
Metal Case EMI Filter 10A 10KHz-30MHz For Exercise Equipment
Metal Case EMI Filter 10A 10KHz-30MHz For Exercise Equipment  Metal Case EMI Filter 10A 10KHz-30MHz For Exercise Equipment

Large Image :  Metal Case EMI Filter 10A 10KHz-30MHz For Exercise Equipment

Product Details:
Place of Origin: China
Brand Name: VIIP
Certification: CE TUV ROHS REACH
Model Number: VIP4-2B-20
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs within 10-15 days

Metal Case EMI Filter 10A 10KHz-30MHz For Exercise Equipment

Description
Type: AC Single Filter Rated Current: 20A
Rated Voltage: 110/250VAC Nominal Center Frequency: 10KHZ~30MHZ
Transfer Function: Low Pass Application: Electronic Equipments
High Light:

10KHz EMI Filter 10A

,

Exercise Equipment EMI Filter 10A

,

Metal Case 10A AC EMI Filter

10A Metal Case EMI Filter,10KHz-30MHz,For Exercise Equipment

Quick Detail:



Item number VIP4-2B-20
Package Type Surface Mount
Nominal Center Frequency 10KHZ-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 110V/250V
Rated Current 20A
Environmental Temperature 40°C
Temperature 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1760VDC
Line to Ground 2200VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 5pcs
PORT Shenzhen
Lead Time 5~15 working days



Features:
•220Vac, 50/60Hz input
•Rated current 10A, maximum 15A for 5 minutes
•High EMI noise attenuation up to 50dB from 10KHz to 30MHz
•Rugged metal case for improved shielding and heat dissipation
•Flame retardant and RoHS compliant
•Compact size with mounting holes for easy installation



Applications:
•Treadmills, exercise bikes, elliptical and rowing machines
• Prevent EMI noises generated from AC and electronic components
• Provide clean power source for sensitive control circuits
• Improve equipment performance and service life
• Meet regulatory EMC standards for safe and reliable operationThis EMI filter suits various exercise equipment such as treadmills to suppress power line EMI disturbances. Its metal case provides enhanced shielding and heat dissipation for high power handling capacity. Significant noise attenuation over 10KHz to 30MHz range helps ensure the precision and stability of motor drive and control systems.







Specifications:

Part No. Rated Current [A] 250VAC/50Hz @ 20C
Leakage Current [mA]
Physical Dimensions Electrical Schematics Terminals Weight [g]
screw terminal block wires
VIP4-2A-01 1A <0.5mA Fig 2 Fig 1 - - - - - - 0 95
VIP4-2A-03 3A <0.5mA Fig 2 Fig 1 - - - - - - 0 95
VIP4-2A-06 6A <0.5mA Fig 2 Fig 1 - - - - - - 0 95
VIP4-2A-10 10A <1.0mA Fig4 Fig 1 - - - 0 - - - 170
VIP4-2B-06 6A <1.0mA Fig4 Fig 2 M4 0 - - - 170
VIP4-2B-10 10A <1.0mA Fig4 Fig 2 M4 0 - - - 170
VIP4-2B-20 20A <1.0mA Fig4 Fig 2 M4 0 - - - 321
VIP4-2B -50 50A <2.0mA Fig 5 Fig 2 M6 - - - - - - 1400
VIP4-2B-100 100A <2.0mA Fig 5 Fig 2 M6 - - - - - - 2000
VIP4-2B-200 200A <2.0mA Fig 5 Fig 2 M8 - - - - - - 3000
VIP4-2C-01 1A <0.5mA Fig 1 Fig 3 M10 - - - 0 65
VIP4-2C-03 3A <0.5mA Fig 2 Fig 3 M10 - - - 0 95
VIP4-2C-06 6A <1.0mA Fig4 Fig 3 M4 0 - - - 175
VIP4-2C-10 10A <1.0mA Fig4 Fig 3 M4 0 - - - 175
VIP4-2C-20 20A <1.0mA Fig 5 Fig 3 M4 - - - - - - 600
VIP4-2C-50 50A <2.0mA Fig 5 Fig 3 M6 - - - - - - 1600





Electrical schematic:

Metal Case EMI Filter 10A 10KHz-30MHz For Exercise Equipment  0

Mechanical Dimension(Unit: mm)



Metal Case EMI Filter 10A 10KHz-30MHz For Exercise Equipment  1









  •

FAQ:

Q1: Do you offer customized product ?
A: Yes, we can develop a new mold at you need if you can provide us with the samples or drawings and specification.


Q2: Are you a factory?
A: Yes, we are an ISO9001 manufacturer, an integration of EMI filter R&D, production and sales since 2009.


Q3: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.


Q4: How about the payment terms?
A: We usually require T/T in advance. If the amount is more than 5000USD, we can negotiate about the payment term,like 70% deposit in advance 30% pay before delivery, etc.
Q5: How about the certificates?
A:ISO9001,CE, TUV, UL, ROHS, CQC, REACH etc.


    We offer AC single phase to suit the needs of your industry. We manufacture RFI filters for aerospace, telecom, military and medical applications, as well as a variety of other industries. We are experienced in manufacturing many types of filters like our single phase RFI filters, medical filters, power entry filters, DC filters and three phase RFI filters.Single phase filters from Curtis Industries are used to reduce the EMI in 250VAC applications. Our single phase filters are great for many industries and are available in three different types including general purpose, high performance and wide band. These RFI filters are ideal for reducing EMI in the military, commercial appliances, switching power supplies and telecommunications.
