| Brand Name: | VIIP |
| Model Number: | V18011 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

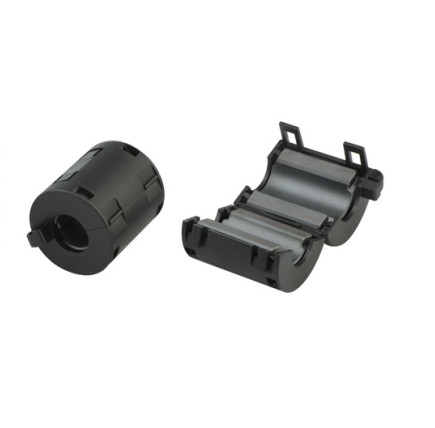

Ferrite RFI Noise Canceller Using 9mm Cores for Suppressing EMI Interference in Mouse Cables (Clamp-on)
Description:
Ferrite Cores:Reduce electro-magnetic interference and improve signal integrity; Easy to install, just clip it on and you will get clearer signal and faster data transmission.
Specifications:
| Place of Origin | Guangdong, China |
| Brand Name | VIIP |
| Model Number |
V18011 |
| Type | Soft |
| Composite | Ferrite Magnet |
| Application | Industrial Magnet |
Specifications:
| No. | Specifications | Fig | Dimensions:mm | Impedance(Ω)min | |||||
| ΦA | B | ΦC | D | E | 25MHz | 100MHz | |||
| 1 | V18001A | 1 | 13±1 | 11.8±1 | 3.5±0.8 | 25.2±1 | 2.5±1 | 135 | 260 |
| 2 | V18001 | 1 | 13±1 | 12±1 | 5±0.8 | 25.2±1 | 2.5±1 | 90 | 190 |
| 3 | V18002 | 1 | 16.5±1 | 14±1 | 7±0.8 | 30±1 | 2.5±1 | 80 | 195 |
| 4 | V18002C | 5 | 20.7±1 | 39.4±1 | 7.2±0.5 | / | / | 120 | 220 |
| 5 | V18003 | 1 | 19.5±1 | 18±1 | 9±0.8 | 35±1 | 5.5±1 | 100 | 240 |
| 6 | V18004 | 1 | 23.5±1 | 22.2±1 | 13.5±0.8 | 36±1 | 10.5±1 | 90 | 190 |
| 7 | V18005 | 2 | 17.5±1 | 19.5±1 | 6.5±0.8 | 32.5±1 | / | 135 | 330 |
| 8 | V18006 | 2 | 22±1 | 23.5±1 | 10±0.8 | 33±1 | / | 90 | 250 |
| 9 | V18007 | 2 | 29±1 | 30±1 | 13±0.8 | 32.2±1 | / | 160 | 280 |
| 10 | V18008 | 3 | 19.5±1 | 23±1 | 8±0.8 | 17±1 | 23±1 | 70 | 140 |
| 11 | V18009 | 3 | 19.5±1 | 23±1 | 8±0.8 | 19.5±1 | 26±1 | 80 | 160 |
| 12 | V18010 | 4 | 15±1 | 14±1 | 7±1 | 18±1 | 22±1 | 45 | 125 |
| 13 | V18011 | 4 | 19.5±1 | / | 9±1 | 32±1 | 36±1 | 105 | 185 |
| 14 | V18011A | 4 | 20.5±1 | 20.5±1 | 11±0.8 | 32±1 | 36±1 | 80 | 155 |
| 15 | V18011B | 3 | 28±1 | 31±1 | 11.4±0.8 | 17.5±1 | 23.5±1 | 75 | 135 |
| 16 | V18012 | 4 | 30±1 | / | 13±0.8 | 34±1 | 39±1 | 125 | 230 |
| 17 | V18013 | 5 | 16.5±1 | 29.5±1 | 5±0.8 | / | / | 80 | 165 |
| 18 | V18017 | 4 | 40.5±1 | / | 17±1 | 49.8±1 | / | 200 | 350 |
| 19 | V18018 | 3 | 29±1 | 33±1 | 15±0.8 | 15.5±1 | 21.5±1 | 55 | 110 |
| 20 | V18019 | 1 | 19.5±1 | 18±1 | 8±0.8 | 35±1 | 5.5±1 | 120 | 175 |
| 21 | V18020 | 3 | 24±1 | 27±1 | 10±0.8 | 13.5±1 | 19±1 | 60 | 110 |
| 22 | V18021 | 1 | 11.7±1 | 10.8±1 | 4±0.8 | 21.4±1 | 2.6±1 | 90 | 160 |
| 23 | V18031 | 2 | 15±1 | 14±1 | 6±1 | 23±1 | / | 80 | 160 |
| 24 | V18032 | 1 | 19.5±1 | 18.0±1 | 5.0±1 | 35±0.8 | / | 190 | 320 |
| 25 | V18033 | 4 | 19.5±1 | / | 8±0.8 | 32±1 | 36±1 | 120 | 175 |
Applications:
7mm / 0.27in (inner diameter): suitable for 0.2 - 0.27in / 5 - 7mm cables
Application: AV cable, Coaxial Audio, Audio Power Line, IP Serial Port Camera etc.
Our Company
1.Customized:We have a professional R&D team; our aims is we won't let customers
spend any extra money.
2.Listed company:National high-tech enterprises, brand assurance, reliable quality, and we have the relevant product certifications.
3.Rectification test: We cooperate with top scientific research laboratories to provide free
EMC rectification technical support, samples; and free conduction test.
4.Scale production:Automation technology, scale production, great price,excellent, service,
FAQ:
Q: Do you offer customized products?
A: Yes, we can develop custom molds to suit your specific needs if you can provide us with samples, drawings or detailed specifications.Q: Are you an ISO 9001 certified manufacturer?
A: Yes, we are a professional EMI filter designer and manufacturer founded in 2008. We have been ISO 9001 certified.
Q: What payment methods do you accept?
A: We accept payment via wire transfer (T/T), Western Union, PayPal, etc.
Q: What certifications do you have?
A: We hold various certifications including ISO 9001, CE, TUV, UL, ROHS, ENEC and REACH certification.
|
|
