| Brand Name: | VIIP |
| Model Number: | V18007 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

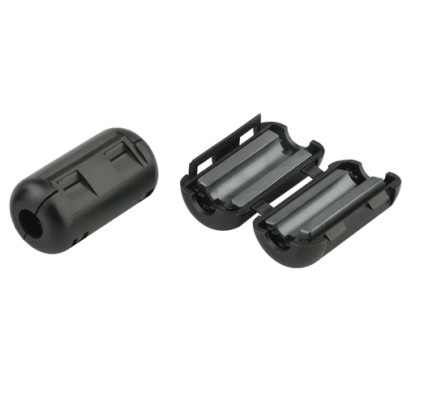

High-Frequency EM Interference Eliminator with 13mm Ferrite Beads for Headphone Cables, Cancels Out RFI/EMI Noises
Description:
100% brand new and high quality.
Mini shape and removable.
Easy to install and convenient to use.
Improve the electromagnetic field around the solenoid, thus avoiding outside interference.
Improve the signal quality and shield radiation.
Doesn't cause distortion of the transmitted signal.
Material: Ni-Zn ferrite Plastic
Color: Black
Products descriptions:
Specifications:
| No. | Specifications | Fig | Dimensions:mm | Impedance(Ω)min | |||||
| ΦA | B | ΦC | D | E | 25MHz | 100MHz | |||
| 1 | V18001A | 1 | 13±1 | 11.8±1 | 3.5±0.8 | 25.2±1 | 2.5±1 | 135 | 260 |
| 2 | V18001 | 1 | 13±1 | 12±1 | 5±0.8 | 25.2±1 | 2.5±1 | 90 | 190 |
| 3 | V18002 | 1 | 16.5±1 | 14±1 | 7±0.8 | 30±1 | 2.5±1 | 80 | 195 |
| 4 | V18002C | 5 | 20.7±1 | 39.4±1 | 7.2±0.5 | / | / | 120 | 220 |
| 5 | V18003 | 1 | 19.5±1 | 18±1 | 9±0.8 | 35±1 | 5.5±1 | 100 | 240 |
| 6 | V18004 | 1 | 23.5±1 | 22.2±1 | 13.5±0.8 | 36±1 | 10.5±1 | 90 | 190 |
| 7 | V18005 | 2 | 17.5±1 | 19.5±1 | 6.5±0.8 | 32.5±1 | / | 135 | 330 |
| 8 | V18006 | 2 | 22±1 | 23.5±1 | 10±0.8 | 33±1 | / | 90 | 250 |
| 9 | V18007 | 2 | 29±1 | 30±1 | 13±0.8 | 32.2±1 | / | 160 | 280 |
| 10 | V18008 | 3 | 19.5±1 | 23±1 | 8±0.8 | 17±1 | 23±1 | 70 | 140 |
| 11 | V18009 | 3 | 19.5±1 | 23±1 | 8±0.8 | 19.5±1 | 26±1 | 80 | 160 |
| 12 | V18010 | 4 | 15±1 | 14±1 | 7±1 | 18±1 | 22±1 | 45 | 125 |
| 13 | V18011 | 4 | 19.5±1 | / | 9±1 | 32±1 | 36±1 | 105 | 185 |
| 14 | V18011A | 4 | 20.5±1 | 20.5±1 | 11±0.8 | 32±1 | 36±1 | 80 | 155 |
| 15 | V18011B | 3 | 28±1 | 31±1 | 11.4±0.8 | 17.5±1 | 23.5±1 | 75 | 135 |
| 16 | V18012 | 4 | 30±1 | / | 13±0.8 | 34±1 | 39±1 | 125 | 230 |
| 17 | V18013 | 5 | 16.5±1 | 29.5±1 | 5±0.8 | / | / | 80 | 165 |
| 18 | V18017 | 4 | 40.5±1 | / | 17±1 | 49.8±1 | / | 200 | 350 |
| 19 | V18018 | 3 | 29±1 | 33±1 | 15±0.8 | 15.5±1 | 21.5±1 | 55 | 110 |
| 20 | V18019 | 1 | 19.5±1 | 18±1 | 8±0.8 | 35±1 | 5.5±1 | 120 | 175 |
| 21 | V18020 | 3 | 24±1 | 27±1 | 10±0.8 | 13.5±1 | 19±1 | 60 | 110 |
| 22 | V18021 | 1 | 11.7±1 | 10.8±1 | 4±0.8 | 21.4±1 | 2.6±1 | 90 | 160 |
| 23 | V18031 | 2 | 15±1 | 14±1 | 6±1 | 23±1 | / | 80 | 160 |
| 24 | V18032 | 1 | 19.5±1 | 18.0±1 | 5.0±1 | 35±0.8 | / | 190 | 320 |
| 25 | V18033 | 4 | 19.5±1 | / | 8±0.8 | 32±1 | 36±1 | 120 | 175 |
Applications:
7mm / 0.27in (inner diameter): suitable for 0.2 - 0.27in / 5 - 7mm cables
Application: AV cable, Coaxial Audio, Audio Power Line, IP Serial Port Camera etc.
|
|
