| Brand Name: | VIIP |
| Model Number: | V18002C |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

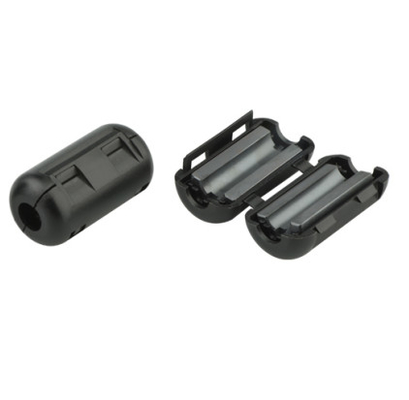

VIIP EM Interference Shielding Unit with Cylindrical Ferrite Ring Cores for 3mm Cables (Clamp on)
Description:
RFI/EMI Noise Filter with 0.27 inch/7mm Inner Diameter:
•Fits cables of 0.2 - 0.27 inch (5 to 7mm) in diameter.
Applications:
•Attach to AC power cords to suppress electromagnetic interference.
•Use with Car DVR cables, Headset cables, Keyboard cables, Mouse cables, USB cables to reduce electromagnetic noise.•Install on Audio cables, Speaker cables and Telephone cables to attenuate radio frequency interference.
Products descriptions:
Specifications:
| No. | Specifications | Fig | Dimensions:mm | Impedance(Ω)min | |||||
| ΦA | B | ΦC | D | E | 25MHz | 100MHz | |||
| 1 | V18001A | 1 | 13±1 | 11.8±1 | 3.5±0.8 | 25.2±1 | 2.5±1 | 135 | 260 |
| 2 | V18001 | 1 | 13±1 | 12±1 | 5±0.8 | 25.2±1 | 2.5±1 | 90 | 190 |
| 3 | V18002 | 1 | 16.5±1 | 14±1 | 7±0.8 | 30±1 | 2.5±1 | 80 | 195 |
| 4 | V18002C | 5 | 20.7±1 | 39.4±1 | 7.2±0.5 | / | / | 120 | 220 |
| 5 | V18003 | 1 | 19.5±1 | 18±1 | 9±0.8 | 35±1 | 5.5±1 | 100 | 240 |
| 6 | V18004 | 1 | 23.5±1 | 22.2±1 | 13.5±0.8 | 36±1 | 10.5±1 | 90 | 190 |
| 7 | V18005 | 2 | 17.5±1 | 19.5±1 | 6.5±0.8 | 32.5±1 | / | 135 | 330 |
| 8 | V18006 | 2 | 22±1 | 23.5±1 | 10±0.8 | 33±1 | / | 90 | 250 |
| 9 | V18007 | 2 | 29±1 | 30±1 | 13±0.8 | 32.2±1 | / | 160 | 280 |
| 10 | V18008 | 3 | 19.5±1 | 23±1 | 8±0.8 | 17±1 | 23±1 | 70 | 140 |
| 11 | V18009 | 3 | 19.5±1 | 23±1 | 8±0.8 | 19.5±1 | 26±1 | 80 | 160 |
| 12 | V18010 | 4 | 15±1 | 14±1 | 7±1 | 18±1 | 22±1 | 45 | 125 |
| 13 | V18011 | 4 | 19.5±1 | / | 9±1 | 32±1 | 36±1 | 105 | 185 |
| 14 | V18011A | 4 | 20.5±1 | 20.5±1 | 11±0.8 | 32±1 | 36±1 | 80 | 155 |
| 15 | V18011B | 3 | 28±1 | 31±1 | 11.4±0.8 | 17.5±1 | 23.5±1 | 75 | 135 |
| 16 | V18012 | 4 | 30±1 | / | 13±0.8 | 34±1 | 39±1 | 125 | 230 |
| 17 | V18013 | 5 | 16.5±1 | 29.5±1 | 5±0.8 | / | / | 80 | 165 |
| 18 | V18017 | 4 | 40.5±1 | / | 17±1 | 49.8±1 | / | 200 | 350 |
| 19 | V18018 | 3 | 29±1 | 33±1 | 15±0.8 | 15.5±1 | 21.5±1 | 55 | 110 |
| 20 | V18019 | 1 | 19.5±1 | 18±1 | 8±0.8 | 35±1 | 5.5±1 | 120 | 175 |
| 21 | V18020 | 3 | 24±1 | 27±1 | 10±0.8 | 13.5±1 | 19±1 | 60 | 110 |
| 22 | V18021 | 1 | 11.7±1 | 10.8±1 | 4±0.8 | 21.4±1 | 2.6±1 | 90 | 160 |
| 23 | V18031 | 2 | 15±1 | 14±1 | 6±1 | 23±1 | / | 80 | 160 |
| 24 | V18032 | 1 | 19.5±1 | 18.0±1 | 5.0±1 | 35±0.8 | / | 190 | 320 |
| 25 | V18033 | 4 | 19.5±1 | / | 8±0.8 | 32±1 | 36±1 | 120 | 175 |
Applications:
7mm / 0.27in (inner diameter): suitable for 0.2 - 0.27in / 5 - 7mm cables
Application: AV cable, Coaxial Audio, Audio Power Line, IP Serial Port Camera etc.
FAQ
About VIIP
Q:Are you manafacturer or trading company?
Shenzhen VIIP is a manafacturer forEMI/EMC Products located in Shenzhen Guangdong China.
About Products
Q:What certification do you have for your products?
We have got CE ROHS FCC and so on.
Q:What is your MOQ?
It depends on different items,we have low MOQ request ,because we have a big warehouse for stock orders.
Q:What shipping ways do you support for delivery?
We support air, sea and railway shipment.
About Sample Order
Q: Can I have a sample order for your products?
A: Yes, we offer product samples, including mixed samples.
|
|
