| Item number | VIP4-2B-20 |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10KHZ-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 110V/250V |
| Rated Current | 20A |
| Environmental Temperature | 40°C |
| Temperature | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1760VDC |
| Line to Ground | 2200VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 5pcs |
| PORT | Shenzhen |
| Lead Time | 5~15 working days |

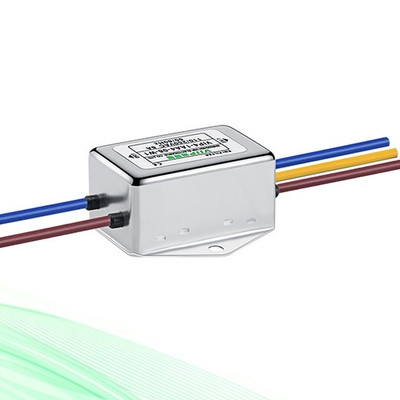

Features:
•220Vac, 50/60Hz input
•Rated current 10A, maximum 15A for 5 minutes
•High EMI noise attenuation up to 50dB from 10KHz to 30MHz
•Rugged metal case for improved shielding and heat dissipation
•Flame retardant and RoHS compliant
•Compact size with mounting holes for easy installation
Applications:
•Treadmills, exercise bikes, elliptical and rowing machines
• Prevent EMI noises generated from AC and electronic components
• Provide clean power source for sensitive control circuits
• Improve equipment performance and service life
• Meet regulatory EMC standards for safe and reliable operationThis EMI filter suits various exercise equipment such as treadmills to suppress power line EMI disturbances. Its metal case provides enhanced shielding and heat dissipation for high power handling capacity. Significant noise attenuation over 10KHz to 30MHz range helps ensure the precision and stability of motor drive and control systems.
Specifications:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] | ||
| screw | terminal block | wires | ||||||
| VIP4-2A-01 | 1A | <0.5mA | Fig 2 | Fig 1 | - - - | - - - | 0 | 95 |
| VIP4-2A-03 | 3A | <0.5mA | Fig 2 | Fig 1 | - - - | - - - | 0 | 95 |
| VIP4-2A-06 | 6A | <0.5mA | Fig 2 | Fig 1 | - - - | - - - | 0 | 95 |
| VIP4-2A-10 | 10A | <1.0mA | Fig4 | Fig 1 | - - - | 0 | - - - | 170 |
| VIP4-2B-06 | 6A | <1.0mA | Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-2B-10 | 10A | <1.0mA | Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-2B-20 | 20A | <1.0mA | Fig4 | Fig 2 | M4 | 0 | - - - | 321 |
| VIP4-2B -50 | 50A | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 1400 |
| VIP4-2B-100 | 100A | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 2000 |
| VIP4-2B-200 | 200A | <2.0mA | Fig 5 | Fig 2 | M8 | - - - | - - - | 3000 |
| VIP4-2C-01 | 1A | <0.5mA | Fig 1 | Fig 3 | M10 | - - - | 0 | 65 |
| VIP4-2C-03 | 3A | <0.5mA | Fig 2 | Fig 3 | M10 | - - - | 0 | 95 |
| VIP4-2C-06 | 6A | <1.0mA | Fig4 | Fig 3 | M4 | 0 | - - - | 175 |
| VIP4-2C-10 | 10A | <1.0mA | Fig4 | Fig 3 | M4 | 0 | - - - | 175 |
| VIP4-2C-20 | 20A | <1.0mA | Fig 5 | Fig 3 | M4 | - - - | - - - | 600 |
| VIP4-2C-50 | 50A | <2.0mA | Fig 5 | Fig 3 | M6 | - - - | - - - | 1600 |
Electrical schematic:
Mechanical Dimension(Unit: mm)
FAQ:
Q1: Do you offer customized product ?
A: Yes, we can develop a new mold at you need if you can provide us with the samples or drawings and specification.
Q2: Are you a factory?
A: Yes, we are an ISO9001 manufacturer, an integration of EMI filter R&D, production and sales since 2009.
Q3: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.
Q4: How about the payment terms?
A: We usually require T/T in advance. If the amount is more than 5000USD, we can negotiate about the payment term,like 70% deposit in advance 30% pay before delivery, etc.
Q5: How about the certificates?
A:ISO9001,CE, TUV, UL, ROHS, CQC, REACH etc.
We offer AC single phase to suit the needs of your industry. We manufacture RFI filters for aerospace, telecom, military and medical applications, as well as a variety of other industries. We are experienced in manufacturing many types of filters like our single phase RFI filters, medical filters, power entry filters, DC filters and three phase RFI filters.Single phase filters from Curtis Industries are used to reduce the EMI in 250VAC applications. Our single phase filters are great for many industries and are available in three different types including general purpose, high performance and wide band. These RFI filters are ideal for reducing EMI in the military, commercial appliances, switching power supplies and telecommunications.
|
|
