CE Metal Case EMI Filter 10A 10KHz-30MHz For Exercise Equipment

CE Metal Case EMI Filter 10A 10KHz-30MHz For Exercise Equipment
CE Metal Case EMI Filter 10A 10KHz-30MHz For Exercise Equipment
CE Metal Case EMI Filter 10A 10KHz-30MHz For Exercise Equipment CE Metal Case EMI Filter 10A 10KHz-30MHz For Exercise Equipment

Large Image :  CE Metal Case EMI Filter 10A 10KHz-30MHz For Exercise Equipment

Product Details:
Place of Origin: China
Brand Name: VIIP
Certification: CE UL TUV ROHS REACH
Model Number: VIP4-2B-10
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs within 10-15 days

CE Metal Case EMI Filter 10A 10KHz-30MHz For Exercise Equipment

Description
Type: AC Single Filter Transfer Function: Low Pass
Package Type: Surface Mount CASE: METAL
Application: Switch-mode Power Supplies Temperature Range: 25 / 085 / 21
High Light:

CE EMI Filter 10A

,

EMI Filter 10A 30MHz

,

AC EMI Filter 90dB

10A Metal Case EMI Filter,10KHz-30MHz,For Exercise Equipment

Quick Detail:



Item number VIP4-2B-10
Package Type Surface Mount
Nominal Center Frequency 10KHZ-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 110V/250V
Rated Current 10A
Original of Country China
Temperature 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1760VDC
Line to Ground 2200VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 5pcs
Packing neutral packing
Lead Time 5~15 working days



Description:

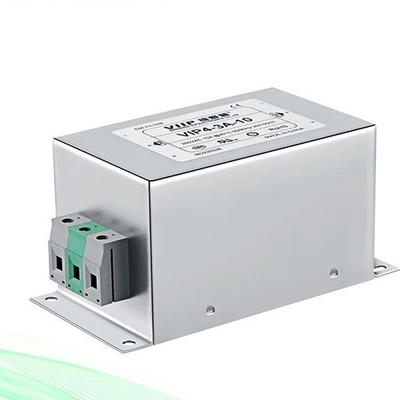

This is a 10A EMI power line filter housed in a metal case. It is designed to provide EMI filtering solutions for exercise equipment such as treadmills over the frequency range of 10KHz to 30MHz.



Features:
•220Vac, 50/60Hz input
•Rated current 10A, maximum 15A for 5 minutes
•High EMI noise attenuation up to 50dB from 10KHz to 30MHz
•Rugged metal case for improved shielding and heat dissipation
•Flame retardant and RoHS compliant
•Compact size with mounting holes for easy installation



Applications:
•Treadmills, exercise bikes, elliptical and rowing machines
• Prevent EMI noises generated from AC and electronic components
• Provide clean power source for sensitive control circuits
• Improve equipment performance and service life
• Meet regulatory EMC standards for safe and reliable operationThis EMI filter suits various exercise equipment such as treadmills to suppress power line EMI disturbances. Its metal case provides enhanced shielding and heat dissipation for high power handling capacity. Significant noise attenuation over 10KHz to 30MHz range helps ensure the precision and stability of motor drive and control systems.



Specifications:

Part No. Rated Current [A] 250VAC/50Hz @ 20C
Leakage Current [mA]
Physical Dimensions Electrical Schematics Terminals Weight [g]
screw terminal block wires
VIP4-1A-01 1A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP4-1A-03 3A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP4-1A-06 6A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP4-1A-10 10A <0.5mA Fig 2 Fig 1 - - - 0 - - - 75
VIP4-1B-06 6A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 140
VIP4-1B-10 10A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 170
VIP4-1B-20 20A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 170
VIP4-1B-30 30A <1.0mA Fig 5 Fig 2 M6 - - - - - - 320
VIP4-1B-50 50A <2.0mA Fig 5 Fig 2 M6 - - - - - - 600
VIP4-1B-100 100A <2.0mA Fig 5 Fig 2 M8 - - - - - - 1380
VIP4-1B-150 150A <2.0mA Fig 5 Fig 2 M10 - - - - - - 1900
VIP4-1B-200 200A <2.0mA Fig 5 Fig 2 M10 - - - - - - 1900
