| Brand Name: | VIIP |
| Model Number: | VIP4-2B-20 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 33*33*18 |
| Payment Terms: | T/T, Western Union |
| Item number | VIP4-2B-20 |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10KHZ-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 110V/250V |
| Rated Current | 20A |
| Environmental Temperature | 40°C |
| Temperature | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1760VDC |
| Line to Ground | 2200VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 5pcs |
| PORT | Shenzhen |
| Lead Time | 5~15 working days |
Description:

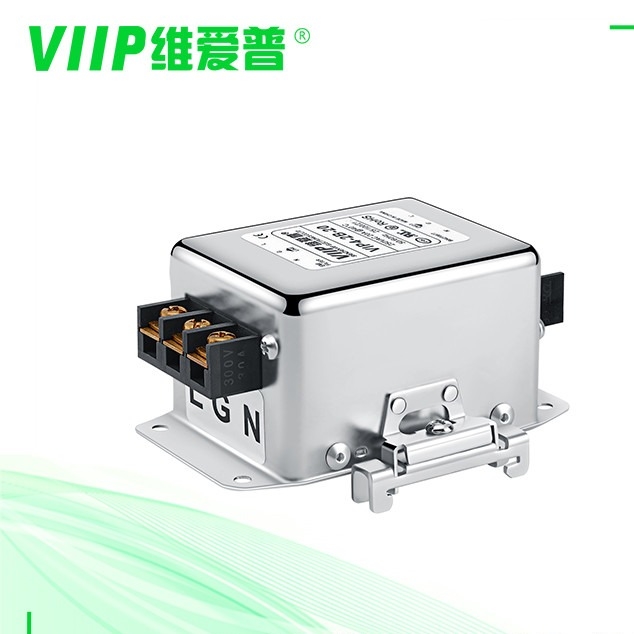

This is a 20A single phase EMI filter featuring block terminal and copper bar for AC power applications. It provides enhanced performance for suppressing power line EMI noise disturbances.
Features:
•220Vac,50/60Hz,20A maximum rated current
•High attenuation up to 50dB from 10KHz to 30MHz
•Block terminal and copper bar for max. 30mm2 cable
•Flame retardant and RoHS compliant
•Compact case with mounting holes for easy installation
Specifications:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] | Physical Dimensions | Electrical Schematics | Terminals | Weight [g] | ||
| screw | terminal block | wires | ||||||
| VIP4-1A-01 | 1A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-03 | 3A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-06 | 6A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-10 | 10A | <0.5mA | Fig 2 | Fig 1 | - - - | 0 | - - - | 75 |
| VIP4-1B-06 | 6A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 140 |
| VIP4-1B-10 | 10A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-20 | 20A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-30 | 30A | <1.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 320 |
| VIP4-1B-50 | 50A | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 600 |
| VIP4-1B-100 | 100A | <2.0mA | Fig 5 | Fig 2 | M8 | - - - | - - - | 1380 |
| VIP4-1B-150 | 150A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
| VIP4-1B-200 | 200A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
Our Company
1. Customized:We have a professional R&D team; our aims is we won't let customers
spend any extra money.
2. Listed company:National high-tech enterprises, brand assurance, reliable quality, and we have the relevant product certifications.
3. Rectification test: We cooperate with top scientific research laboratories to provide free
EMC rectification technical support, samples; and free conduction test.
4. Scale production:Automation technology, scale production, great price,excellent, service,
We offer AC single phase to suit the needs of your industry. We manufacture RFI filters for aerospace, telecom, military and medical applications, as well as a variety of other industries. We are experienced in manufacturing many types of filters like our single phase RFI filters, medical filters, power entry filters, DC filters and three phase RFI filters.Single phase filters from Curtis Industries are used to reduce the EMI in 250VAC applications. Our single phase filters are great for many industries and are available in three different types including general purpose, high performance and wide band. These RFI filters are ideal for reducing EMI in the military, commercial appliances, switching power supplies and telecommunications.
|
