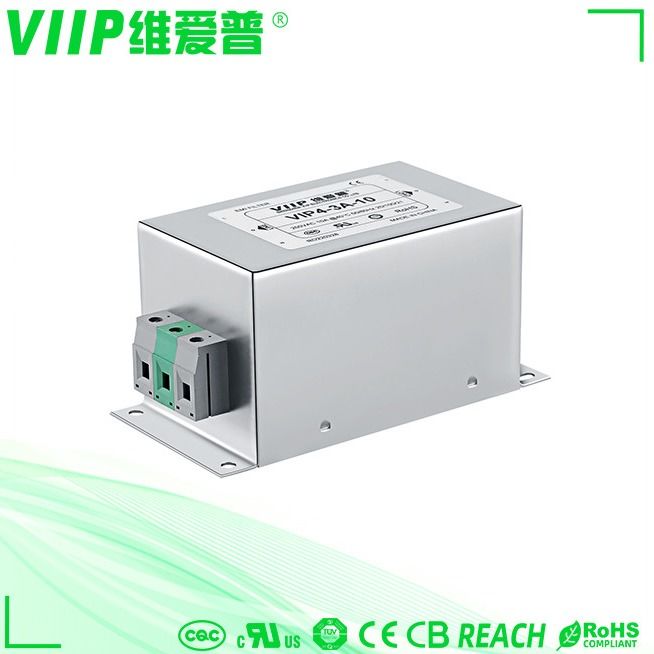

20A Single Phase EMI Filter For Audio and Video Equipment

20A Single Phase EMI Filter For Audio and Video Equipment
20A Single Phase EMI Filter For Audio and Video Equipment
20A Single Phase EMI Filter For Audio and Video Equipment 20A Single Phase EMI Filter For Audio and Video Equipment

Large Image :  20A Single Phase EMI Filter For Audio and Video Equipment

Product Details:
Place of Origin: China
Brand Name: VIIP
Certification: CE UL TUV ROHS REACH
Model Number: VIP4-2B-20
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs within 10-15 days

20A Single Phase EMI Filter For Audio and Video Equipment

Description
Type: AC Single Filter Transfer Function: Low Pass
CASE: METAL Application: Audio And TV Receivers
Temperature Range: 25 / 085 / 21 MOQ: 1PCS
High Light:

Single Phase EMI Filter 20A

,

Video Equipment Single Phase EMI Filter

,

60HZ AC EMI Filter

20A Single Phase EMI Filter,For Audio and Video Equipment

Quick Detail

Item numberVIP4-2B-10
Package TypeSurface Mount
Nominal Center Frequency10KHZ-30MHZ
Insertion Loss60~90dB
Input Impedance50Ω
Rated Voltage110V/250V
Rated Current10A
Original of CountryChina
Temperature25 / 085 / 21
Operating Frequency50/60HZ
Line to Line1760VDC
Line to Ground2200VDC
Maximum Leakage Current250VAC/60HZ 0.8mA Max
MOQ5pcs
Packingneutral packing
Lead Time5~15 working days


 Features:
•220Vac,50/60Hz,20A maximum rated current
•High EMI noise attenuation up to 50dB from 10KHz to 30MHz
•Compact case with mounting holes for space-saving installation
•Flame retardant, halogen-free and RoHS compliant

Applications:
•Audio amplifiers, AV receivers and sound systems
•Televisions, monitors and media players
•Prevent power line EMI noises generated from power supply
•Provide clean power source for sensitive audio/video circuits
•Improve the signal stability and sound/image quality
•Meet regulatory EMC standards for electronic equipmentsThis EMI power line filter is ideal for various audio and video devices to reduce electromagnetic disturbances introduced by AC power supplies. It can handle 20A current and achieves high noise attenuation over a wide frequency range of 10KHz to 30MHz.




Specifications:


Part No.Rated Current [A]250VAC/50Hz @ 20C
Leakage Current [mA]
Physical DimensionsElectrical SchematicsTerminalsWeight [g]
screwterminal blockwires
VIP4-1A-011A<0.5mAFig 1Fig 1- - -- - -065
VIP4-1A-033A<0.5mAFig 1Fig 1- - -- - -065
VIP4-1A-066A<0.5mAFig 1Fig 1- - -- - -065
VIP4-1A-1010A<0.5mAFig 2Fig 1- - -0- - -75
VIP4-1B-066A<1.0mAFig 3/Fig4Fig 2M40- - -140
VIP4-1B-1010A<1.0mAFig 3/Fig4Fig 2M40- - -170
VIP4-1B-2020A<1.0mAFig 3/Fig4Fig 2M40- - -170
VIP4-1B-3030A<1.0mAFig 5Fig 2M6- - -- - -320
VIP4-1B-5050A<2.0mAFig 5Fig 2M6- - -- - -600
VIP4-1B-100100A<2.0mAFig 5Fig 2M8- - -- - -1380
VIP4-1B-150150A<2.0mAFig 5Fig 2M10- - -- - -1900
VIP4-1B-200200A<2.0mAFig 5Fig 2M10- - -- - -1900
