Product Details:
|
| Rated Current: | 6A | Type: | AC EMI Filter |
|---|---|---|---|
| Nominal Center Frequency: | 150KHZ~30MHZ | Line To Line: | 1760VDC |
| Application: | Medical Equipments | Operating Frequency: | 50/60HZ |
| High Light: | 220Vac AC EMI Filter,110V Medical EMI Filter,DC Power Supply Medical EMI Filter |
||
Technical Specification:
| Item | Power line Filter |
| Model | Power line Filter VIP4 |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 150K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 110V/250V |
| Rated Current | 0.5~300A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1760VDC |
| Line to Ground | 2200VDC |
| Maximum Leakage Current | 250VAC/60HZ 1.0mA Max |
| MOQ | 5pcs |
| Port | Shenzhen |
| Lead Time | 5~15 working days |
Description:

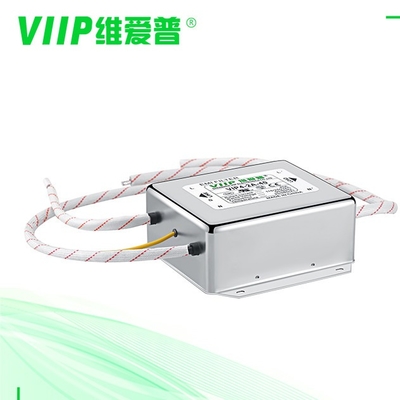

This is a medical grade EMI filter designed for AC power supplies and DC power systems operating at 110V/220Vac. It provides enhanced EMI filtering performance to meet the stringent requirements of medical applications.
Features:
•110Vac/220Vac,50/60Hz input
•Rated current up to 20A
•Specialized EMI noise filtering for medical power supply
•Attenuation up to 50dB for radiated electric field
•Compact case with mounting holes for easy installation
•Flame retardant, halogen-free and RoHS compliant
Applications:
•Medical power supply for X-ray, MRI, CT and dialysis equipment
•DC power systems for surgical tools, beds and monitoring devices
•Prevent EMI noises generated from power electronics
•Ensure the stability and safety of medical equipment
•Meet international medical EMC standards This EMI power line filter suits various medical AC/DC power supply and critical life support systems. It provides specialized filtering performance to reduce electromagnetic interferences that may affect the functionality and reliability of medical devices.
Specifications for single phase emi filters:
General purpose AC filters with good attenuation frequency range 150KHz-30MHz
VIP4 -1A and VIP4 -1B series are one - stage commonmode filters with almost the same filtering fleet, only slight differen different current
Compact structure, high performance-cost ratio, easy to install,safe and reliable
High voltage versions above 380VAC are also available
tabulates
Optional medical versions(H type)
Custom specific versions are available on request
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] | ||
| screw | terminal block | wires | ||||||
| VIP1-1A-01 | 1A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP1-1A-03 | 3A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP1-1A-06 | 6A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP1-1A-10 | 10A | <0.5mA | Fig 2 | Fig 1 | - - - | 0 | - - - | 75 |
| VIP4-1B-06 | 6A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 140 |
| VIP4-1B-10 | 10A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-20 | 20A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-30 | 30A | <1.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 320 |
| VIP4-1B-50 | SOA | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 600 |
| VIP4-1B-100 | 100A | <2.0mA | Fig 5 | Fig 2 | M8 | - - - | - - - | 1380 |
| VIP4-1B-150 | 150A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
| VIP4-1B-200 | 200A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
Sample
Sample Fee: Negotiate
Sample Time: 2~5 days
Payment
---Payment terms: Western Union, T/T
---Please remember to leave the correct contact information for delivery.
FAQ
About VIIP
Q:Are you manafacturer or trading company?
Shenzhen VIIP is a manafacturer forEMI/EMC Products located in Shenzhen Guangdong China.
About Products
Q:What certification do you have for your products?
We have got CE ROHS FCC and so on.
Q:What is your MOQ?
It depends on different items,we have low MOQ request ,because we have a big warehouse for stock orders.
Q:What shipping ways do you support for delivery?
We support air, sea and railway shipment.
About Sample Order
Q: Can I have a sample order for your products?
A: Yes, we offer product samples, including mixed samples.
About Service
Q: Which payments are acceptable?
A:We accept T/T, Paypal, Western Union ect.
Q: Can I visit your company and factory in China?
A: Sure. We are happy to receive you in Shenzhen, China and show you around our workplaces.
EMI Filters and RFI Filters - Single Phase
VIIP’s single phase industrial EMI filters and RFI filters attenuate electrical noise generated from industrial, telecommunication, commercial, military and medical electrical and electronic equipment.
These EMI & RFI filters attenuate mains-borne electromagnetic interference from 100 kHz upwards to very high frequencies. VIIP's EMI filters and RFI filters are used to bring electrical and electronic products into compliance with National (FCC) and International EMC standards, such as CE, VDE and others.
These EMI & RFI filters also protect the sensitive electronic circuits in the equipment from extraneous surges, spikes, ESD, and interference in the environment. The filters are available off-the- shelf from 1 A to 100 A.
However, these designs can be easily modified to meet your specific high current needs up to 1,000 A.
Please contact US for your special needs.
