| Brand Name: | VIIP |
| Model Number: | VIP3-41A-50 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 33*33*18 |
| Payment Terms: | T/T, Western Union |

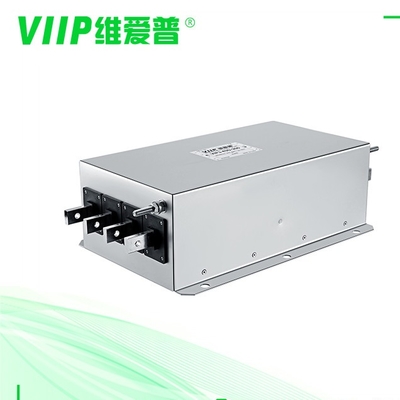

TUV Certified 3 Phase EMI Filter,440Vac,For Automation & Instrumentation
Quick Detail:
Description:
This is a 3 phase 440Vac EMI filter that has earned TUV certification. It is designed to provide EMI filtering solutions for automation equipment and instrumentation.
Features:
•3 phase 440Vac,50/60Hz input
•TUV certified for safety and performance
•High attenuation of conducted EMI noises from 500KHz up to 30MHz
•Rated current up to 100A per phase
•Compact case with mounting holes for easy installation
•Flame retardant and RoHS compliantApplications:
•PLC, HMI and industrial computers
•AC/DC motor drive and servo drive
•Robotics and CNC machines
•Laser marking and coding equipment
•Prevent EMI interferences generated from variable frequency drives and power electronics
•Provide a clean power source for sensitive control electronics
•Improve the stability and precision of instrumentation
•Meet international EMC standards for reliable and safe operationThis TUV certified EMI filter suits various automation equipment and instrumentation to suppress power line disturbances. Its high power handling capacity and excellent filtering performance meet the challenges posted by modern power electronics and drives. TUV certification ensures its safe and reliable operation in the intended applications.
Specifications:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] |
| VIP3-41A-06 | 6A | <2.0mA | Fig 1 | Fig 1 | M4 | 400 |
| VIP3-41A-10 | 10A | <2.0mA | Fig 1 | Fig 1 | M4 | 400 |
| VIP3-41A-20 | 20A | <2.0mA | Fig 1 | Fig 1 | M4 | 600 |
| VIP3-41A-30 | 30A | <4.5mA | Fig 1 | Fig 1 | M6 | 600 |
| VIP3-41A-40 | 40A | <4.5mA | Fig 2 | Fig 1 | M6 | 1000 |
| VIP3-41A-50 | 50A | <4.5mA | Fig 2 | Fig 1 | M6 | 1500 |
| VIP3-41A-80 | 80A | <8.0mA | Fig 2 | Fig 1 | M8 | 3100 |
| VIP3-41A-100 | 100A | <8.0mA | Fig 2 | Fig 1 | M8 | 3100 |
| VIP3-41A-150 | 150A | <8.0mA | Fig 2 | Fig 1 | M10 | 4000 |
| VIP3-41A-200 | 200A | <20.0mA | Fig 2 | Fig 1 | M10 | 4000 |
Applications:
--LED lighting equipment
--Computer supporting equipment
--Financial equipment
--Testing and measuring instruments
--Household electrical equipment
--Fitness equipment
--Mechanical and electrical products
--Medical equipment
--Medical beauty instruments
--New energy vehicles
Our Advantages
(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.
(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.
(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.
(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer Requirements
|
|
