Product Details:
|
| Transfer Function: | AC 3 Phase Emi Filter | Insertion Loss: | At 50OHM System |
|---|---|---|---|
| Application: | Medical Equipments | Temperature Range: | 25 / 085 / 21 |
| Type: | EMI Filter | Rated Voltage: | 250V/275/440V/480VAC |
| High Light: | Packaging Machinery EMI Noise Filter,Ultra Low Leakage EMI Noise Filter,AC EMI Filter 440Vac |
||

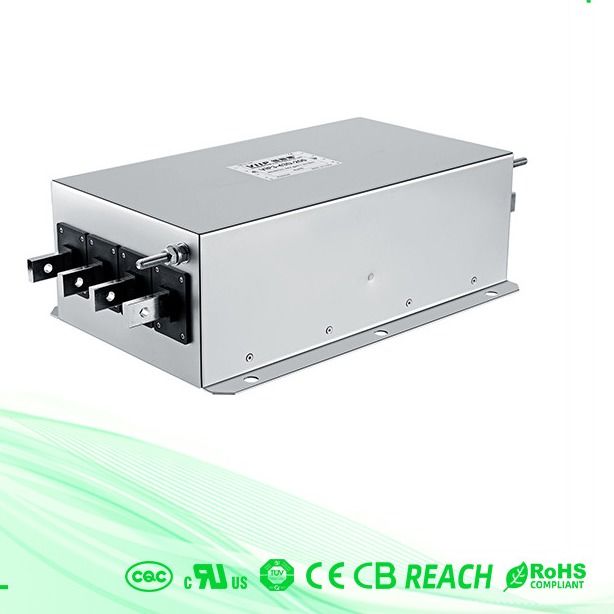

3 Phase AC Emi Filter 440V Low Leakage Current for package machine
Description:
This is a 3 phase high performance EMI noise filter designed for packaging equipment operating at 440Vac. It features ultra-low leakage current to ensure the safety of operators.
Features:
•3 phase 440Vac EMI noise filter
•High attenuation over a wide frequency range of 1MHz to 10GHz
•Ultra-low leakage current <0.5mA for maximum safety
•High rated current up to 100A per phase
•Compact size for space-saving
•Aluminum casing with mounting holes for easy installationApplications:
•Packaging machinery: carton former, wrapping machine, filling machine, sealing machine, labeling machine, etc.
•Prevent electromagnetic interferences generated from VFDs, power electronics, and motor wires
•Provide a clean power source for sensitive control electronics
•Improve the stability and precision of packaging equipmentThis high performance EMI filter is ideal for packaging industry to suppress power line noises generated from variable frequency drives and other power electronics. Its 3 phase design and high power handling capability meet the requirement of most large machinery. The ultra-low leakage current effectively reduces safety hazards for operators.Small in size but powerful in performance, this EMI noise filter is a perfect solution for OEM packaging machine manufacturers and users to improve their equipment performance and meet the EMC compliance standards. Please feel free to contact us for more details.
Description:
Specifications:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] |
| VIP3-41A-06 | 6A | <2.0mA | Fig 1 | Fig 1 | M4 | 400 |
| VIP3-41A-10 | 10A | <2.0mA | Fig 1 | Fig 1 | M4 | 400 |
| VIP3-41A-20 | 20A | <2.0mA | Fig 1 | Fig 1 | M4 | 600 |
| VIP3-41A-30 | 30A | <4.5mA | Fig 1 | Fig 1 | M6 | 600 |
| VIP3-41A-40 | 40A | <4.5mA | Fig 2 | Fig 1 | M6 | 1000 |
| VIP3-41A-50 | 50A | <4.5mA | Fig 2 | Fig 1 | M6 | 1500 |
| VIP3-41A-80 | 80A | <8.0mA | Fig 2 | Fig 1 | M8 | 3100 |
| VIP3-41A-100 | 100A | <8.0mA | Fig 2 | Fig 1 | M8 | 3100 |
| VIP3-41A-150 | 150A | <8.0mA | Fig 2 | Fig 1 | M10 | 4000 |
| VIP3-41A-200 | 200A | <20.0mA | Fig 2 | Fig 1 | M10 | 4000 |
Applications:
1. Single-phase power supplies, switch-mode power supplies
2. Small to medium-sized machines and household equipment
3. Portable electrical and electronic equipment
4. Test and measurement equipment
5. Safety tester
6. Automated optical inspection (AOI)
7. SMPS
