SMPS AC Single Phase RFI Filter , EMC EMI RFI Mains Filter 150KHZ

SMPS AC Single Phase RFI Filter , EMC EMI RFI Mains Filter 150KHZ
SMPS AC Single Phase RFI Filter , EMC EMI RFI Mains Filter 150KHZ
SMPS AC Single Phase RFI Filter , EMC EMI RFI Mains Filter 150KHZ SMPS AC Single Phase RFI Filter , EMC EMI RFI Mains Filter 150KHZ

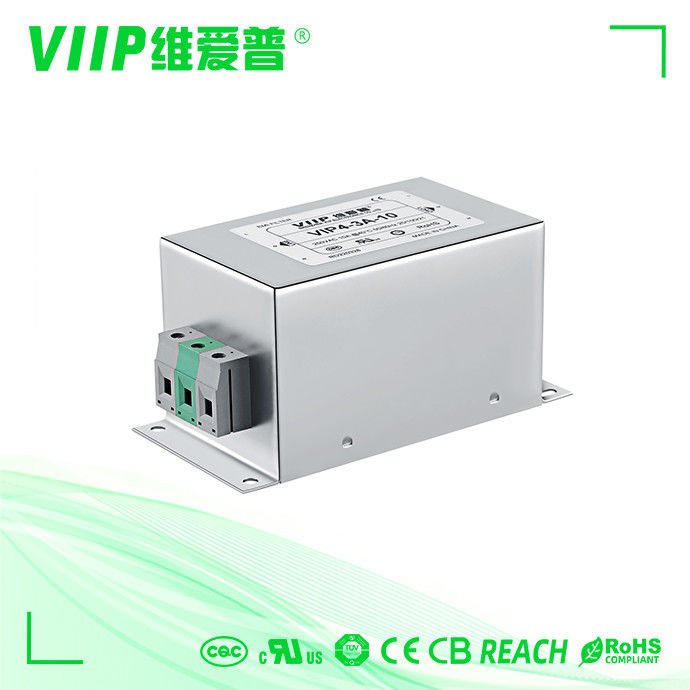

Large Image :  SMPS AC Single Phase RFI Filter , EMC EMI RFI Mains Filter 150KHZ

Product Details:
Place of Origin: China
Brand Name: VIIP
Certification: CE TUV UL ROHS REACH
Model Number: VIP4-1A-10
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs within 10-15 days

SMPS AC Single Phase RFI Filter , EMC EMI RFI Mains Filter 150KHZ

Description
Rated Current: 10A Type: AC EMI Filter
Nominal Center Frequency: 150KHZ~30MHZ Line To Line: 1760VDC
Application: Medical Equipments Operating Frequency: 50/60HZ
High Light:

150KHZ Single Phase RFI Filter

,

SMPS RFI Mains Filter

,

AC EMC EMI Filter

SMPS AC Single Phase RFI Filter RFI Mains Filter EMC EMI Filter

Quick Detail:



Technical Specification:

Item Power line Filter
Model Power line Filter VIP4
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 150K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 110V/250V
Rated Current 0.5~300A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1760VDC
Line to Ground 2200VDC
Maximum Leakage Current 250VAC/60HZ 1.0mA Max
MOQ 5pcs
Port Shenzhen
Lead Time 5~15 working days









General purpose single phase AC power line filters ,easy to install ,available for



--Electrical and electronic equipment



-- Medical equipment



-- Building automation



-- Office automation and datacom equipment







Specifications for single phase emi filters:



General purpose AC filters with good attenuation frequency range 150KHz-30MHz



VIP4 -1A and VIP4 -1B series are one - stage commonmode filters with almost the same filtering fleet, only slight differen different current



Compact structure, high performance-cost ratio, easy to install,safe and reliable



High voltage versions above 380VAC are also available



tabulates







  1. Rated current: 0.5A-300A
  2. Various terminals: wire, solder lug, stud, terminal block ,etc
  3. Optional medical versions(H type)

  4. Custom specific versions are available on request

Part No. Rated Current [A] 250VAC/50Hz @ 20C
Leakage Current [mA]
Physical Dimensions Electrical Schematics Terminals Weight [g]
screw terminal block wires
VIP1-1A-01 1A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP1-1A-03 3A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP1-1A-06 6A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP1-1A-10 10A <0.5mA Fig 2 Fig 1 - - - 0 - - - 75
VIP4-1B-06 6A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 140
VIP4-1B-10 10A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 170
VIP4-1B-20 20A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 170
VIP4-1B-30 30A <1.0mA Fig 5 Fig 2 M6 - - - - - - 320
VIP4-1B-50 SOA <2.0mA Fig 5 Fig 2 M6 - - - - - - 600
VIP4-1B-100 100A <2.0mA Fig 5 Fig 2 M8 - - - - - - 1380
VIP4-1B-150 150A <2.0mA Fig 5 Fig 2 M10 - - - - - - 1900
VIP4-1B-200 200A <2.0mA Fig 5 Fig 2 M10 - - - - - - 1900




  •

Sample

Sample Fee: Negotiate

Sample Time: 2~5 days



Payment

---Payment terms: Western Union,  T/T

---Please remember to leave the correct contact information for delivery.

     We offer AC single phase to suit the needs of your industry. We manufacture RFI filters for aerospace, telecom, military and medical applications, as well as a variety of other industries. We are experienced in manufacturing many types of filters like our single phase RFI filters, medical filters, power entry filters, DC filters and three phase RFI filters.Single phase filters from Curtis Industries are used to reduce the EMI in 250VAC applications. Our single phase filters are great for many industries and are available in three different types including general purpose, high performance and wide band. These RFI filters are ideal for reducing EMI in the military, commercial appliances, switching power supplies and telecommunications.
