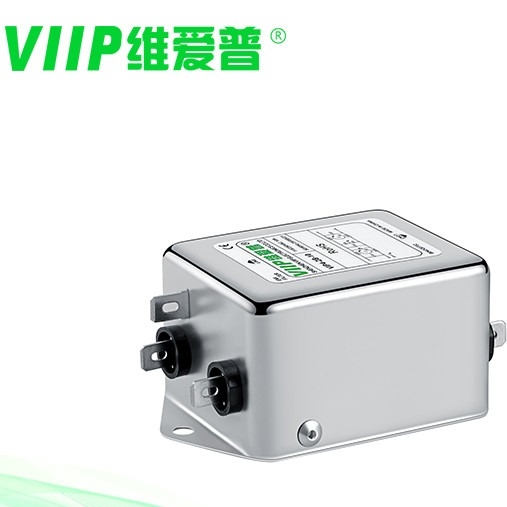

Metal Case AC EMI Filter 10khz-30mhz 10a For Treadmill Equipment

Metal Case AC EMI Filter 10khz-30mhz 10a For Treadmill Equipment
Metal Case AC EMI Filter 10khz-30mhz 10a For Treadmill Equipment
Metal Case AC EMI Filter 10khz-30mhz 10a For Treadmill Equipment Metal Case AC EMI Filter 10khz-30mhz 10a For Treadmill Equipment

Large Image :  Metal Case AC EMI Filter 10khz-30mhz 10a For Treadmill Equipment

Product Details:
Place of Origin: China
Brand Name: VIIP
Certification: CE UL TUV ROHS REACH
Model Number: VIP4-2B-10
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs within 10-15 days

Metal Case AC EMI Filter 10khz-30mhz 10a For Treadmill Equipment

Description
Type: AC Single Filter Transfer Function: Low Pass
Package Type: Surface Mount CASE: METAL
Application: Switch-mode Power Supplies Temperature Range: 25 / 085 / 21
High Light:

30mhz 10a AC EMI Filter

,

AC EMI Filter 10khz

,

Treadmill Equipment AC Low Pass Filter

Metal Case AC EMI Filter 10a 10khz-30mhz For Treadmill Equipment

Quick Detail:



Item number VIP4-2B-10
Package Type Surface Mount
Nominal Center Frequency 10KHZ-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 110V/250V
Rated Current 10A
Original of Country China
Temperature 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1760VDC
Line to Ground 2200VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 5pcs
Packing neutral packing
Lead Time 5~15 working days







Features:



-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device



-- Various terminal options allow you to select



-- There are a variety of parts and combinations to meet different customer's EMC tests.



-- Customized products according to customer's requirements.



Specifications:

Part No. Rated Current [A] 250VAC/50Hz @ 20C
Leakage Current [mA]
Physical Dimensions Electrical Schematics Terminals Weight [g]
screw terminal block wires
VIP4-1A-01 1A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP4-1A-03 3A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP4-1A-06 6A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP4-1A-10 10A <0.5mA Fig 2 Fig 1 - - - 0 - - - 75
VIP4-1B-06 6A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 140
VIP4-1B-10 10A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 170
VIP4-1B-20 20A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 170
VIP4-1B-30 30A <1.0mA Fig 5 Fig 2 M6 - - - - - - 320
VIP4-1B-50 50A <2.0mA Fig 5 Fig 2 M6 - - - - - - 600
VIP4-1B-100 100A <2.0mA Fig 5 Fig 2 M8 - - - - - - 1380
VIP4-1B-150 150A <2.0mA Fig 5 Fig 2 M10 - - - - - - 1900
VIP4-1B-200 200A <2.0mA Fig 5 Fig 2 M10 - - - - - - 1900



Our service

Sample

Sample Fee: Negotiate

Sample Time: 3~5 working days



Payment

---Payment terms: Western Union, T/T,Paypal

---Please remember to leave the correct contact information for delivery.



     We offer AC single phase to suit the needs of your industry. We manufacture RFI filters for aerospace, telecom, military and medical applications, as well as a variety of other industries. We are experienced in manufacturing many types of filters like our single phase RFI filters, medical filters, power entry filters, DC filters and three phase RFI filters.Single phase filters from Curtis Industries are used to reduce the EMI in 250VAC applications. Our single phase filters are great for many industries and are available in three different types including general purpose, high performance and wide band. These RFI filters are ideal for reducing EMI in the military, commercial appliances, switching power supplies and telecommunications.







  •
