AC EMI Filter

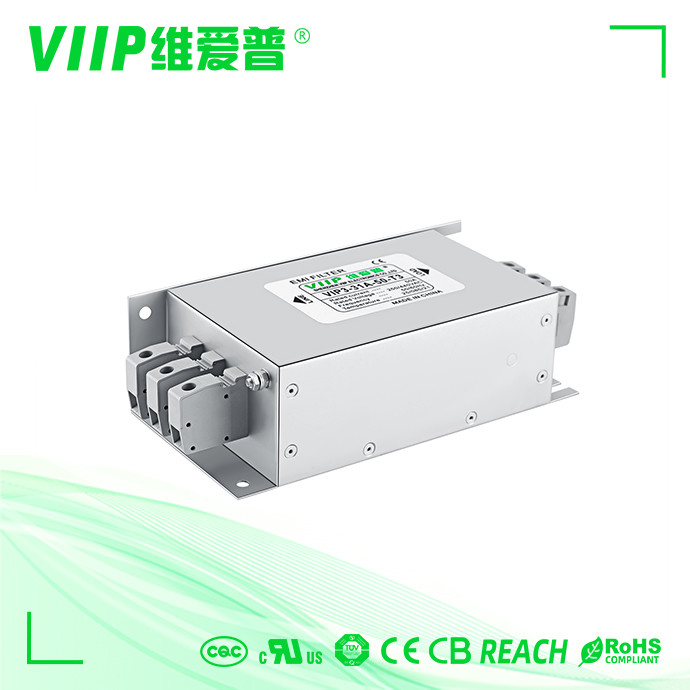

TUV Certified 440VAC Input EMC EMI Filter For Automation Equipment

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

Contact Now

TUV Certified 440VAC Input EMC EMI Filter For Automation Equipment

Brand Name:	VIIP
Model Number:	VIP3-41A-50
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL ROHS REACH

Input Impedance:

500VDC/100MOHM MIN

Rated Voltage:

110/250VAC

Rated Current:

Type:

EMC Filter

Insertion Loss:

60dB-90dB

Certification:

CE ROHS,CE CQC,UL.TUL

Supply Ability:

2000 pcs within 10-15 days

Highlight:

TUV Certified EMC EMI Filter

440VAC Input EMC EMI Filter

Automation Equipment AC EMI Filter

Product Description

TUV Certified 440VAC Input EMC EMI Filter For Automation Equipment

Quick Detail:

Model Number:VIP3-41A-50
Type:EMI Filter
Place of Origin:China
Brand Name: VIIP
Transfer Function:Low Pass
Nominal Center Frequency:150KHz-30MHz
Input Impedance:50Ω
Insertion Loss:20~100dB
Item:Low Pass EMI Filter
Rated Voltage:440V
Rated Current:0.5A-800A
Environmental Temp:50°C
Temperature Range:25 / 085 / 21
Operating Frequency:50/60HZ
Line to Ground:2250VDC or 2000VAC
Certificate:UL TUV ISO9001 CE ROHS

Description:

suitable for three phase three line power supply

compact structure ,simple and time-saving installation,specially suitable for applications with limited space ,highly cost effective

Specifications:

Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals	Weight [g]
VIP3-41A-06	6A	<2.0mA	Fig 1	Fig 1	M4	400
VIP3-41A-10	10A	<2.0mA	Fig 1	Fig 1	M4	400
VIP3-41A-20	20A	<2.0mA	Fig 1	Fig 1	M4	600
VIP3-41A-30	30A	<4.5mA	Fig 1	Fig 1	M6	600
VIP3-41A-40	40A	<4.5mA	Fig 2	Fig 1	M6	1000
VIP3-41A-50	50A	<4.5mA	Fig 2	Fig 1	M6	1500
VIP3-41A-80	80A	<8.0mA	Fig 2	Fig 1	M8	3100
VIP3-41A-100	100A	<8.0mA	Fig 2	Fig 1	M8	3100
VIP3-41A-150	150A	<8.0mA	Fig 2	Fig 1	M10	4000
VIP3-41A-200	200A	<20.0mA	Fig 2	Fig 1	M10	4000

Applications:

--LED lighting equipment
--Computer supporting equipment
--Financial equipment
--Testing and measuring instruments
--Household electrical equipment
--Fitness equipment
--Mechanical and electrical products
--Medical equipment
--Medical beauty instruments
--New energy vehicles

TUV Certified 440VAC Input EMC EMI Filter For Automation Equipment 0

TUV Certified 440VAC Input EMC EMI Filter For Automation Equipment 1

Our Advantages

(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.

(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.

(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.

(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer Requirements
