EMC EMI Filter
>

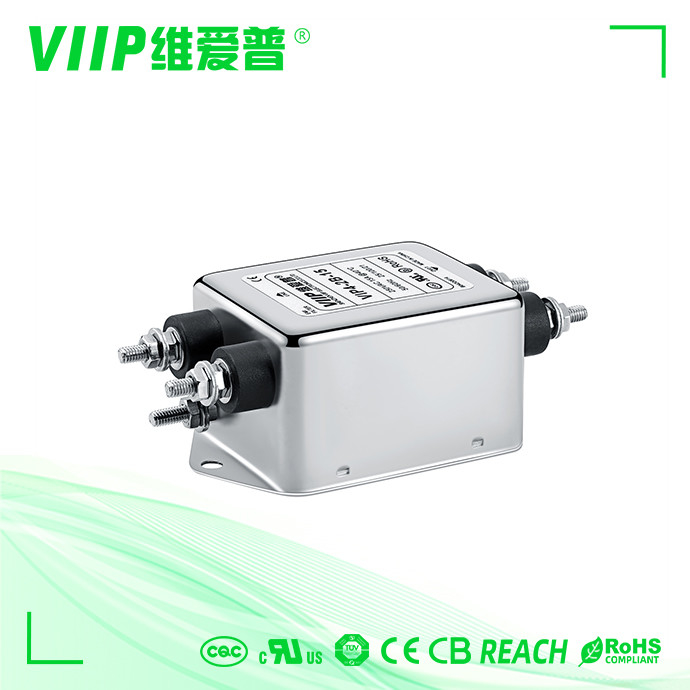

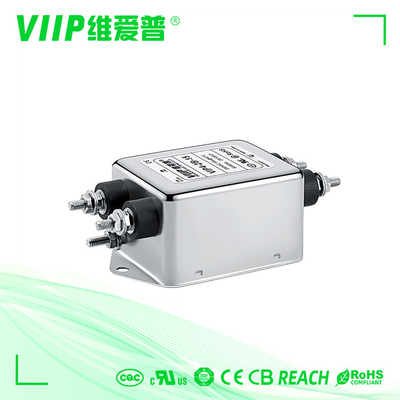

15A 50 / 60HZ Electrical Power EMC EMI Filter For CNC Machines

15A 50 / 60HZ Electrical Power EMC EMI Filter For CNC Machines

Brand Name: VIIP WeiAiPu
Model Number: VIP4-2B-15
MOQ: 1 PCS
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
CE TUV UL CQC
Type:
EMI EMC Filter
Application:
CNC Machines
Certification:
CE ROHS,ISO; TUV
Line To Line:
1760VDC
Rated Current:
10A
Temperature Range:
25 / 085 / 21
Input Impedance:
500VDC/100MOHM MIN
Frequency Range:
150 KHz To 30 GHz
Storage Temperature:
-40℃~+85℃
Item:
EMI Filter
Operating Frequency:
50/60HZ
Nominal Center Frequency:
50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)
Dimensions:
Varies Depending On Model
Port:
Shenzhen
Termination Style:
Solder Pins
Rated Current:
Different
Weight:
290g-1000g
Insulation Resistance:
≥100MΩ
Rohs Compliant:
Yes
Humidity:
≤95%RH
Supply Ability:
2000 pcs within 10-15 days
Highlight:

60HZ EMC EMI Filter

,

CNC Machines EMC EMI Filter

,

15A Electrical Power Filter

Product Description

15A 50 / 60HZ Electrical Power EMC EMI Filter For CNC machines

EMC EMI Filter Quick Detail:

Item EMC EMI Filter
Model VIP4-2B-15
Original of country China
Package Type Screw Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 110V/250V
Rated Current 15A
Temperature 40°C
Temperature Range -25℃~+85℃
Operating Frequency 50/60HZ
Line to Line 1760VDC
Line to Ground 2000VDC
Samples available
MOQ 1 PCS
Price Negotiated
Lead Time 3~20 workdays




EMC EMI Filter Features:



1.Our AC filters with  exceptional performance, with greatly improved attenuation of both common and differential mode signals, as well as effective low frequency filtering.
2.We provide many terminal options, giving you the flexibility to choose the best fit for your needs.
3.We offer a wide selection of parts and combinations to meet the unique EMC testing requirements of each customer.
4.Our filters are also available in a 380VAC configuration, ensuring compatibility with a broad range of electrical systems.







EMC EMI Filter Applications:

1. Electrical and electronic equipment

2. Single phase servo motor

3. Datacom equipment

4. dental equipment

5. Charging post / equipments

6. Electric vehicle

7. Energy storage systems

EMC EMI Filter Specifications:

Part No. Rated Current [A] 250VAC/50Hz @ 20C
Leakage Current [mA]
Physical Dimensions Electrical Schematics Terminals Weight [g]
screw terminal block wires
VIP4-2A-01 1A <0.5mA Fig 2 Fig 1 - - - - - - 0 95
VIP4-2A-03 3A <0.5mA Fig 2 Fig 1 - - - - - - 0 95
VIP4-2A-06 6A <0.5mA Fig 2 Fig 1 - - - - - - 0 95
VIP4-2A-10 10A <1.0mA Fig4 Fig 1 - - - 0 - - - 170
VIP4-2B-06 6A <1.0mA Fig4 Fig 2 M4 0 - - - 170
VIP4-2B-10 10A <1.0mA Fig4 Fig 2 M4 0 - - - 170
VIP4-2B-20 20A <1.0mA Fig4 Fig 2 M4 0 - - - 321
VIP4-2B -50 50A <2.0mA Fig 5 Fig 2 M6 - - - - - - 1400
VIP4-2B-100 100A <2.0mA Fig 5 Fig 2 M6 - - - - - - 2000
VIP4-2B-200 200A <2.0mA Fig 5 Fig 2 M8 - - - - - - 3000
VIP4-2C-01 1A <0.5mA Fig 1 Fig 3 M10 - - - 0 65
VIP4-2C-03 3A <0.5mA Fig 2 Fig 3 M10 - - - 0 95
VIP4-2C-06 6A <1.0mA Fig4 Fig 3 M4 0 - - - 175
VIP4-2C-10 10A <1.0mA Fig4 Fig 3 M4 0 - - - 175
VIP4-2C-20 20A <1.0mA Fig 5 Fig 3 M4 - - - - - - 600
VIP4-2C-50 50A <2.0mA Fig 5 Fig 3 M6 - - - - - - 1600



Electrical schematic:

15A 50 / 60HZ Electrical Power EMC EMI Filter For CNC Machines 0

Mechanical Dimension(Unit: mm)

15A 50 / 60HZ Electrical Power EMC EMI Filter For CNC Machines 1


Our Company



We have UL; cUL; TUV; CQC; CE; ROHS; ISO9001:2015; REACH certification to ensure the product quality



We have the relevant professional experimental equipment, so we can provide a free diagnostic conducting test for you.



Free EMC rectification technical support and provide free test sample



Automation technology, scale production, excellent price



Good service, fast delivery!



Cooperate with the top scientific research laboratory



We have a professional R&D team

FAQ:

Q1:How about the certificates?

A:ISO 9001, TUV, UL, CE, CQC, CB, ENEC, ROHS, REACH etc.



Q2: Are you a factory?
A: Yes, we have been a professional manufacturer of EMI&EMC FILTER and ferrite core since 2009.



Q3: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.
