AC EMI Filter
>

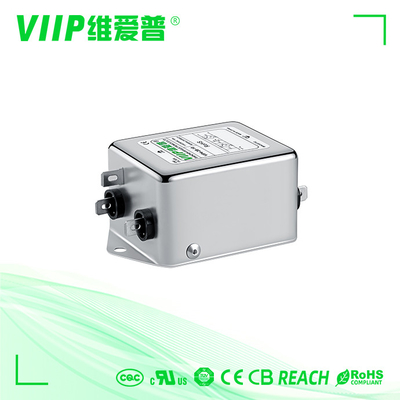

Low Pass Surface Mount 20A EMI Filter For RF Welding Equipment

Low Pass Surface Mount 20A EMI Filter For RF Welding Equipment

Brand Name: VIIP
Model Number: VIP4-2B-20
MOQ: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE TUV ROHS REACH
Type:
AC Single Filter
Rated Current:
20A
Rated Voltage:
110/250VAC
Transfer Function:
Low Pass
Application:
Electronic Equipments
Samples:
On Stock
Supply Ability:
2000 pcs within 10-15 days
Highlight:

Surface Mount 20A EMI Filter

,

RF Welding Equipment 20A EMI Filter

,

CE AC EMI Filter

Product Description

Surface Mount 20A EMI Filter For RF welding equipment

Quick Detail:



Item numberVIP4-2B-20
Package TypeSurface Mount
Nominal Center Frequency10KHZ-30MHZ
Insertion Loss60~90dB
Input Impedance50Ω
Rated Voltage110V/250V
Rated Current20A
Environmental Temperature40°C
Temperature25 / 085 / 21
Operating Frequency50/60HZ
Line to Line1760VDC
Line to Ground2200VDC
Maximum Leakage Current250VAC/60HZ 0.8mA Max
MOQ5pcs
PORTShenzhen
Lead Time5~15 working days


General purpose single phase AC power line filters ,easy to install ,available for


--Electrical and electronic equipment



-- Medical equipment



-- Building automation



--Industrial  automation



-- Office automation and datacom equipment



Specifications:

Part No.Rated Current [A]250VAC/50Hz @ 20C
Leakage Current [mA]
Physical DimensionsElectrical SchematicsTerminalsWeight [g]
screwterminal blockwires
VIP4-1A-011A<0.5mAFig 1Fig 1- - -- - -065
VIP4-1A-033A<0.5mAFig 1Fig 1- - -- - -065
VIP4-1A-066A<0.5mAFig 1Fig 1- - -- - -065
VIP4-1A-1010A<0.5mAFig 2Fig 1- - -0- - -75
VIP4-1B-066A<1.0mAFig 3/Fig4Fig 2M40- - -140
VIP4-1B-1010A<1.0mAFig 3/Fig4Fig 2M40- - -170
VIP4-1B-2020A<1.0mAFig 3/Fig4Fig 2M40- - -170
VIP4-1B-3030A<1.0mAFig 5Fig 2M6- - -- - -320
VIP4-1B-5050A<2.0mAFig 5Fig 2M6- - -- - -600
VIP4-1B-100100A<2.0mAFig 5Fig 2M8- - -- - -1380
VIP4-1B-150150A<2.0mAFig 5Fig 2M10- - -- - -1900
VIP4-1B-200200A<2.0mAFig 5Fig 2M10- - -- - -1900



Our Company

1.Customized:We have a professional R&D team; our aims is we won't let customers
spend any extra money.

2.Listed company:National high-tech enterprises, brand assurance, reliable quality, and we have the relevant product certifications.

3.Rectification test: We cooperate with top scientific research laboratories to provide free
EMC rectification technical support, samples; and free conduction test.

4.Scale production:Automation technology, scale production, great price,excellent, service,
