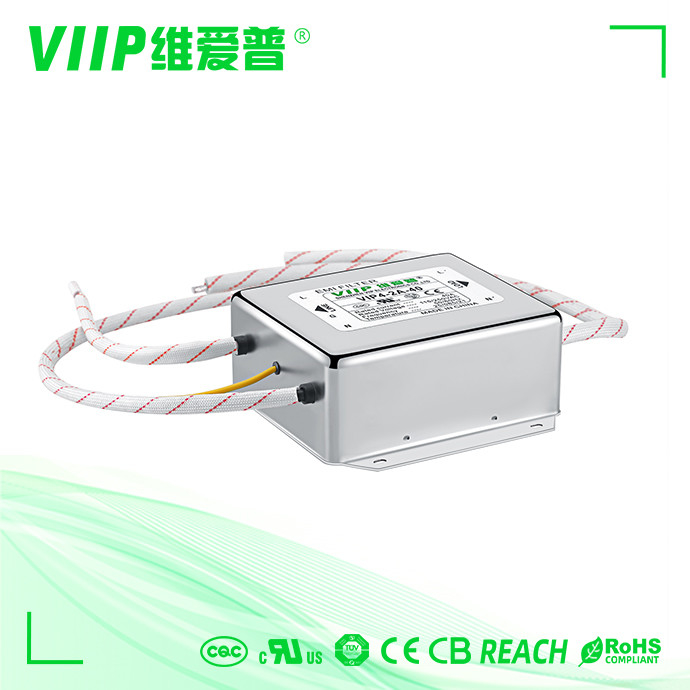

20A 3 Phase Low Pass Filter , Ac Line Filter For Ultrasonic Equipment

Brand Name:	VIIP
Model Number:	VIP4-2B-20
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV ROHS REACH

Type:

AC Single Filter

Rated Current:

Rated Voltage:

110/250VAC

Nominal Center Frequency:

10KHZ~30MHZ

Transfer Function:

Low Pass

Application:

Electronic Equipments

Supply Ability:

2000 pcs within 10-15 days

Highlight:

20A 3 Phase Low Pass Filter

Ultrasonic Equipment Ac Line Filter

ROHS AC EMI Filter

Product Description

Low Pass Filter 20A 3 Phase Ac Line Filter For Ultrasonic equipment

Quick Detail:

Item number	VIP4-2B-20
Package Type	Surface Mount
Nominal Center Frequency	10KHZ-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	20A
Environmental Temperature	40°C
Temperature	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1760VDC
Line to Ground	2200VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max
MOQ	5pcs
PORT	Shenzhen
Lead Time	5~15 working days

General purpose single phase AC power line filters ,easy to install ,available for

--Electrical and electronic equipment

-- Medical equipment

-- Building automation

--Industrial automation

-- Office automation and datacom equipment

Specifications:

Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals			Weight [g]
Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	screw	terminal block	wires	Weight [g]
VIP4-2A-01	1A	<0.5mA	Fig 2	Fig 1	- - -	- - -	0	95
VIP4-2A-03	3A	<0.5mA	Fig 2	Fig 1	- - -	- - -	0	95
VIP4-2A-06	6A	<0.5mA	Fig 2	Fig 1	- - -	- - -	0	95
VIP4-2A-10	10A	<1.0mA	Fig4	Fig 1	- - -	0	- - -	170
VIP4-2B-06	6A	<1.0mA	Fig4	Fig 2	M4	0	- - -	170
VIP4-2B-10	10A	<1.0mA	Fig4	Fig 2	M4	0	- - -	170
VIP4-2B-20	20A	<1.0mA	Fig4	Fig 2	M4	0	- - -	321
VIP4-2B -50	50A	<2.0mA	Fig 5	Fig 2	M6	- - -	- - -	1400
VIP4-2B-100	100A	<2.0mA	Fig 5	Fig 2	M6	- - -	- - -	2000
VIP4-2B-200	200A	<2.0mA	Fig 5	Fig 2	M8	- - -	- - -	3000
VIP4-2C-01	1A	<0.5mA	Fig 1	Fig 3	M10	- - -	0	65
VIP4-2C-03	3A	<0.5mA	Fig 2	Fig 3	M10	- - -	0	95
VIP4-2C-06	6A	<1.0mA	Fig4	Fig 3	M4	0	- - -	175
VIP4-2C-10	10A	<1.0mA	Fig4	Fig 3	M4	0	- - -	175
VIP4-2C-20	20A	<1.0mA	Fig 5	Fig 3	M4	- - -	- - -	600
VIP4-2C-50	50A	<2.0mA	Fig 5	Fig 3	M6	- - -	- - -	1600

Electrical schematic:

20A 3 Phase Low Pass Filter , Ac Line Filter For Ultrasonic Equipment 0

Mechanical Dimension(Unit: mm)

20A 3 Phase Low Pass Filter , Ac Line Filter For Ultrasonic Equipment 1

FAQ:

Q1: Do you offer customized product ?
A: Yes, we can develop a new mold at you need if you can provide us with the samples or drawings and specification.

Q2: Are you a factory?
A: Yes, we are an ISO9001 manufacturer, an integration of EMI filter R&D, production and sales since 2009.

Q3: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.

Q4: How about the payment terms?
A: We usually require T/T in advance. If the amount is more than 5000USD, we can negotiate about the payment term,like 70% deposit in advance 30% pay before delivery, etc.
Q5: How about the certificates?
A:ISO9001,CE, TUV, UL, ROHS, CQC, REACH etc.

Q6: How about the sample?
A: Free samples. You need to pay for Currier cost. Please contact us for details.

Q7: What are services available after-sale?

A: Free replacement within three-month, free maintenance within six-year, life-long maintenance.

Q8: Shipping terms

A: DHL, UPS, FedEx, TNT, EMS AIR OR BY SHIP

Tags:

Termilar Block AC EMI Filter

Attenuation Low Pass Filter 20A

common mode and differential mode filter
