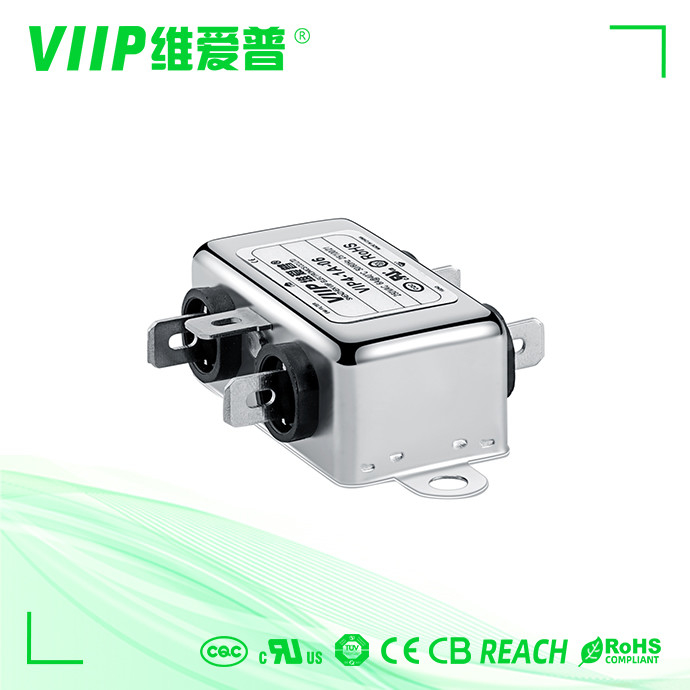

Single Phase RFI Mains Filter , EMC EMI Filter For AC Power Supply

Brand Name: VIIP
Model Number: VIP4-1A-06
MOQ: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE TUV UL ROHS REACH
Rated Current:
6A
Type:
AC EMI Filter
Nominal Center Frequency:
150KHZ~30MHZ
Line To Line:
1760VDC
Application:
Medical Equipments
Operating Frequency:
50/60HZ
Supply Ability:
2000 pcs within 10-15 days
Highlight:

1760VDC RFI Mains Filter

,

Single Phase RFI Mains Filter

,

AC Power Supply EMC EMI Filter

Product Description

Medical Equipment AC Emi Filter EMC RFI 240V AC Mains Filter Power Supply

Quick Detail:



Technical Specification:

Item Power line Filter
Model Power line Filter VIP4
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 150K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 110V/250V
Rated Current 0.5~300A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1760VDC
Line to Ground 2200VDC
Maximum Leakage Current 250VAC/60HZ 1.0mA Max
MOQ 5pcs
Port Shenzhen
Lead Time 5~15 working days









General purpose single phase AC power line filters ,easy to install ,available for



--Electrical and electronic equipment



-- Medical equipment



-- Building automation



-- Office automation and datacom equipment







Specifications for single phase emi filters:



General purpose AC filters with good attenuation frequency range 150KHz-30MHz



VIP4 -1A and VIP4 -1B series are one - stage commonmode filters with almost the same filtering fleet, only slight differen different current



Compact structure, high performance-cost ratio, easy to install,safe and reliable



High voltage versions above 380VAC are also available



tabulates







  1. Rated current: 0.5A-300A
  2. Various terminals: wire, solder lug, stud, terminal block ,etc

  3. Optional medical versions(H type)

  4. Custom specific versions are available on request

Part No. Rated Current [A] 250VAC/50Hz @ 20C
Leakage Current [mA]		 Physical Dimensions Electrical Schematics Terminals Weight [g]
screw terminal block wires
VIP1-1A-01 1A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP1-1A-03 3A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP1-1A-06 6A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP1-1A-10 10A <0.5mA Fig 2 Fig 1 - - - 0 - - - 75
VIP4-1B-06 6A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 140
VIP4-1B-10 10A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 170
VIP4-1B-20 20A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 170
VIP4-1B-30 30A <1.0mA Fig 5 Fig 2 M6 - - - - - - 320
VIP4-1B-50 SOA <2.0mA Fig 5 Fig 2 M6 - - - - - - 600
VIP4-1B-100 100A <2.0mA Fig 5 Fig 2 M8 - - - - - - 1380
VIP4-1B-150 150A <2.0mA Fig 5 Fig 2 M10 - - - - - - 1900
VIP4-1B-200 200A <2.0mA Fig 5 Fig 2 M10 - - - - - - 1900




  •

Sample

Sample Fee: Negotiate

Sample Time: 2~5 days



Payment

---Payment terms: Western Union,  T/T

---Please remember to leave the correct contact information for delivery.



FAQ

About VIIP
Q:Are you manafacturer or trading company?
Shenzhen VIIP is a manafacturer forEMI/EMC Products located in Shenzhen Guangdong China.

About Products
Q:What certification do you have for your products?
We have got CE ROHS FCC and so on.
Q:What is your MOQ?
It depends on different items,we have low MOQ request ,because we have a big warehouse for stock orders.
Q:What shipping ways do you support for delivery?
We support air, sea and railway shipment.

About Sample Order
Q: Can I have a sample order for your products?
A: Yes, we offer product samples, including mixed samples.

About Service

Q: Which payments are acceptable?
A:We accept T/T, Paypal, Western Union ect.
Q: Can I visit your company and factory in China?
A: Sure. We are happy to receive you in Shenzhen, China and show you around our workplaces.





Tags:

Termilar Block AC EMI Filter

Attenuation Low Pass Filter 20A

common mode and differential mode filter
