Product Details:
|
| Rated Current: | 3A | Type: | EMC Filter |
|---|---|---|---|
| Rated Voltage: | 110/250VAC | Nominal Center Frequency: | 150KHZ~30MHZ |
| Certification: | CE ROHS | Application: | Electronic Equipments |
| High Light: | 3A 220V EMI Filter,6A 220V EMI Filter,Smart Terminal AC EMI Filter |
||
| Item | Power line EMI Filter |
| Model | VIP4-1A-03 |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Frequency Range | 150K-30MHZ |
| MOQ | 1PCS |
| Input Impedance | 50Ω |
| Rated Voltage | 110V/250V |
| Rated Current | 6A |
| Environmental Temperature | 40°C |

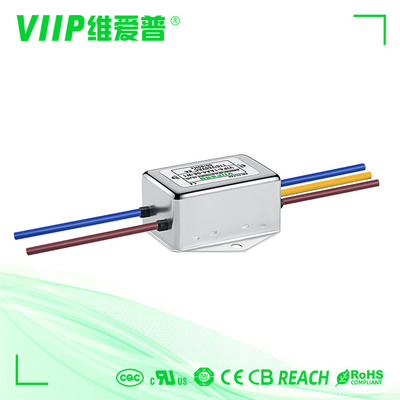

General purpose single phase AC power line filters ,easy to install ,available for small electronic equipment’s and measuring instrument
Specifications:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] | ||
| screw | terminal block | wires | ||||||
| VIP4-1A-01 | 1A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-03 | 3A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-06 | 6A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-10 | 10A | <0.5mA | Fig 2 | Fig 1 | - - - | 0 | - - - | 75 |
| VIP4-1B-06 | 6A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 140 |
| VIP4-1B-10 | 10A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-20 | 20A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-30 | 30A | <1.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 320 |
| VIP4-1B-50 | 50A | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 600 |
| VIP4-1B-100 | 100A | <2.0mA | Fig 5 | Fig 2 | M8 | - - - | - - - | 1380 |
| VIP4-1B-150 | 150A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
| VIP4-1B-200 | 200A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
Applications:
White household
Smart home
Smart terminal
Power supply
Power & energy
Electrical & electronic equipment
Consumer goods
medical device
datacome equipment
Sample
Sample Fee: Negotiate
Sample Time: 2~5 days
