| Brand Name: | VIIP |
| Model Number: | VIP3-41A-50 |
| MOQ: | 100 PCS |
| Price: | usd |
| Packaging Details: | 33*33*18 |
| Payment Terms: | T/T, Western Union |

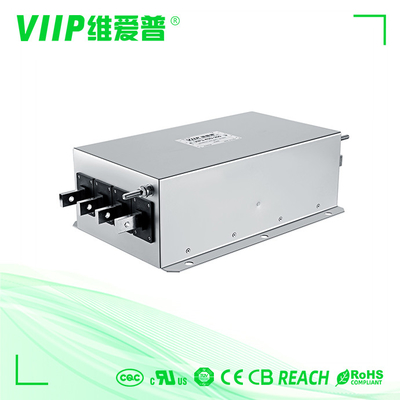

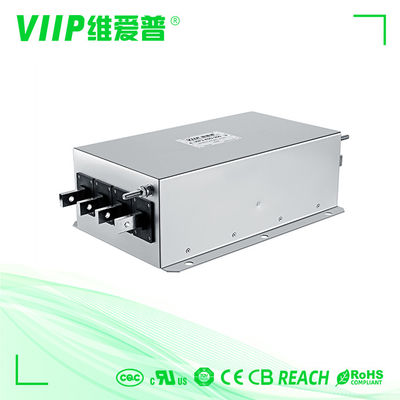

3 Phase 4 Wire Ac Emi Filter For Mechanical Equipment Electric Filter
Quick Detail:
Description:
suitable for three phase three line power supply
compact structure ,simple and time-saving installation,specially suitable for applications with limited space ,highly cost effective
Specifications:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] |
| VIP3-41A-06 | 6A | <2.0mA | Fig 1 | Fig 1 | M4 | 400 |
| VIP3-41A-10 | 10A | <2.0mA | Fig 1 | Fig 1 | M4 | 400 |
| VIP3-41A-20 | 20A | <2.0mA | Fig 1 | Fig 1 | M4 | 600 |
| VIP3-41A-30 | 30A | <4.5mA | Fig 1 | Fig 1 | M6 | 600 |
| VIP3-41A-40 | 40A | <4.5mA | Fig 2 | Fig 1 | M6 | 1000 |
| VIP3-41A-50 | 50A | <4.5mA | Fig 2 | Fig 1 | M6 | 1500 |
| VIP3-41A-80 | 80A | <8.0mA | Fig 2 | Fig 1 | M8 | 3100 |
| VIP3-41A-100 | 100A | <8.0mA | Fig 2 | Fig 1 | M8 | 3100 |
| VIP3-41A-150 | 150A | <8.0mA | Fig 2 | Fig 1 | M10 | 4000 |
| VIP3-41A-200 | 200A | <20.0mA | Fig 2 | Fig 1 | M10 | 4000 |
Applications:
Widely used all kinds of electrical unit with ⛛ connection style,such as print machine ,packing machine ,textile equipment ,industry air conditioner ,UPS ,medical equipment .etc
Our Company
We have UL; cUL; TUV; CQC; CE; ROHS; ISO9001:2015; REACH certification to ensure the product quality
We have the relevant professional experimental equipment, so we can provide a free diagnostic conducting test for you.
Free EMC rectification technical support and provide free test sample
Automation technology, scale production, excellent price
Good service, fast delivery!
Cooperate with the top scientific research laboratory
We have a professional R&D team
FAQ:
Q1:How about the certificates?
A:ISO 9001, TUV, UL, CE, CQC, CB, ENEC, ROHS, REACH etc.
Q2: Are you a factory?
A: Yes, we have been a professional manufacturer of EMI&EMC FILTER and ferrite core since 2009.
Q3: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.
Q4: How about the payment terms?
A: We usually require T/T in advance. we also accept other payment methods.
Q5: Do you offer customized product ?
A: Yes, we can develop a new mold as your requirement if you can provide us with the samples or drawings and specifications.
Q6: How about the samples?
A: Free samples. You need to pay for freight cost. Please contact us for details.
We Can Provide EMC technical rectification and always can custom product as your requirement to pass the EMC test. Let's talk in details.
|
|
