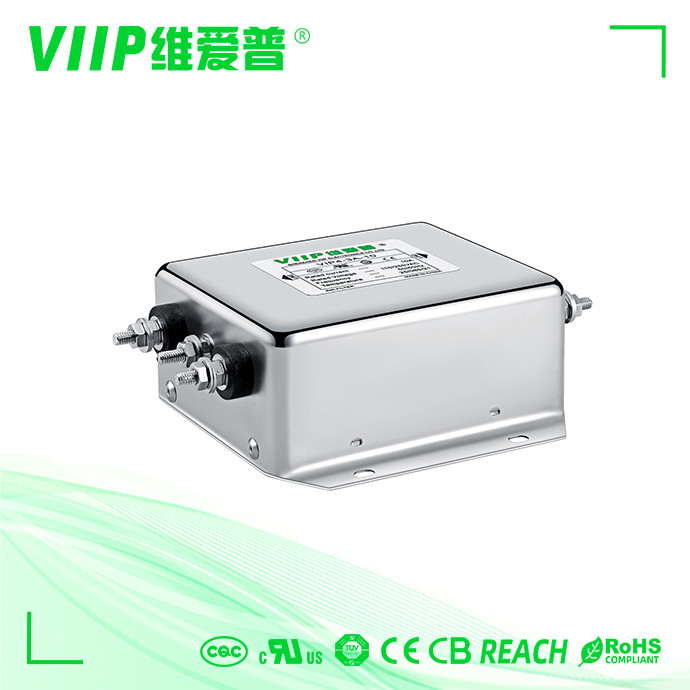

Name: 250VAC Single Phase EMI Filters , Safety Tester 10A EMI EMC Filters
Brand: Shenzhen VIIP Electronics Co., Ltd.
SKU: VIP4-1A-40
Price: 6.00 USD
Availability: InStock

Brand Name:	VIIP WeiAiPu
Model Number:	VIP4-1A-40
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Nominal Center Frequency:

50/60Hz

Transfer Function:

Low Pass Emi Power Filter

Rated Voltage:

110/250VAC

Rated Current:

40A

Temperature Range:

25 / 085 / 21

Certification:

CE ROHS

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Yes

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

10A Single Phase EMI Filters

ROHS EMI EMC Filters

250VAC EMI EMC Filters

Product Description

250VAC Single Phase EMI Filters 10A Emc Filters Safety tester

Quick Detail:

Input Impedance	50Ω
Rated current	40A
Brand Name	VIIP
Insertion Loss	30-100dB
Transfer Function	Low Pass
Nominal Center Frequency:	150KHZ~30MHZ
Certificate	ISO9001 CE ROHS cUL TUV
MOQ	1PCS
Package Type	Surface Mount

General purpose single phase AC power line filters ,easy to install ,available for small electronic equipment’s and measuring instrument

Outline Drawing and Dimensions :

Specifications:

Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals			Weight [g]
Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	screw	terminal block	wires	Weight [g]
VIP4-1A-01	1A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP4-1A-03	3A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP4-1A-06	6A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP4-1A-10	10A	<0.5mA	Fig 2	Fig 1	- - -	0	- - -	75
VIP4-1B-06	6A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	140
VIP4-1B-10	10A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	170
VIP4-1B-20	20A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	170
VIP4-1B-30	30A	<1.0mA	Fig 5	Fig 2	M6	- - -	- - -	320
VIP4-1B-50	50A	<2.0mA	Fig 5	Fig 2	M6	- - -	- - -	600
VIP4-1B-100	100A	<2.0mA	Fig 5	Fig 2	M8	- - -	- - -	1380
VIP4-1B-150	150A	<2.0mA	Fig 5	Fig 2	M10	- - -	- - -	1900
VIP4-1B-200	200A	<2.0mA	Fig 5	Fig 2	M10	- - -	- - -	1900

Electrical schematic:

250VAC Single Phase EMI Filters , Safety Tester 10A EMI EMC Filters 0

Mechanical Dimension(Unit: mm)

250VAC Single Phase EMI Filters , Safety Tester 10A EMI EMC Filters 1

Applications:

White household

Smart home

Smart terminal

Power supply

Power & energy

Electrical & electronic equipment

Consumer goods

medical device

250VAC Single Phase EMI Filters , Safety Tester 10A EMI EMC Filters 2

Our Company

1.Customized:We have a professional R&D team; our aims is we won't let customers

spend any extra money.

2.Listed company:National high-tech enterprises, brand assurance, reliable quality, and we have the relevant product certifications.

3.Rectification test: We cooperate with top scientific research laboratories to provide free

EMC rectification technical support, samples; and free conduction test.

4.Scale production:Automation technology, scale production, great price,excellent, service,
