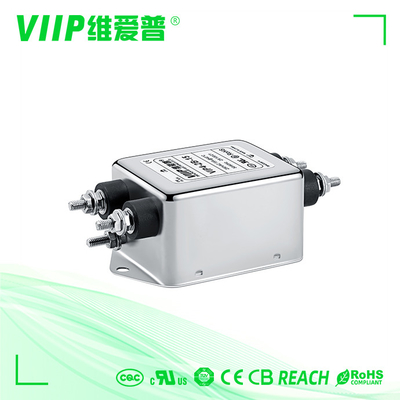

High Performance AC Single Phase RFI Line Filters For Automated Optical Inspection

Brand Name:	VIIP WeiAiPu
Model Number:	VIP4-1A-15
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Rated Current:

Rated Voltage:

110/250VAC

Insertion Loss:

30-100dB

Application:

EMI Isolation&RF Absortion

Transfer Function:

Low Pass

Filter Mount Style:

Flanged

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

EMI Isolation RFI Line Filters

AC RFI Line Filters

30dB Single Phase EMI Filter

Product Description

High Performance AC Single Phase RFI Line Filters For Automated optical inspection

Quick Detail:

Input Impedance	50Ω
Model Number	VIP4-1A-15
Rated voltage	110V/250V
Type	AC EMI Filter
Transfer Function	Low Pass
Nominal Center Frequency	150KHZ~30MHZ
Certificated	ISO9001 CE ROHS cUL TUV
MOQ	1PCS
Package Type	Surface mounted

General purpose single phase AC power line filters ,easy to install ,available for small electronic equipment’s and measuring instrument

Designed for general purpose, common mode and differential mode applications

Protection from pulsed, intermittent, or continuous RFI

Higher line-to-line attenuation for protection from pulsed, intermittent, or continuous RFI

FASTON, Stud, Wire Lead are available

Specifications:

Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals			Weight [g]
Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	screw	terminal block	wires	Weight [g]
VIP4-1A-01	1A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP4-1A-03	3A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP4-1A-06	6A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP4-1A-10	10A	<0.5mA	Fig 2	Fig 1	- - -	0	- - -	75
VIP4-1B-06	6A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	140
VIP4-1B-10	10A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	170
VIP4-1B-20	20A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	170
VIP4-1B-30	30A	<1.0mA	Fig 5	Fig 2	M6	- - -	- - -	320
VIP4-1B-50	50A	<2.0mA	Fig 5	Fig 2	M6	- - -	- - -	600
VIP4-1B-100	100A	<2.0mA	Fig 5	Fig 2	M8	- - -	- - -	1380
VIP4-1B-150	150A	<2.0mA	Fig 5	Fig 2	M10	- - -	- - -	1900
VIP4-1B-200	200A	<2.0mA	Fig 5	Fig 2	M10	- - -	- - -	1900

Electrical schematic:

High Performance AC Single Phase RFI Line Filters For Automated Optical Inspection 0

Mechanical Dimension(Unit: mm)

High Performance AC Single Phase RFI Line Filters For Automated Optical Inspection 1

Applications:

White household

Smart home

Smart terminal

Power supply

Power & energy

Electrical & electronic equipment

Consumer goods

medical device

datacome equipment

High Performance AC Single Phase RFI Line Filters For Automated Optical Inspection 2

Our Company

1.Customized:We have a professional R&D team; our aims is we won't let customers

spend any extra money.

2.Listed company:National high-tech enterprises, brand assurance, reliable quality, and we have the relevant product certifications.

3.Rectification test: We cooperate with top scientific research laboratories to provide free

EMC rectification technical support, samples; and free conduction test.

4.Scale production:Automation technology, scale production, great price,excellent, service,
