| Brand Name: | VIIP |
| Model Number: | VIP4-1A-10(10271) |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 33*33*18 |
| Payment Terms: | T/T, Western Union |
| Place of Origin: China | Input Impedance: 50Ω |
| Model Number: VIP4-1A-10(10271) | Rated current: 10A |
| Brand Name: VIIP | Rated voltage: 110V/250V |
| Type:AC EMI Filter | Insertion Loss: 30-100dB |
| Function: Low Pass | Line To Line: 1760VDC |
| Nominal Center Frequency: 150KHZ~30MHZ | Line to ground: 2000VAC |
| Port: SHENZHEN | Certificate: ISO9001 CE ROHS UL TUV |
| MOQ: 1PCS | Operating Frequency: 50/60HZ |
| Package Type: Surface Mount | Temperature Range: 25 / 085 / 21 |

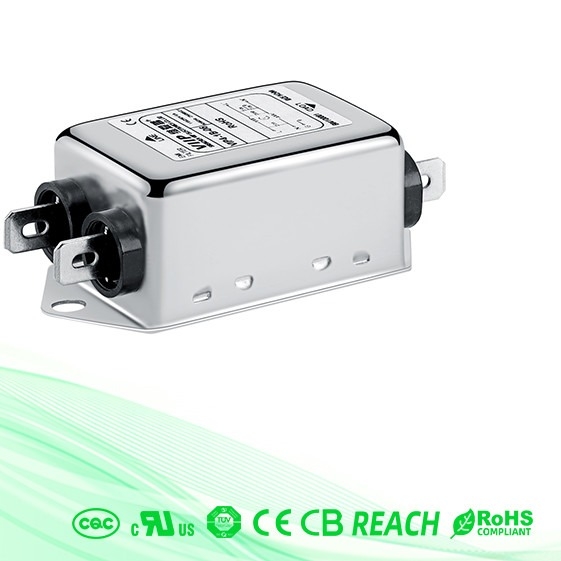

General purpose single phase AC power line filters ,easy to install ,available for small electronic equipment’s and measuring instrument
Power EMC Special Single Phase EMI Filters For Lab equipment Specifications:
| features for single phase emi filters |
| 1. Rated current: 0.5A-300A |
| 2.Various terminals: wire, solder lug, stud, terminal block ,etc |
| 3.Optional medical versions(H type) |
| 4.Custom specific versions are available on request |
| General purpose AC filters with good attenuation frequency range 150KHz-30MHz |
| Compact structure, high performance-cost ratio, easy to install,safe and reliable |
| VIP4 -1A and VIP4 -1B series are one - stage commonmode filters with almost the same filtering fleet, only slight differen different current |
| High voltage versions above 380VAC are also available |
Applications:
Electrical & electronic equipment
Consumer goods
medical equipment
datacome equipment
FAQ
About VIIP
Q:Are you manafacturer or trading company?
Shenzhen VIIP is a manafacturer forEMI/EMC Products located in Shenzhen Guangdong China.
About Products
Q:What certification do you have for your products?
We have got CE ROHS FCC and so on.
Q:What is your MOQ?
It depends on different items,we have low MOQ request ,because we have a big warehouse for stock orders.
Q:What shipping ways do you support for delivery?
We support air, sea and railway shipment.
About Sample Order
Q: Can I have a sample order for your products?
A: Yes, we offer product samples, including mixed samples.
Tabulates
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] | ||
| screw | terminal block | wires | ||||||
| VIP1-1A-01 | 1A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP1-1A-03 | 3A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP1-1A-06 | 6A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP1-1A-10 | 10A | <0.5mA | Fig 2 | Fig 1 | - - - | 0 | - - - | 75 |
| VIP4-1B-06 | 6A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 140 |
| VIP4-1B-10 | 10A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-20 | 20A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-30 | 30A | <1.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 320 |
| VIP4-1B-50 | SOA | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 600 |
| VIP4-1B-100 | 100A | <2.0mA | Fig 5 | Fig 2 | M8 | - - - | - - - | 1380 |
| VIP4-1B-150 | 150A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
| VIP4-1B-200 | 200A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
Mechanical Dimension(Unit: mm)
Electrical schematic:
|
