| Brand Name: | VIIP |
| Model Number: | VIP4-1A-10 (10249) |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 33*33*18 |
| Payment Terms: | T/T, Western Union |
| Place of Origin | China |
| Model Number | VIP4-1A-10 (10249) |
| Input Impedance | 50Ω |
| Insertion Loss | 30-100dB |
| Line To Line | 1760VDC |
| Nominal Center Frequency | 10KHZ~30MHZ |
| Certificate | ISO9001 CE ROHS cUL TUV |
| Operating Frequency | 50/60HZ |
| Temperature Range | 25 / 085 / 21 |

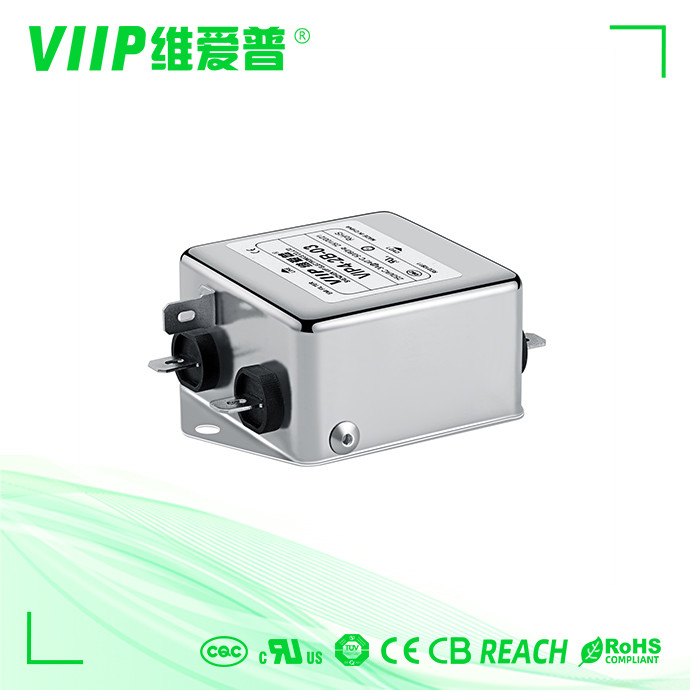

10KHZ-30MHZ EMI Filters Common Mode Single Phase for Diagnostic equipment Features and Benefits:
More than two levels of fitering. 10 KHz一30 MHz broadbandhigh efficiencyfiltering,especally enhance the low- frequency filteringeffect between 10 KHz150 KHz.
Designed secialy for the tansmssion of military equipment through CE102 inGJB151A/ 152A
10KHZ-30MHZ EMI Filters Common Mode Single Phase for Diagnostic equipment Specifications:
| features for single phase emi filters |
| 1. Rated current: 0.5A-300A |
| 2.Various terminals: wire, solder lug, stud, terminal block ,etc |
| 3.Optional medical versions(H type) |
| 4.Custom specific versions are available on request |
| General purpose AC filters with good attenuation frequency range 150KHz-30MHz |
| Compact structure, high performance-cost ratio, easy to install,safe and reliable |
| VIP4 -1A and VIP4 -1B series are one - stage commonmode filters with almost the same filtering fleet, only slight differen different current |
| High voltage versions above 380VAC are also available |
Tabulates
| - |
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] | |||
| screw | terminal block | wires | |||||||
| VIP4-2A-01 | 1A | <0.5mA | Fig 2 | Fig 1 | - - | - - - | 0 | 95 | |
| VIP4-2A-03 | 3A | <0.5mA | Fig 2 | Fig 1 | - - - | - - - | 0 | 95 | |
| VIP4-2A-06 | 6A | <0.5mA | Fig 2 | Fig 1 | - - - | - - - | 0 | 95 | |
| VIP4-2A-10 | 10A | <1.0mA | Fig4 | Fig 1 | - - - | 0 | - - - | 170 | |
| VIP4-2B-06 | 6A | <1.0mA | Fig4 | Fig 2 | M4 | 0 | - - - | 170 | |
| VIP4-2B-10 | 10A | <1.0mA | Fig4 | Fig 2 | M4 | 0 | - - - | 170 | |
| VIP4-2B-20 | 20A | <1.0mA | Fig4 | Fig 2 | M4 | 0 | - - - | 321 | |
| VIP4-2B -50 | 50A | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 1400 | |
| VIP4-2B-100 | 100A | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 2000 | |
| VIP4-2B-200 | 200A | <2.0mA | Fig 5 | Fig 2 | M8 | - - - | - - - | 3000 | |
| VIP4-2C-01 | 1A | <0.5mA | Fig 1 | Fig 3 | M10 | - - - | 0 | 65 | |
| VIP4-2C-03 | 3A | <0.5mA | Fig 2 | Fig 3 | M10 | - - - | 0 | 95 | |
| VIP4-2C-06 | 6A | <1.0mA | Fig4 | Fig 3 | M4 | 0 | - - - | 175 | |
| VIP4-2C-10 | 10A | <1.0mA | Fig4 | Fig 3 | M4 | 0 | - - - | 175 | |
| VIP4-2C-20 | 20A | <1.0mA | Fig 5 | Fig 3 | M4 | - - - | - - - | 600 | |
| VIP4-2C-50 | 50A | <2.0mA | Fig 5 | Fig 3 | M6 | - - - | - - - | 1600 | |
FAQ:
Q:Do you offer a customized product?
A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.
Q: Are you an ISO9001 manufacturer?
A: Yes, we are a professional manufacturer of EMI filter designing and manufacturing since 2009.
Q: How long is the delivery time?
A: We ensure fast delivery. Generally, it will take 2-5 days for samples; 10 to 15 for small orders, 15-25days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us
|
