| Brand Name: | VIIP |
| Model Number: | VIP4-1A-06(A041W0584) |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 33*33*18 |
| Payment Terms: | T/T, Western Union |
| Place of Origin | China |
| Model Number | VIP4-2B-20 |
| Input Impedance | 50Ω |
| Insertion Loss | 30-100dB |
| Line To Line | 1760VDC |
| Nominal Center Frequency | 10KHZ~30MHZ |
| Certificate | ISO9001 CE ROHS cUL TUV |
| Operating Frequency | 50/60HZ |
| Temperature Range | 25 / 085 / 21 |

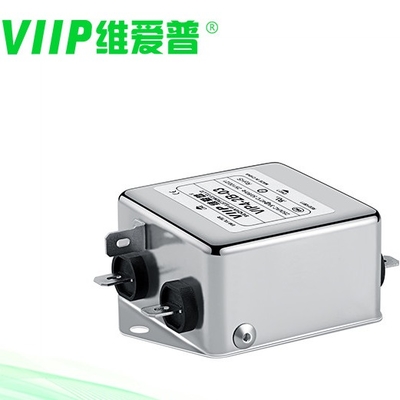

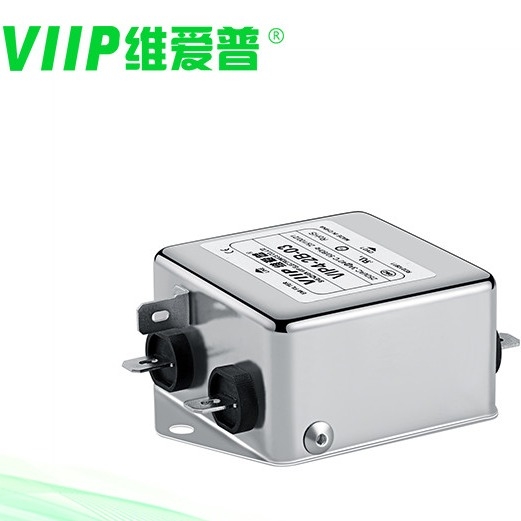

20A AC Single Phase EMI Filter For Power Supplies and UPS systems Features and Benefits:
More than two levels of fitering. 10 KHz一30 MHz broadbandhigh efficiencyfiltering,especally enhance the low- frequency filteringeffect between 10 KHz150 KHz.
Designed secialy for the tansmssion of military equipment through CE102 inGJB151A/ 152A
Work frequency. rated voltage to meet different requirements, rapid customizationdesign.
6A AC Single Phase EMI Filter For Power Supplies and UPS systems Specifications:
| features for single phase emi filters |
| 1. Rated current: 0.5A-300A |
| 2.Various terminals: wire, solder lug, stud, terminal block ,etc |
| 3.Optional medical versions(H type) |
| 4.Custom specific versions are available on request |
| General purpose AC filters with good attenuation frequency range 150KHz-30MHz |
| Compact structure, high performance-cost ratio, easy to install,safe and reliable |
| VIP4 -1A and VIP4 -1B series are one - stage commonmode filters with almost the same filtering fleet, only slight differen different current |
| High voltage versions above 380VAC are also available |
tabulates:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] | |||
| screw | terminal block | wires | |||||||
| VIP4-2A-01 | 1A | <0.5mA | Fig 2 | Fig 1 | - - - | - - - | 0 | 95 | |
| VIP4-2A-03 | 3A | <0.5mA | Fig 2 | Fig 1 | - - - | - - - | 0 | 95 | |
| VIP4-2A-06 | 6A | <0.5mA | Fig 2 | Fig 1 | - - - | - - - | 0 | 95 | |
| VIP4-2A-10 | 10A | <1.0mA | Fig4 | Fig 1 | - - - | 0 | - - - | 170 | |
| VIP4-2B-06 | 6A | <1.0mA | Fig4 | Fig 2 | M4 | 0 | - - - | 170 | |
| VIP4-2B-10 | 10A | <1.0mA | Fig4 | Fig 2 | M4 | 0 | - - - | 170 | |
| VIP4-2B-20 | 20A | <1.0mA | Fig4 | Fig 2 | M4 | 0 | - - - | 321 | |
| VIP4-2B -50 | 50A | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 1400 | |
| VIP4-2B-100 | 100A | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 2000 | |
| VIP4-2B-200 | 200A | <2.0mA | Fig 5 | Fig 2 | M8 | - - - | - - - | 3000 | |
| VIP4-2C-01 | 1A | <0.5mA | Fig 1 | Fig 3 | M10 | - - - | 0 | 65 | |
| VIP4-2C-03 | 3A | <0.5mA | Fig 2 | Fig 3 | M10 | - - - | 0 | 95 | |
| VIP4-2C-06 | 6A | <1.0mA | Fig4 | Fig 3 | M4 | 0 | - - - | 175 | |
| VIP4-2C-10 | 10A | <1.0mA | Fig4 | Fig 3 | M4 | 0 | - - - | 175 | |
| VIP4-2C-20 | 20A | <1.0mA | Fig 5 | Fig 3 | M4 | - - - | - - - | 600 | |
| VIP4-2C-50 | 50A | <2.0mA | Fig 5 | Fig 3 | M6 | - - - | - - - | 1600 | |
FAQ
About VIIP
Q:Are you manafacturer or trading company?
Shenzhen VIIP is a manafacturer forEMI/EMC Products located in Shenzhen Guangdong China.
About Products
Q:What certification do you have for your products?
We have got CE ROHS FCC and so on.
Q:What is your MOQ?
It depends on different items,we have low MOQ request ,because we have a big warehouse for stock orders.
Q:What shipping ways do you support for delivery?
We support air, sea and railway shipment.
About Sample Order
Q: Can I have a sample order for your products?
A: Yes, we offer product samples, including mixed samples.
About Service
Q: Which payments are acceptable?
A:We accept T/T, Paypal, Western Union ect.
Q: Can I visit your company and factory in China?
A: Sure. We are happy to receive you in Shenzhen, China and show you around our workplaces.
|
