| Brand Name: | VIIP |
| Model Number: | VIP4-1A-03(B041W0603) |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 33*33*18 |
| Payment Terms: | T/T, Western Union |
| Place of Origin | China |
| Model Number | VIP4-1A-03(B041W0603) |
| Input Impedance | 50Ω |
| Insertion Loss | 30-100dB |
| Line To Line | 1760VDC |
| Nominal Center Frequency | 10KHZ~30MHZ |
| Certificate | ISO9001 CE ROHS cUL TUV |
| Operating Frequency | 50/60HZ |
| Temperature Range | 25 / 085 / 21 |

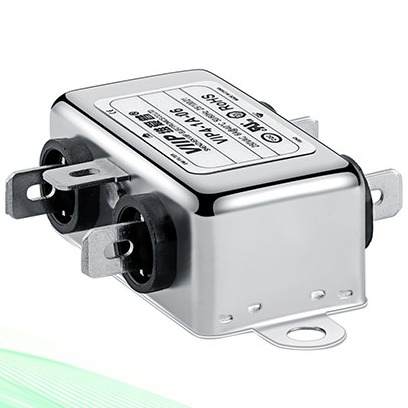

Features and Benefits for AC110/250V Single Phase EMI Filters For Consumer Electronics
More than two levels of fitering. 150 KHz一30 MHz broadbandhigh efficiencyfiltering,especally enhance the low- frequency filteringeffect between 10 KHz150 KHz.
Designed secialy for the tansmssion of military equipment through CE102 inGJB151A/ 152A
Typical applications for ac single phase emi filter
lighting equipment ,medical type applications ,industrial applications ,controls and communication systems .
Work frequency. rated voltage to meet different requirements, rapid customization design.
General purpose AC filters with good attenuation frequency range 150KHz-30MHz
Compact structure, high performance-cost ratio, easy to install,safe and reliable
VIP4 -1A and VIP4 -1B series are one - stage commonmode filters with almost the same filtering fleet, only slight differen different current
Specifications for AC110/250V Single Phase EMI Filters For Consumer Electronics
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] | ||
| screw | terminal block | wires | ||||||
| VIP4-1A-01 | 1A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-03 | 3A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-06 | 6A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-10 | 10A | <0.5mA | Fig 2 | Fig 1 | - - - | 0 | - - - | 75 |
| VIP4-1B-06 | 6A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 140 |
| VIP4-1B-10 | 10A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-20 | 20A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-30 | 30A | <1.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 320 |
| VIP4-1B-50 | 50A | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 600 |
| VIP4-1B-100 | 100A | <2.0mA | Fig 5 | Fig 2 | M8 | - - - | - - - | 1380 |
| VIP4-1B-150 | 150A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
| VIP4-1B-200 | 200A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
EMI Filters And RFI Filters For The Lighting Industry And High Reliability Applications
FAQ:
Q:Do you offer a customized product?
A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.
Q: Are you an ISO9001 manufacturer?
A: Yes, we are a professional manufacturer of EMI filter designing and manufacturing since 2009.
Q: How long is the delivery time?
A: We ensure fast delivery. Generally, it will take 2-5 days for samples; 10 to 15 for small orders, 15-25days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us
Q: How about the payment terms?
A: we also accept T/T Western Union, Paypal, etc.
Q: How about the certificates?
A: ISO 9001, CE, TUV, UL, ROHS, ENEC, REACH, etc.
|
