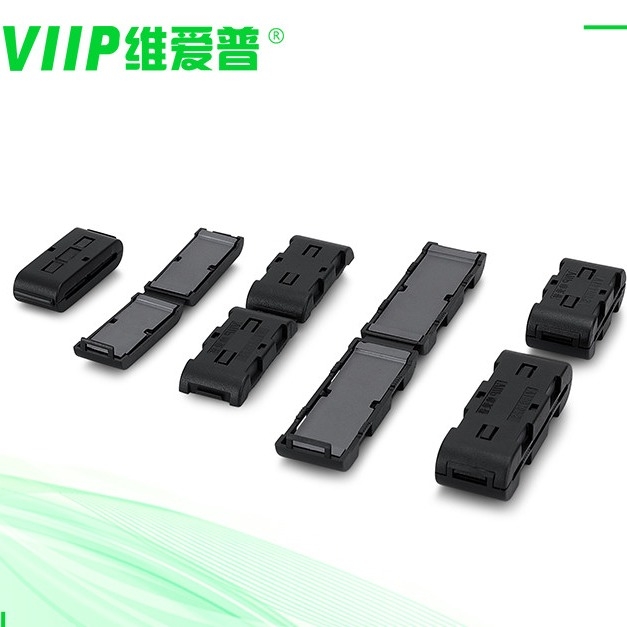

Plastic Cover Black Magnetic Ring , Soft Cable Flat Ferrite Core

Plastic Cover Black Magnetic Ring , Soft Cable Flat Ferrite Core
Plastic Cover Black Magnetic Ring , Soft Cable Flat Ferrite Core
Plastic Cover Black Magnetic Ring , Soft Cable Flat Ferrite Core Plastic Cover Black Magnetic Ring , Soft Cable Flat Ferrite Core

Large Image :  Plastic Cover Black Magnetic Ring , Soft Cable Flat Ferrite Core

Product Details:
Place of Origin: china
Brand Name: VIIP
Certification: Rohs Reach
Model Number: V18014FS
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 5k For one week

Plastic Cover Black Magnetic Ring , Soft Cable Flat Ferrite Core

Description
Type: Snap-on Material: Nizn
Product Name: Clip On Ferrite Core Application: Cables
Model: V18014FS Original Of Country: China
High Light:

Plastic Cover Flat Ferrite Core

,

Nizn Ferrite Snap Bead

,

F9 Black Magnetic Ring

Black Magnetic Ring Soft Cable Flat Ferrite Core Ferrite Snap Bead Plastic Cover



Quick Detail:



  • Place of Origin:Guangdong, China
  • Brand Name:VIIP
  • Model Number:V18015FS
  • Type:Soft
  • Composite:Ferrite Magnet
  • Shape:Cylindrical
  • Application:Industrial Magnet
  • Tolerance:±1%
  • Delivery Time:within 7 days
  • Item name:Flat ferrite
  • Material:F9
  • Impedance:155 ohm min at 100MHz
  • Condition:EMC ,EMI
  • PB Free Status:RoHS REACH
  • Color:Black
  • Operation Temperature:-40 to +125°C

Description:



RFI EMI Noise Suppressor Cable Clip:EMI RFI Noise Filter Clip;Ferrite core with plastic cover; Helps to reduce EMI on AC power lines.



Ferrite Cores:Reduce electro-magnetic interference and improve signal integrity; Easy to install, just clip it on and you will get clearer signal and faster data transmission.

 Nize ferrite ,it can improve the electromagnetic field around the solendoid ,thus avoiding outside interference.

 Easy to install and convenient to use .The cylinder can be dismountable ,and the port has the elastic clip fastener.



Specifications:



Plastic Cover Black Magnetic Ring , Soft Cable Flat Ferrite Core 0

No. Specifications Dimensions:mm Impedance(Ω)min
ΦA B ΦC D E 25MHz 100MHz
1 V18014FS 36±1 9.4±0.8 28±1 14.8±1 2±0.4 45 110
2 V18015FS 37.9±1 12.5±0.8 28±1 18±1 2±0.4 55 110
3 V18016FS 54.4±1 13±0.8 44±1 18.4±1 2±0.4 55 125

Plastic Cover Black Magnetic Ring , Soft Cable Flat Ferrite Core 1Plastic Cover Black Magnetic Ring , Soft Cable Flat Ferrite Core 2







Plastic Cover Black Magnetic Ring , Soft Cable Flat Ferrite Core 3



FAQ:

Q1: Do you offer customized product ?
A: Yes, we can develop a new mold at you need if you can provide us with the samples or drawings and specification.


Q2: Are you a factory?
A: Yes, we are an ISO9001 manufacturer, an integration of EMI filter R&D, production and sales since 2009.


Q3: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.


Q4: How about the payment terms?
A: We usually require T/T in advance. If the amount is more than 5000USD, we can negotiate about the payment term,like 70% deposit in advance 30% pay before delivery, etc.
Q5: How about the certificates?
A:ISO9001,CE, TUV, UL, ROHS, CQC, REACH etc.


Q6: How about the sample?
A: Free samples. You need to pay for Currier cost. Please contact us for details.

Q7: What are services available after-sale?

A: Free replacement within three-month, free maintenance within six-year, life-long maintenance.
