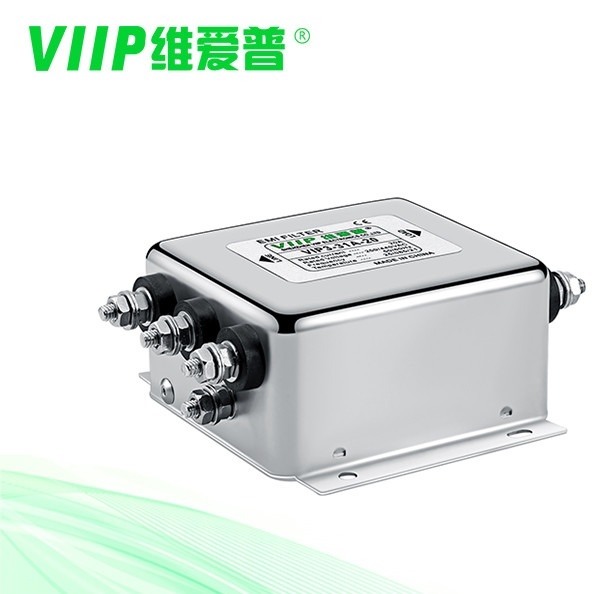

Servo AC Input Filter , EMC Emi Filter 220v For Process Industry

Brand Name:	VIIP WeiAiPu
Model Number:	VIP3-31A-10
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Product Name:

AC 3 PHASE EMI FILTERS

Rated Voltage:

110/250VAC

Rated Current:

5 PCS

Type:

EMC Filter

Certification:

CE ROHS

Input Impedance:

500VDC/100MOHM MIN

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

EMC AC Input Filter

220v AC Input Filter

Process Industry EMC Emi Filter

Product Description

EMI EMC Servo Filter AC Input Filter Emi Filter 220v For Process Industry

Description:

1, Rated currents from 0.5 to 2000A

2, High attenuation performance up to 30 MHz

3, Voltage rating 440VAC for worldwide acceptance

4, Approvals: CE, ROHS

5, 520V AC ,690V AC can be optional

Specification:

Item	VIIP 3-phase 3-line EMI filter
Part Number	VIP3-31A
Rated voltage	250/440VAC,50/60Hz
Operating frequency	DC to 60Hz
Rated currents	3~200A@40°C
Hipot Rating	L-L 2250VDC
	L-G 2700VDC
Climatic category	-25°C~+85°C(25/85/21)
Design corresponding to	UL1283, CSA C22.2 No.8,
	IEC/EN 60939,
	CQC GB 15288/GB 15287-2008
Flammability	UL 94V-0

Specifications:

	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals	Weight [g]
VIP3-31A-06	6A	<2.0mA	Fig 1	Fig 1	M4	380
VIP3-31A-10	10A	<2.0mA	Fig 1	Fig 1	M4	510
VIP3-31A-20	20A	<2.0mA	Fig 1	Fig 1	M4	600
VIP3-31A-30	30A	<2.0mA	Fig 1	Fig 1	M6	640
VIP3-31A-40	40A	<2.0mA	Fig 1	Fig 1	M6	640
VIP3-31A-50	50A	<3.0mA	Fig 2	Fig 1	M6	1000
VIP3-31A-80	80A	<7.0mA	Fig 2	Fig 1	M8	3000
VIP3-31A-100	100A	<7.0mA	Fig 2	Fig 1	M8	3000
VIP3-31A-150	150A	<7.0mA	Fig 2	Fig 1	M10	3200
VIP3-31A-200	200A	<7.0mA	Fig 2	Fig 1	M10	3200

Electrical schematic:

Servo AC Input Filter , EMC Emi Filter 220v For Process Industry 0

Mechanical Dimension(Unit: mm)

	A	B	C	E	F	G	H	I	J	K	L	M	N	p	Q
6A	72	65	38	85	106	45	75	Φ4.0	6	40	26	12	42	22 5	M4

10A	72	65	38	85	106	45	75	Φ4.0	6	40	26	12	42	22 5	M4

20A	72	65	38	85	104	45	75	Φ4.0	6	40	26	12	3 3	22 5	M4

30A	96	80	42	105	137	50	95	Φ4.0	6	42	26	9	3 6	29 5	M6

40A	96	80	42	105	137	50	95	Φ4.0	6	42	26	9	36	29 5	M6

50A	120	100	50	130	160	60	115	Φ4.0	6	50	28	10	3 1	25	M6

80A	200	127	80	170	264	116	150	Φ6 0	9	70	50	20	9	46	M8

100A	200	127	80	170	264	116	150	Φ6 0	9	70	50	20	9	46	M8

150A	200	127	80	170	264	116	150	Φ6 0	9	70	50	20	48	46	M10

200A	200	127	80	170	263	116	150	Φ6 0	9	70	50	20	44	46	M10

tolerance	士1	±1	±1	土1	士1	士0 5	士0 5	士0 5	土0 5	士0 5	土0 5	士0 5	士0 5	±0 5

Applications:

such as print machine

packing machine

textile equipment

industry air conditioner

UPS

medical equipment

Our Advantages

(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.

(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.

(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.

(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements

Tags:

3 Phase Ac Line Filter 15A

3 Phase EMC Filter With Screw

380V 440V Noise Filte 3 Phase
