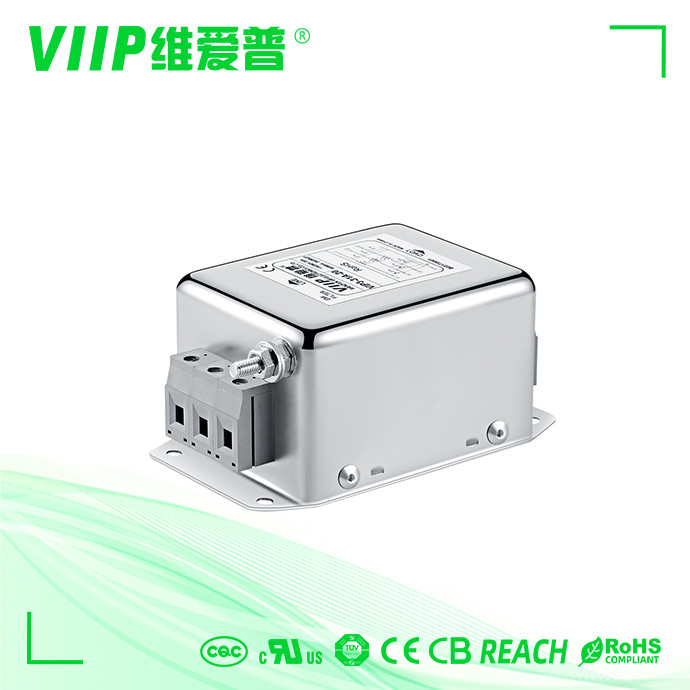

Electronic Ac Three Phase Inverter Emc Emi Filter For Semiconductor Machinery

Electronic Ac Three Phase Inverter Emc Emi Filter For Semiconductor Machinery
Electronic Ac Three Phase Inverter Emc Emi Filter For Semiconductor Machinery
Electronic Ac Three Phase Inverter Emc Emi Filter For Semiconductor Machinery Electronic Ac Three Phase Inverter Emc Emi Filter For Semiconductor Machinery

Large Image :  Electronic Ac Three Phase Inverter Emc Emi Filter For Semiconductor Machinery

Product Details:
Place of Origin: China
Brand Name: VIIP
Certification: CE TUV UL ROHS REACH
Model Number: VIP3-31A-50
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs within 10-15 days

Electronic Ac Three Phase Inverter Emc Emi Filter For Semiconductor Machinery

Description
Product Name: AC 3 PHASE EMI FILTERS Rated Voltage: 110/250VAC
Rated Current: 50A MOQ: 5 PCS
Type: EMC Filter Certification: CE ROHS
High Light:

Electronic Emc Emi Filter

,

Semiconductor Machinery Emc Emi Filter

,

3 Phase EMI Filter 250VAC

Electronic Ac Three Phase Inverter Emc Emi Filter For Semiconductor Machinery



VIP3-32B-50(B032S0925) Rev 4.0.pdf
Description:




Protection against interference of voltage.

Advanced two-stage filtering circuits with high saturating resistant toroidal inductors

Customized products according to customer's requirements

Specification:

Item VIIP 3-phase 3-line EMI filter
Part Number VIP3-31A-50
Rated voltage 250/440VAC,50/60Hz
Operating frequency DC to 60Hz
Rated currents 3~200A@40°C
Hipot Rating L-L 2250VDC
  L-G 2700VDC
Climatic category -25°C~+85°C(25/85/21)
Design corresponding to UL1283, CSA C22.2 No.8,
  IEC/EN 60939,
  CQC GB 15288/GB 15287-2008
port  Shenzhen









Specifications:

  Rated Current [A] 250VAC/50Hz @ 20C
Leakage Current [mA]
Physical Dimensions Electrical Schematics Terminals Weight [g]
VIP3-31A-06 6A <2.0mA Fig 1 Fig 1 M4 380
VIP3-31A-10 10A <2.0mA Fig 1 Fig 1 M4 510
VIP3-31A-20 20A <2.0mA Fig 1 Fig 1 M4 600
VIP3-31A-30 30A <2.0mA Fig 1 Fig 1 M6 640
VIP3-31A-40 40A <2.0mA Fig 1 Fig 1 M6 640
VIP3-31A-50 50A <3.0mA Fig 2 Fig 1 M6 1000
VIP3-31A-80 80A <7.0mA Fig 2 Fig 1 M8 3000
VIP3-31A-100 100A <7.0mA Fig 2 Fig 1 M8 3000
VIP3-31A-150 150A <7.0mA Fig 2 Fig 1 M10 3200
VIP3-31A-200 200A <7.0mA Fig 2 Fig 1 M10 3200



Electrical schematic:
Electronic Ac Three Phase Inverter Emc Emi Filter For Semiconductor Machinery 0
Mechanical Dimension(Unit: mm)


Applications:


Applications requiring high-frequency attenuation

High power office equipment

Office and data processing equipment

Our Advantages

(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.
(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.
(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.
(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements
