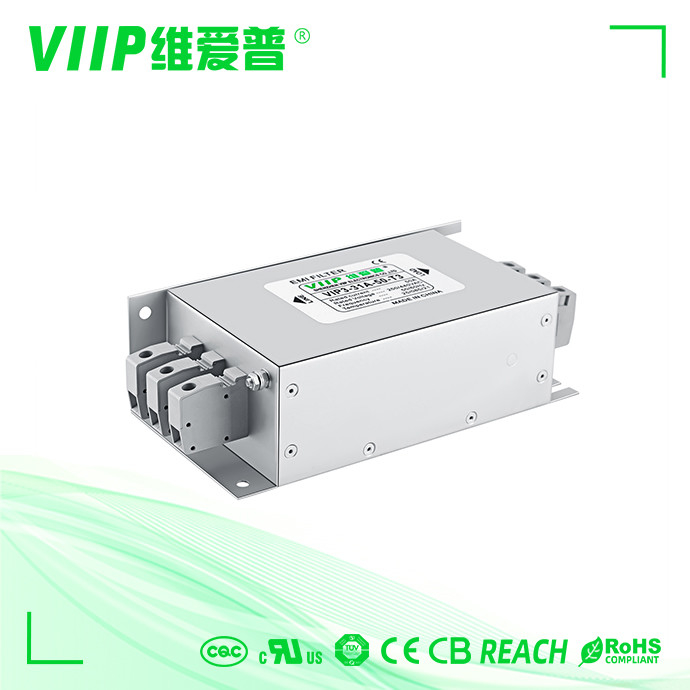

Low Leakage Current Three Phase Emi Filter For Packaging Machinery

Brand Name:	VIIP WeiAiPu
Model Number:	VIP3-32B-50
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Product Name:

AC 3 PHASE EMI FILTERS

Rated Voltage:

110/250VAC

Rated Current:

5 PCS

Type:

EMC Filter

Application:

Electronic Equipments, Laser Equipment

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

Three Phase Emi Filter CE

50A Three Phase Emi Filter

110VAC 3 Phase EMI Filter

Product Description

three phase emi filter for Packaging machinery Low leakage current

VIP3-32B-50(B032S0709) Rev 4.0.pdf

3-phase 3-line EMI filterSpecification:

Item	VIIP 3-phase 3-line EMI filter
Part Number	VIP3-32B-50
Rated voltage	250/440VAC,50/60Hz
Operating frequency	DC to 60Hz
Rated currents	3~200A@40°C
Hipot Rating	L-L 2250VDC
	L-G 2700VDC
Climatic category	-25°C~+85°C(25/85/21)
Design corresponding to	UL1283, CSA C22.2 No.8,
	IEC/EN 60939,
	CQC GB 15288/GB 15287-2008
Samples	on stock

3-phase 3-line EMI filter Specifications:

Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals	Weight [g]
VIP3-32B-10	10A	<4.0mA	Fig 2	Fig 1	M4	1400
VIP3-32B-20	20A	<4.0mA	Fig 2	Fig 1	M4	1400
VIP3-32B-50	50A	<6.0mA	Fig 2	Fig 1	M6	1600
VIP3-32B-100	100A	<6.0mA	Fig 2	Fig 1	M8	3700
VIP3-32B-150	150A	<6.0mA	Fig 2	Fig 1	M10	7000
VIP3-32B-200	200A	<6.0mA	Fig 2	Fig 1	M10	7000
VIP3-32C-06	6A	<4.0mA	Fig 2	Fig 2	M4	650
VIP3-32C-10	10A	<4.0mA	Fig 1	Fig 2	M4	650
VIP3-32C-20	20A	<10.0mA	Fig 1	Fig 2	M4	1400
VIP3-32C-50	50A	<10.0mA	Fig 2	Fig 2	M6	3200

Electrical schematic:

Low Leakage Current Three Phase Emi Filter For Packaging Machinery 0

Mechanical Dimension(Unit: mm)

		A	B	C	E	F	G	H		J	K	L	M	N	p	Q
VIP3-32B	10A	120	100	50	130	153	60	115	Φ4 0	6	50	28	10	39	25	M4

	20A	120	100	50	130	151	60	115	Φ4 0	6	50	28	10	3	25	M4

	SOA	150	105	60	135	190	90	120	Φ4 0	6	50	35	15	31	52 5	M6

	100A	200	127	80	170	269	116	150	Φ60	9	70	50	20	9	46	MB

	150A	260	170	100	220	324	172	196	Φ80	12	90	65	30	46	63	M10

	200A	260	170	100	220	323	172	196	Φ80	12	90	65	30	42	63	M10

VIP3-32C	6A	96	80	42	105	131	50	95	Φ4 0	6	42	26	9	32	29 5	M4

	10A	96	80	42	105	130	50	95	Φ4 0	6	42	26	9	42	29 5	M4

	20A	120	100	50	130	151	60	115	Φ4 0	6	50	28	10	3	25	M4

	SOA	200	127	80	170	240	116	150	Φ60	9	70	50	20	31	46	M6

Tolerances		±1	±1	土1	±1	±1	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5

3-phase 3-line EMI filter Typical Applications:

Applications requiring high-frequency attenuation
High power office equipment
Office and data processing equipment

FAQ

About VIIP
Q:Are you manafacturer or trading company?
Shenzhen VIIP is a manafacturer forEMI/EMC Products located in Shenzhen Guangdong China.

About Products
Q:What certification do you have for your products?
We have got CE ROHS FCC and so on.
Q:What is your MOQ?
It depends on different items,we have low MOQ request ,because we have a big warehouse for stock orders.
Q:What shipping ways do you support for delivery?
We support air, sea and railway shipment.

About Sample Order
Q: Can I have a sample order for your products?
A: Yes, we offer product samples, including mixed samples.
