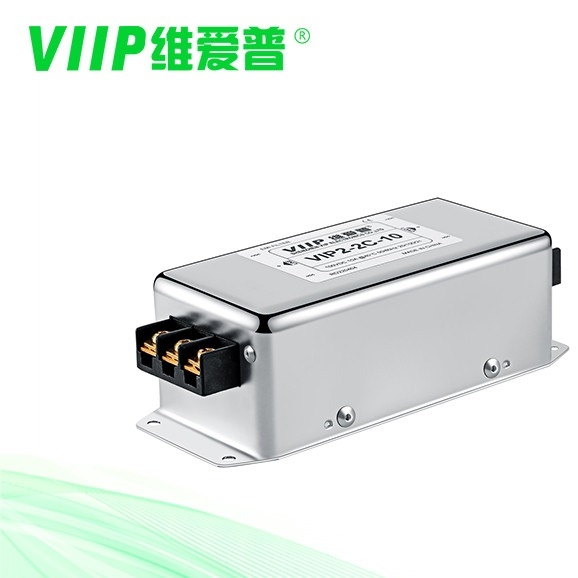

High Performance Multi Stage Three Phase EMI Power Line Filter For Machine Tools
VIP3-31A-40(B031T0906) Rev 4.0 Stud.pdf
Features:
-- Protection against interference of voltage
-- Industry-standard EMC solution for three-phase PDS filtering
-- Customized products according to customer's requirements.
Typical Applications:
-- For photovoltaic systems and industrial applications
-- Three-phase motor drives
-- Energy conversion devices (inverters, converters)
-- Industrial automation equipment
Specification:
| Item | VIIP 3-phase 3-line EMI filter |
| Part Number | VIP3-32B-80 |
| Rated voltage | 250/440VAC,50/60Hz |
| Operating frequency | DC to 60Hz |
| Rated currents | 3~200A@40°C |
| Hipot Rating | L-L 2250VDC |
| L-G 2700VDC | |
| Climatic category | -25°C~+85°C(25/85/21) |
| Design corresponding to | UL1283, CSA C22.2 No.8, |
| IEC/EN 60939, | |
| CQC GB 15288/GB 15287-2008 | |
| Flammability | UL 94V-0 |
Specifications:
| Part No. | Rated Current [A] | 250VAC/50Hz@20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Termial | Weight [g] |
| VIP3-32B-10 | 10A | <4 OmA | Fig 2 | Fig1 | M4 | 1400 |
| VIP3-32B-20 | 20A | <4 OmA | Fig 2 | Fig1 | M4 | 1400 |
| VIP3-32B-50 | 50A | <60mA | Fig 2 | Fig 1 | M6 | 1600 |
| VIP3-32B-100 | 100A | <60mA | Fig 2 | Fig1 | MS | 3700 |
| VIP3-32B-150 | 150A | <60mA | Fig 2 | Fig1 | M10 | 7000 |
| VIP3-32B-200 | 200A | <60mA | Fig 2 | Fig1 | M10 | 7000 |
| VIP3-32C-06 | 6A | <4 OmA | Fig 2 | Fig 2 | M4 | 650 |
| VIP3-32C-10 | 10A | <4 OmA | Fig1 | Fig 2 | M4 | 650 |
| VIP3-32C-20 | 20A | <10 OmA | Fig1 | Fig 2 | M4 | 1400 |
| VIP3-32C-50 | 50A | <15 OmA | Fig 2 | Fig 2 | M6 | 3200 |
Electrical schematic:
Mechanical Dimension(Unit: mm)
Our Company
We have UL; cUL; TUV; CQC; CE; ROHS; ISO9001:2015; REACH certification to ensure the product quality
We have the relevant professional experimental equipment, so we can provide a free diagnostic conducting test for you.
Free EMC rectification technical support and provide free test sample
Automation technology, scale production, excellent price
Good service, fast delivery!
Cooperate with the top scientific research laboratory
We have a professional R&D team
|
|
