Product Details:
|
| Type: | EMI Filter | Package Type: | Sheet Or Roll Shape |
|---|---|---|---|
| Rated Voltage: | 120/250VAC | Line To Ground: | 2250V DC |
| Operating Frequency: | 50/60HZ | Item: | 3 Phase Emi Filter |

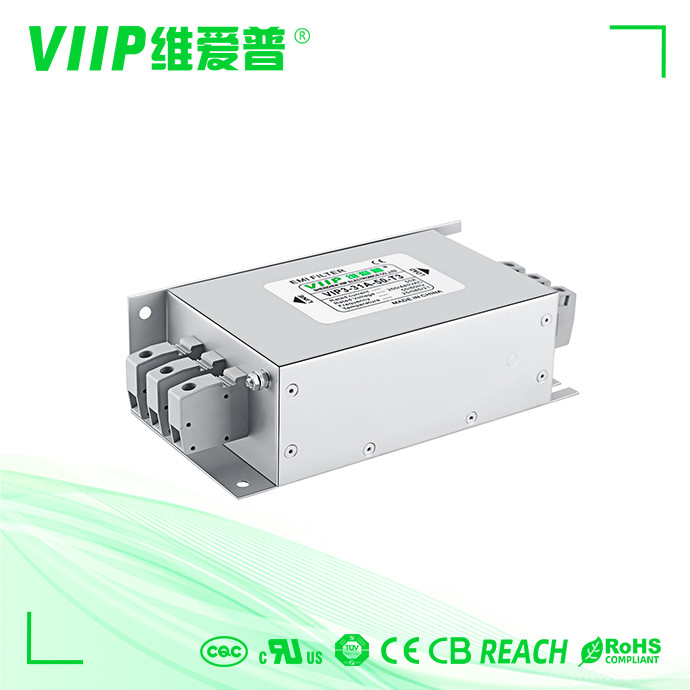

3 Phase Single Phase Power Filter For Industrial Automation Equipment
VIP3-31A-80(B031S0899) Rev 4.0.pdf
Description:
1, Rated currents from 0.5 to 2000A
2, High attenuation performance up to 30 MHz
3, Voltage rating 440VAC for worldwide acceptance
4, Approvals: CE, ROHS
5, 520V AC ,690V AC can be optional
Specification:
| Item | VIIP 3-phase 3-line EMI filter |
| Part Number | VIP3-31A-80 |
| Rated voltage | 250/440VAC,50/60Hz |
| Operating frequency | DC to 60Hz |
| Rated currents | 3~200A@40°C |
| Hipot Rating | L-L 2250VDC |
| L-G 2700VDC | |
| Climatic category | -25°C~+85°C(25/85/21) |
| Design corresponding to | UL1283, CSA C22.2 No.8, |
| IEC/EN 60939, | |
| CQC GB 15288/GB 15287-2008 | |
| Flammability | UL 94V-0 |
Tabulates:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] |
| VIP3-31A-06 | 6A | <2.0mA | Fig 1 | Fig 1 | M4 | 380 |
| VIP3-31A-10 | 10A | <2.0mA | Fig 1 | Fig 1 | M4 | 510 |
| VIP3-31A-20 | 20A | <2.0mA | Fig 1 | Fig 1 | M4 | 600 |
| VIP3-31A-30 | 30A | <2.0mA | Fig 1 | Fig 1 | M6 | 640 |
| VIP3-31A-40 | 40A | <2.0mA | Fig 1 | Fig 1 | M6 | 640 |
| VIP3-31A-50 | 50A | <3.0mA | Fig 2 | Fig 1 | M6 | 1000 |
| VIP3-31A-80 | 80A | <7.0mA | Fig 2 | Fig 1 | M8 | 3000 |
| VIP3-31A-100 | 100A | <7.0mA | Fig 2 | Fig 1 | M8 | 3000 |
| VIP3-31A-150 | 150A | <7.0mA | Fig 2 | Fig 1 | M10 | 3200 |
| VIP3-31A-200 | 200A | <7.0mA | Fig 2 | Fig 1 | M10 | 3200 |
Electrical schematic:
Mechanical Dimension(Unit: mm)
Applications:
such as print machine
packing machine
textile equipment
industry air conditioner
UPS
medical equipment
Laser equipment
