Name: AC Input Low Pass Noise Filter , 3 Phase EMI Filter For Inverter
Brand: Shenzhen VIIP Electronics Co., Ltd.
SKU: VIP3-31A-40
Price: 25.00 USD
Availability: InStock

Brand Name:	VIIP WeiAiPu
Model Number:	VIP3-31A-40
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Product Name:

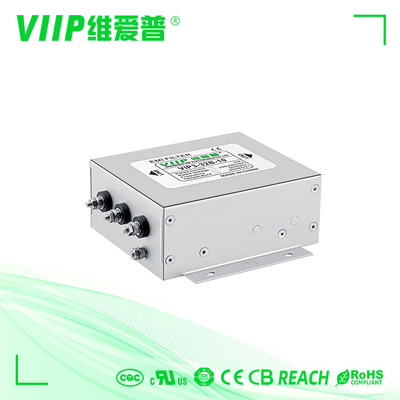

AC 3 PHASE EMI FILTERS

Rated Voltage:

110/250VAC

Rated Current:

40A

MOQ:

5 PCS

Type:

EMC Filter

Application:

Electronic Equipments

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Yes

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

EMI Low Pass Noise Filter

Inverter Low Pass Noise Filter

40A 3 Phase EMI Filter

Product Description

Low Pass Filter Noise Filters AC 3 Phase Input EMI Filter For Inverter

Description:

1, Rated currents from 0.5 to 2000A

2, High attenuation performance up to 30 MHz

3, Voltage rating 440VAC for worldwide acceptance

4, Approvals: CE, ROHS

Specification:

Item	VIIP 3-phase 3-line EMI filter
Part Number	VIP3-31A-40
Rated voltage	250/440VAC,50/60Hz
Operating frequency	DC to 60Hz
Rated currents	3~200A@40°C
Hipot Rating	L-L 2250VDC
	L-G 2700VDC
Climatic category	-25°C~+85°C(25/85/21)
Design corresponding to	UL1283, CSA C22.2 No.8,
	IEC/EN 60939,
	CQC GB 15288/GB 15287-2008
Flammability	UL 94V-0

Specifications:

Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals	Weight [g]
VIP3-31A-06	6A	<2.0mA	Fig 1	Fig 1	M4	380
VIP3-31A-10	10A	<2.0mA	Fig 1	Fig 1	M4	510
VIP3-31A-20	20A	<2.0mA	Fig 1	Fig 1	M4	600
VIP3-31A-30	30A	<2.0mA	Fig 1	Fig 1	M6	640
VIP3-31A-40	40A	<2.0mA	Fig 1	Fig 1	M6	640
VIP3-31A-50	50A	<3.0mA	Fig 2	Fig 1	M6	1000
VIP3-31A-80	80A	<7.0mA	Fig 2	Fig 1	M8	3000
VIP3-31A-100	100A	<7.0mA	Fig 2	Fig 1	M8	3000
VIP3-31A-150	150A	<7.0mA	Fig 2	Fig 1	M10	3200
VIP3-31A-200	200A	<7.0mA	Fig 2	Fig 1	M10	3200

Electrical schematic:

AC Input Low Pass Noise Filter , 3 Phase EMI Filter For Inverter 0

Mechanical Dimension(Unit: mm)

	A	B	C	E	F	G	H	I	J	K	L	M	N	p	Q
6A	72	65	38	85	106	45	75	Φ4.0	6	40	26	12	42	22 5	M4

10A	72	65	38	85	106	45	75	Φ4.0	6	40	26	12	42	22 5	M4

20A	72	65	38	85	104	45	75	Φ4.0	6	40	26	12	3 3	22 5	M4

30A	96	80	42	105	137	50	95	Φ4.0	6	42	26	9	3 6	29 5	M6

40A	96	80	42	105	137	50	95	Φ4.0	6	42	26	9	36	29 5	M6

50A	120	100	50	130	160	60	115	Φ4.0	6	50	28	10	3 1	25	M6

80A	200	127	80	170	264	116	150	Φ6 0	9	70	50	20	9	46	M8

100A	200	127	80	170	264	116	150	Φ6 0	9	70	50	20	9	46	M8

150A	200	127	80	170	264	116	150	Φ6 0	9	70	50	20	48	46	M10

200A	200	127	80	170	263	116	150	Φ6 0	9	70	50	20	44	46	M10

tolerance	士1	±1	±1	土1	士1	士0 5	士0 5	士0 5	土0 5	士0 5	土0 5	士0 5	士0 5	±0 5

Applications:

such as print machine

packing machine

textile equipment

industry air conditioner

UPS

medical equipment

Our service

Sample

Sample Fee: Negotiate

Sample Time: 3~5 days

Payment

---Payment terms: Western Union, T/T

---Please remember to leave the correct contact information for delivery.

Tags:

3 Phase Ac Line Filter 15A

3 Phase EMC Filter With Screw

380V 440V Noise Filte 3 Phase

Products Details

Home > Products >

3 Phase EMI Filter

AC Input Low Pass Noise Filter , 3 Phase EMI Filter For Inverter

All Category

EMC EMI Filter

Single Phase EMI Filter

3 Phase EMI Filter

Ferrite Rings Around Cables

DC EMI Filters

AC EMI Filter

IEC EMI Filter

Military EMI Filters

Inverter EMI Filter

PCB Low Pass Filter

EMI Suppression Filter

Clip On Ferrite Core

Snap On Ferrite Choke

EMI Ferrite Core

Flat Ferrite Core

AC Input Low Pass Noise Filter , 3 Phase EMI Filter For Inverter

Brand Name:	VIIP WeiAiPu
Model Number:	VIP3-31A-40
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

VIIP WeiAiPu

Certification:

CE TUV UL CQC

Model Number:

VIP3-31A-40

Product Name:

AC 3 PHASE EMI FILTERS

Rated Voltage:

110/250VAC

Rated Current:

40A

MOQ:

5 PCS

Type:

EMC Filter

Application:

Electronic Equipments

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Yes

Humidity:

≤95%RH

Minimum Order Quantity:

1 PCS

Price:

Negotiable

Packaging Details:

33*33*18

Delivery Time:

5-10 Days for samples

Payment Terms:

T/T

Supply Ability:

2000 pcs within 10-15 days

Highlight:

EMI Low Pass Noise Filter

Inverter Low Pass Noise Filter

40A 3 Phase EMI Filter

Product Description

Low Pass Filter Noise Filters AC 3 Phase Input EMI Filter For Inverter

Description:

1, Rated currents from 0.5 to 2000A

2, High attenuation performance up to 30 MHz

3, Voltage rating 440VAC for worldwide acceptance

4, Approvals: CE, ROHS

Specification:

Item	VIIP 3-phase 3-line EMI filter
Part Number	VIP3-31A-40
Rated voltage	250/440VAC,50/60Hz
Operating frequency	DC to 60Hz
Rated currents	3~200A@40°C
Hipot Rating	L-L 2250VDC
	L-G 2700VDC
Climatic category	-25°C~+85°C(25/85/21)
Design corresponding to	UL1283, CSA C22.2 No.8,
	IEC/EN 60939,
	CQC GB 15288/GB 15287-2008
Flammability	UL 94V-0

Specifications:

Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals	Weight [g]
VIP3-31A-06	6A	<2.0mA	Fig 1	Fig 1	M4	380
VIP3-31A-10	10A	<2.0mA	Fig 1	Fig 1	M4	510
VIP3-31A-20	20A	<2.0mA	Fig 1	Fig 1	M4	600
VIP3-31A-30	30A	<2.0mA	Fig 1	Fig 1	M6	640
VIP3-31A-40	40A	<2.0mA	Fig 1	Fig 1	M6	640
VIP3-31A-50	50A	<3.0mA	Fig 2	Fig 1	M6	1000
VIP3-31A-80	80A	<7.0mA	Fig 2	Fig 1	M8	3000
VIP3-31A-100	100A	<7.0mA	Fig 2	Fig 1	M8	3000
VIP3-31A-150	150A	<7.0mA	Fig 2	Fig 1	M10	3200
VIP3-31A-200	200A	<7.0mA	Fig 2	Fig 1	M10	3200

Electrical schematic:

AC Input Low Pass Noise Filter , 3 Phase EMI Filter For Inverter 0

Mechanical Dimension(Unit: mm)

	A	B	C	E	F	G	H	I	J	K	L	M	N	p	Q
6A	72	65	38	85	106	45	75	Φ4.0	6	40	26	12	42	22 5	M4

10A	72	65	38	85	106	45	75	Φ4.0	6	40	26	12	42	22 5	M4

20A	72	65	38	85	104	45	75	Φ4.0	6	40	26	12	3 3	22 5	M4

30A	96	80	42	105	137	50	95	Φ4.0	6	42	26	9	3 6	29 5	M6

40A	96	80	42	105	137	50	95	Φ4.0	6	42	26	9	36	29 5	M6

50A	120	100	50	130	160	60	115	Φ4.0	6	50	28	10	3 1	25	M6

80A	200	127	80	170	264	116	150	Φ6 0	9	70	50	20	9	46	M8

100A	200	127	80	170	264	116	150	Φ6 0	9	70	50	20	9	46	M8

150A	200	127	80	170	264	116	150	Φ6 0	9	70	50	20	48	46	M10

200A	200	127	80	170	263	116	150	Φ6 0	9	70	50	20	44	46	M10

tolerance	士1	±1	±1	土1	士1	士0 5	士0 5	士0 5	土0 5	士0 5	土0 5	士0 5	士0 5	±0 5

Applications:

such as print machine

packing machine

textile equipment

industry air conditioner

UPS

medical equipment

Our service

Sample

Sample Fee: Negotiate

Sample Time: 3~5 days

Payment

---Payment terms: Western Union, T/T

---Please remember to leave the correct contact information for delivery.

Tags:
