| Brand Name: | VIIP |
| Model Number: | VIP3-32B-80 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 33*33*18 |
| Payment Terms: | T/T, Western Union |

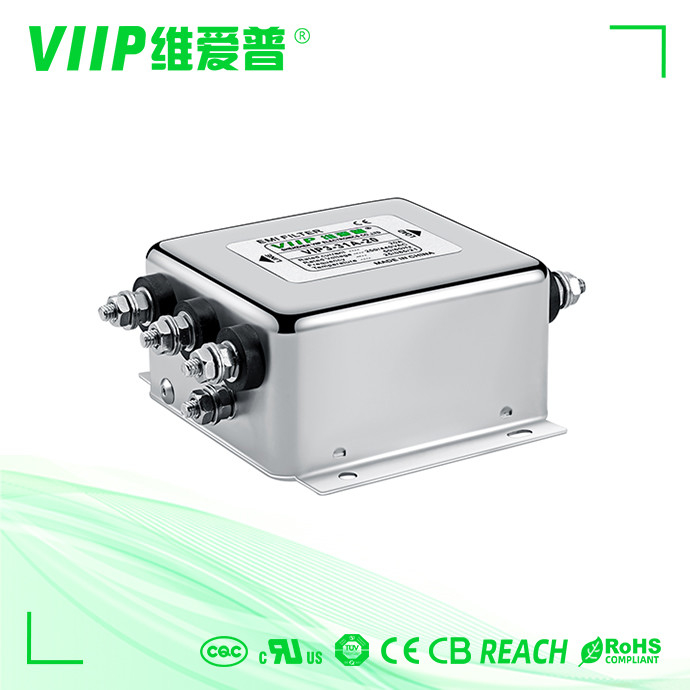

380V 440V EMI EMC Low Pass Power Line 3 Phase Filter Power Emi Filter
Description:
1, Rated currents from 0.5 to 2000A
2, High attenuation performance up to 30 MHz
3, Voltage rating 440VAC for worldwide acceptance
4, Approvals: CE, ROHS
Specification:
| Item | 3 Phase EMI Filter |
| Model | 3 Phase EMI Filter - VIP3 Series |
| Original of country | China |
| Package Type | Surface Mount |
| Nominal working Frequency | 150K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 380V/440V |
| Current | 80A |
| MOQ | 1 PCS |
| Temperature | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 2250VDC |
| Line to Ground | 2700VDC |
| 110VAC/60HZ 1.4mA | |
| MOQ | 5pcs |
| Port | Shenzhen |
| Leading Time | 3~15 weekday for Low Pass EMI Filter |
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] |
| VIP3-32B-10 | 10A | <4.0mA | Fig 2 | Fig 1 | M4 | 1400 |
| VIP3-32B-20 | 20A | <4.0mA | Fig 2 | Fig 1 | M4 | 1400 |
| VIP3-32B-50 | 50A | <6.0mA | Fig 2 | Fig 1 | M6 | 1600 |
| VIP3-32B-100 | 100A | <6.0mA | Fig 2 | Fig 1 | M8 | 3700 |
| VIP3-32B-150 | 150A | <6.0mA | Fig 2 | Fig 1 | M10 | 7000 |
| VIP3-32B-200 | 200A | <6.0mA | Fig 2 | Fig 1 | M10 | 7000 |
| VIP3-32C-06 | 6A | <4.0mA | Fig 2 | Fig 2 | M4 | 650 |
| VIP3-32C-10 | 10A | <4.0mA | Fig 1 | Fig 2 | M4 | 650 |
| VIP3-32C-20 | 20A | <10.0mA | Fig 1 | Fig 2 | M4 | 1400 |
| VIP3-32C-50 | 50A | <10.0mA | Fig 2 | Fig 2 | M6 | 3200 |
Specifications:
Mechanical Dimension(mm):
Electrical schematic:
| A | B | C | E | F | G | H | J | K | L | M | N | p | Q | |||
| VIP3-32B | 10A | 120 | 100 | 50 | 130 | 153 | 60 | 115 | Φ4 0 | 6 | 50 | 28 | 10 | 39 | 25 | M4 |
| 20A | 120 | 100 | 50 | 130 | 151 | 60 | 115 | Φ4 0 | 6 | 50 | 28 | 10 | 3 | 25 | M4 | |
| SOA | 150 | 105 | 60 | 135 | 190 | 90 | 120 | Φ4 0 | 6 | 50 | 35 | 15 | 31 | 52 5 | M6 | |
| 100A | 200 | 127 | 80 | 170 | 269 | 116 | 150 | Φ60 | 9 | 70 | 50 | 20 | 9 | 46 | MB | |
| 150A | 260 | 170 | 100 | 220 | 324 | 172 | 196 | Φ80 | 12 | 90 | 65 | 30 | 46 | 63 | M10 | |
| 200A | 260 | 170 | 100 | 220 | 323 | 172 | 196 | Φ80 | 12 | 90 | 65 | 30 | 42 | 63 | M10 | |
| VIP3-32C | 6A | 96 | 80 | 42 | 105 | 131 | 50 | 95 | Φ4 0 | 6 | 42 | 26 | 9 | 32 | 29 5 | M4 |
| 10A | 96 | 80 | 42 | 105 | 130 | 50 | 95 | Φ4 0 | 6 | 42 | 26 | 9 | 42 | 29 5 | M4 | |
| 20A | 120 | 100 | 50 | 130 | 151 | 60 | 115 | Φ4 0 | 6 | 50 | 28 | 10 | 3 | 25 | M4 | |
| SOA | 200 | 127 | 80 | 170 | 240 | 116 | 150 | Φ60 | 9 | 70 | 50 | 20 | 31 | 46 | M6 | |
| Tolerances | ±1 | ±1 | 土1 | ±1 | ±1 | 土0 5 | 土0 5 | 土0 5 | 土0 5 | 土0 5 | 土0 5 | 土0 5 | 土0 5 | 土0 5 | ||
Applications:
-- For photovoltaic systems and industrial applications
-- Three-phase motor drives
-- UPS/SMPS
-- Industrial automation equipment
|
|
