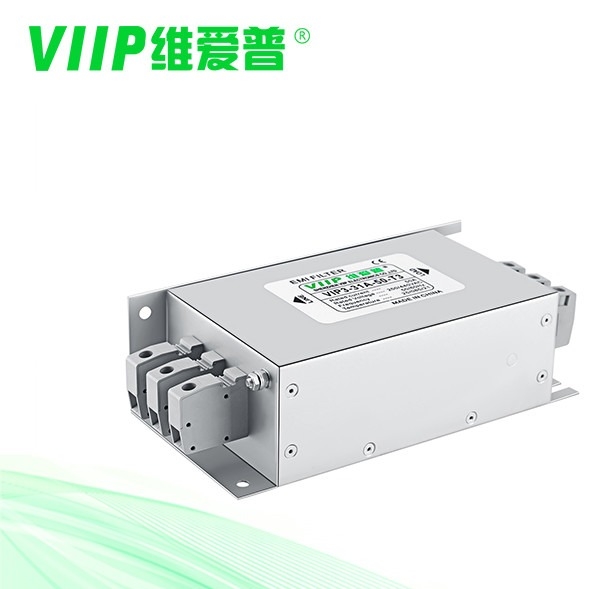

3 Phase Ac Emc Emi Power Filter For Industrial Air Conditioner

Brand Name: VIIP WeiAiPu
Model Number: VIP3-32B-200
MOQ: 1 PCS
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE TUV UL CQC
Transfer Function:
General Purpose
Rated Voltage:
110/250VAC
Rated Current:
200A
Application:
Medical Equipment
Case:
Metal
Product Name:
3 Phase Emi Filter
Input Impedance:
500VDC/100MOHM MIN
Frequency Range:
150 KHz To 30 GHz
Storage Temperature:
-40℃~+85℃
Item:
EMI Filter
Operating Frequency:
50/60HZ
Nominal Center Frequency:
50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)
Dimensions:
Varies Depending On Model
Port:
Shenzhen
Termination Style:
Solder Pins
Rated Current:
Different
Weight:
290g-1000g
Insulation Resistance:
≥100MΩ
Rohs Compliant:
Yes
Humidity:
≤95%RH
Supply Ability:
2000 pcs within 10-15 days
Highlight:

Emc Emi Power Filter

,

UL Emi Power Filter

,

Ac 3 Phase EMI Filter

Product Description

3 Phase Ac Emc Emi Power Filter For Industrial Air Conditioner







Description:



suitable for three phase three line power supply

compact structure ,simple and time-saving installation,specially suitable for applications with limited space ,highly cost effective

Specification

Item 3 phase emi  Filter
Model VIP3-32B-200
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 150K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 110V/250V
Rated Current 200A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 2250VDC
Line to Ground 2700VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 1pcs
Applications Laser equipment
leading time 5~15 weekdays





Features:

  • Protection against interference of voltage.
  • Advanced two-stage filtering circuits with high saturating resistant toroidal inductors
  • Customized products according to customer's requirements



More details:



Part No. Rated Current [A] 250VAC/50Hz @ 20C
Leakage Current [mA]		 Physical Dimensions Electrical Schematics Terminals Weight [g]
VIP3-32B-10 10A <4.0mA Fig 2 Fig 1 M4 1400
VIP3-32B-20 20A <4.0mA Fig 2 Fig 1 M4 1400
VIP3-32B-50 50A <6.0mA Fig 2 Fig 1 M6 1600
VIP3-32B-100 100A <6.0mA Fig 2 Fig 1 M8 3700
VIP3-32B-150 150A <6.0mA Fig 2 Fig 1 M10 7000
VIP3-32B-200 200A <6.0mA Fig 2 Fig 1 M10 7000
VIP3-32C-06 6A <4.0mA Fig 2 Fig 2 M4 650
VIP3-32C-10 10A <4.0mA Fig 1 Fig 2 M4 650
VIP3-32C-20 20A <10.0mA Fig 1 Fig 2 M4 1400
VIP3-32C-50 50A <10.0mA Fig 2 Fig 2 M6 3200



Electrical schematic:



3 Phase Ac Emc Emi Power Filter For Industrial Air Conditioner 0



Mechanical Dimension(mm):

3 Phase Ac Emc Emi Power Filter For Industrial Air Conditioner 1



　 　 A B C E F G H 　 J K L M N p Q
VIP3-32B 10A 120 100 50 130 153 60 115 Φ4 0 6 50 28 10 39 25 M4
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
20A 120 100 50 130 151 60 115 Φ4 0 6 50 28 10 3 25 M4
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
SOA 150 105 60 135 190 90 120 Φ4 0 6 50 35 15 31 52  5 M6
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
100A 200 127 80 170 269 116 150 Φ60 9 70 50 20 9 46 MB
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
150A 260 170 100 220 324 172 196 Φ80 12 90 65 30 46 63 M10
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
200A 260 170 100 220 323 172 196 Φ80 12 90 65 30 42 63 M10
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
VIP3-32C 6A 96 80 42 105 131 50 95 Φ4 0 6 42 26 9 32 29  5 M4
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
10A 96 80 42 105 130 50 95 Φ4 0 6 42 26 9 42 29  5 M4
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
20A 120 100 50 130 151 60 115 Φ4 0 6 50 28 10 3 25 M4
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
SOA 200 127 80 170 240 116 150 Φ60 9 70 50 20 31 46 M6
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
Tolerances ±1 ±1 土1 ±1 ±1 土0   5 土0   5 土0  5 土0  5 土0   5 土0   5 土0  5 土0   5 土0   5 　
