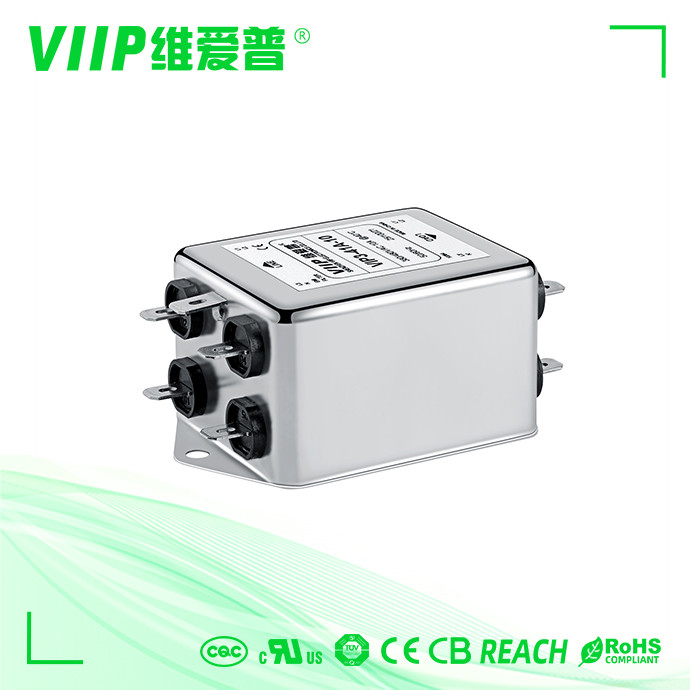

1A-200A 250 / 440VAC Screw Connection 3 Phase Power Line Noise Filter Low Pass EMC

Brand Name:	VIIP WeiAiPu
Model Number:	VIP3-32C-20
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Transfer Function:

General Purpose

Rated Voltage:

110/250VAC

Rated Current:

Application:

Power Management System

Case:

Metal

Product Name:

3 Phase Emi Filter

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

200A Power Line Noise Filter

EMC Power Line Noise Filter

440VAC 3 Phase EMI Filter

Product Description

1A-200A, 250/440VAC, Screw Connection, 3 Phase Power Line Noise Filter With Low Pass EMC Filter

3 phase emi Filter Description:

suitable for three phase three line power supply

compact structure ,simple and time-saving installation,specially suitable for applications with limited space ,highly cost effective

Specification

Item	3 phase emi Filter
Model	VIP3-32C-20
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	20A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	2250VDC
Line to Ground	2700VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max
MOQ	1pcs
Applications	Laser equipment
leading time	5~15 weekdays

Description of 3 phase emi filter:

Rated current: 0.5-2000A

Optional medical versions(H type)

Solder lug, stud or terminal block connection(over 250A it's copper bar)

Custom specific versions on request

Suitable for three-phase three-line power supply

VIP3-32C series are two-stage filters comprising one common mode and one d1fferential mode with enhanced filtering effect of the d1fferential mode interference

Excellent common and differential mode filtering effect for interferance from 10KHz to 30MHz

520VAC or 690VAC high voltage versions optional

Electrical schematic:

Tabulates:

Part No.	Rated Current [A]	250VAC/50Hz@20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Termial	Weight [g]
VIP3-32B-10	10A	<4 OmA	Fig 2	Fig1	M4	1400
VIP3-32B-20	20A	<4 OmA	Fig 2	Fig1	M4	1400
VIP3-32B-50	50A	<60mA	Fig 2	Fig 1	M6	1600
VIP3-32B-100	100A	<60mA	Fig 2	Fig1	MS	3700
VIP3-32B-150	150A	<60mA	Fig 2	Fig1	M10	7000
VIP3-32B-200	200A	<60mA	Fig 2	Fig1	M10	7000
VIP3-32C-06	6A	<4 OmA	Fig 2	Fig 2	M4	650
VIP3-32C-10	10A	<4 OmA	Fig1	Fig 2	M4	650
VIP3-32C-20	20A	<10 OmA	Fig1	Fig 2	M4	1400
VIP3-32C-50	50A	<15 OmA	Fig 2	Fig 2	M6	3200

Mechanical Dimension(mm):

		A	B	C	E	F	G	H		J	K	L	M	N	p	Q
VIP3-32B	10A	120	100	50	130	153	60	115	Φ4 0	6	50	28	10	39	25	M4

	20A	120	100	50	130	151	60	115	Φ4 0	6	50	28	10	3	25	M4

	SOA	150	105	60	135	190	90	120	Φ4 0	6	50	35	15	31	52 5	M6

	100A	200	127	80	170	269	116	150	Φ60	9	70	50	20	9	46	MB

	150A	260	170	100	220	324	172	196	Φ80	12	90	65	30	46	63	M10

	200A	260	170	100	220	323	172	196	Φ80	12	90	65	30	42	63	M10

VIP3-32C	6A	96	80	42	105	131	50	95	Φ4 0	6	42	26	9	32	29 5	M4

	10A	96	80	42	105	130	50	95	Φ4 0	6	42	26	9	42	29 5	M4

	20A	120	100	50	130	151	60	115	Φ4 0	6	50	28	10	3	25	M4

	SOA	200	127	80	170	240	116	150	Φ60	9	70	50	20	31	46	M6

Tolerances		±1	±1	土1	±1	±1	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5

Features:

Protection against interference of voltage.
Advanced two-stage filtering circuits with high saturating resistant toroidal inductors
Customized products according to customer's requirements

Typical Applications:

Applications requiring high-frequency attenuation
High power office equipment
Office and data processing equipment
