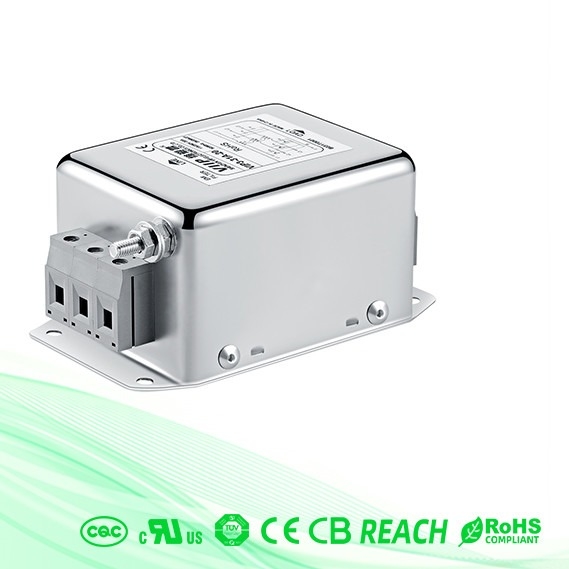

Din Rail Mounted 3 Phase Emi Filter 220v For Industrial Air Conditioner

Din Rail Mounted 3 Phase Emi Filter 220v For Industrial Air Conditioner
Din Rail Mounted 3 Phase Emi Filter 220v For Industrial Air Conditioner
Din Rail Mounted 3 Phase Emi Filter 220v For Industrial Air Conditioner Din Rail Mounted 3 Phase Emi Filter 220v For Industrial Air Conditioner

Large Image :  Din Rail Mounted 3 Phase Emi Filter 220v For Industrial Air Conditioner

Product Details:
Place of Origin: China
Brand Name: VIIP
Model Number: VIP3-31A-60
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs within 10-15 days

Din Rail Mounted 3 Phase Emi Filter 220v For Industrial Air Conditioner

Description
Certification: CE ROHS Product Name: 3 PHASE EMI FILTERS
Rated Voltage: 110/250VAC Rated Current: 80A
MOQ: 5 PCS Type: 3 Phase Filter
High Light:

3 Phase 220v EMI Filter

,

Air Conditioner 220v EMI Filter

,

3 Phase Emi Filter 60Hz

High Quality Din Rail Mounted Emi Filter 3 Phase Emi Filter 220v For Industrial Air Conditioner Filter Samples Available



Features:

  • Protection against interference of voltage.
  • Advanced two-stage filtering circuits with high saturating resistant toroidal inductors
  • Customized products according to customer's requirements



Specification:

Item VIIP 3-phase 3-line EMI filter
Part Number VIP3-31A
Rated voltage 250/440VAC,50/60Hz
Operating frequency DC to 60Hz
Rated currents 3~200A@40°C
Hipot Rating L-L 2250VDC
  L-G 2700VDC
Climatic category -25°C~+85°C(25/85/21)
Design corresponding to UL1283, CSA C22.2 No.8,
  IEC/EN 60939,
  CQC GB 15288/GB 15287-2008
Flammability UL 94V-0





Specifications:





Tabulates

Part No. Rated Current [A] 250VAC/50Hz @ 20C
Leakage Current [mA]
Physical Dimensions Electrical Schematics Terminals Weight [g]
VIP3-31A-06 6A <2.0mA Fig 1 Fig 1 M4 380
VIP3-31A-10 10A <2.0mA Fig 1 Fig 1 M4 510
VIP3-31A-20 20A <2.0mA Fig 1 Fig 1 M4 600
VIP3-31A-30 30A <2.0mA Fig 1 Fig 1 M6 640
VIP3-31A-40 40A <2.0mA Fig 1 Fig 1 M6 640
VIP3-31A-50 50A <3.0mA Fig 2 Fig 1 M6 1000
VIP3-31A-80 80A <7.0mA Fig 2 Fig 1 M8 3000
VIP3-31A-100 100A <7.0mA Fig 2 Fig 1 M8 3000
VIP3-31A-150 150A <7.0mA Fig 2 Fig 1 M10 3200
VIP3-31A-200 200A <7.0mA Fig 2 Fig 1 M10 3200



Electrical schematic:

Din Rail Mounted 3 Phase Emi Filter 220v For Industrial Air Conditioner 0



Mechanical Dimension(Unit: mm)

Din Rail Mounted 3 Phase Emi Filter 220v For Industrial Air Conditioner 1



Applications:



 such as print machine

packing machine

textile equipment

industry air conditioner

UPS

medical equipment
