Product Details:
|
| Product Name: | AC 3 PHASE EMI FILTERS | Rated Voltage: | 110/250VAC |
|---|---|---|---|
| Rated Current: | 10A | MOQ: | 5 PCS |
| Type: | EMC Filter | Certification: | CE ROHS |
| High Light: | 110VAC Power Line Noise Filter,EMC AC Power Line Noise Filter,10A 3 Phase EMI Filter |
||

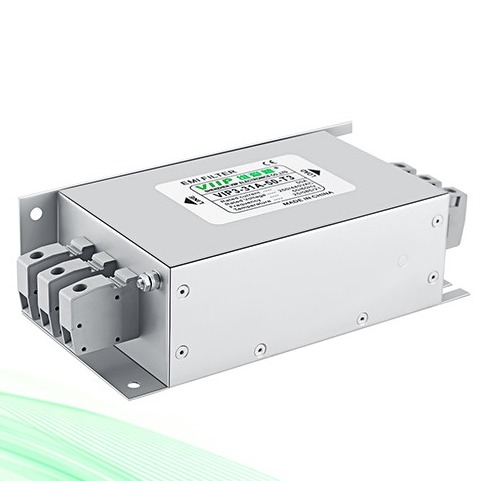

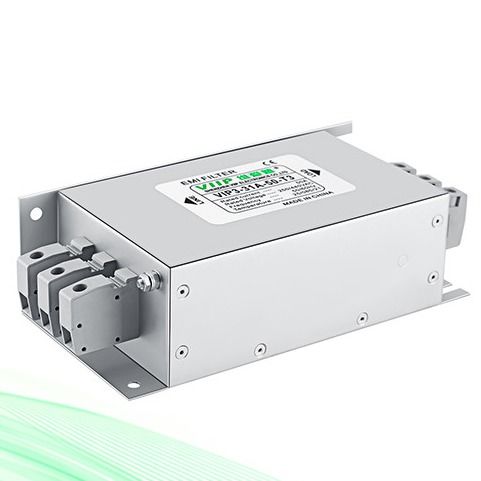

3 Phase Emc Filter Power Supply Single Phase AC Filter 3A EMI Filter
Description:
1, Rated currents from 0.5 to 2000A
2, High attenuation performance up to 30 MHz
3, Voltage rating 440VAC for worldwide acceptance
4, Approvals: CE, ROHS
5, solder lug ,stud or teminal block connection are available
Specification:
| Item | 3 Phase EMI Filter |
| Model | 3 Phase EMI Filter - VIP3 Series |
| Original of country | China |
| Package Type | Surface Mount |
| Nominal working Frequency | 150K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 380V/440V |
| Current | 100A |
| MOQ | 1 PCS |
| Temperature | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 2250VDC |
| Line to Ground | 2700VDC |
| 110VAC/60HZ 1.4mA | |
| MOQ | 5pcs |
| Port | Shenzhen |
| Leading Time | 3~15 weekday for Low Pass EMI Filter |
Specifications:
Tabulates
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] |
| VIP3-31A-06 | 6A | <2.0mA | Fig 1 | Fig 1 | M4 | 380 |
| VIP3-31A-10 | 10A | <2.0mA | Fig 1 | Fig 1 | M4 | 510 |
| VIP3-31A-20 | 20A | <2.0mA | Fig 1 | Fig 1 | M4 | 600 |
| VIP3-31A-30 | 30A | <2.0mA | Fig 1 | Fig 1 | M6 | 640 |
| VIP3-31A-40 | 40A | <2.0mA | Fig 1 | Fig 1 | M6 | 640 |
| VIP3-31A-50 | 50A | <3.0mA | Fig 2 | Fig 1 | M6 | 1000 |
| VIP3-31A-80 | 80A | <7.0mA | Fig 2 | Fig 1 | M8 | 3000 |
| VIP3-31A-100 | 100A | <7.0mA | Fig 2 | Fig 1 | M8 | 3000 |
| VIP3-31A-150 | 150A | <7.0mA | Fig 2 | Fig 1 | M10 | 3200 |
| VIP3-31A-200 | 200A | <7.0mA | Fig 2 | Fig 1 | M10 | 3200 |
Electrical schematic:
Mechanical Dimension(Unit: mm)
Applications:
such as print machine
packing machine
textile equipment
industry air conditioner
UPS
medical equipment
