| Brand Name: | VIIP |
| Model Number: | VIP3-31A-100 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 33*33*18 |
| Payment Terms: | T/T, Western Union |

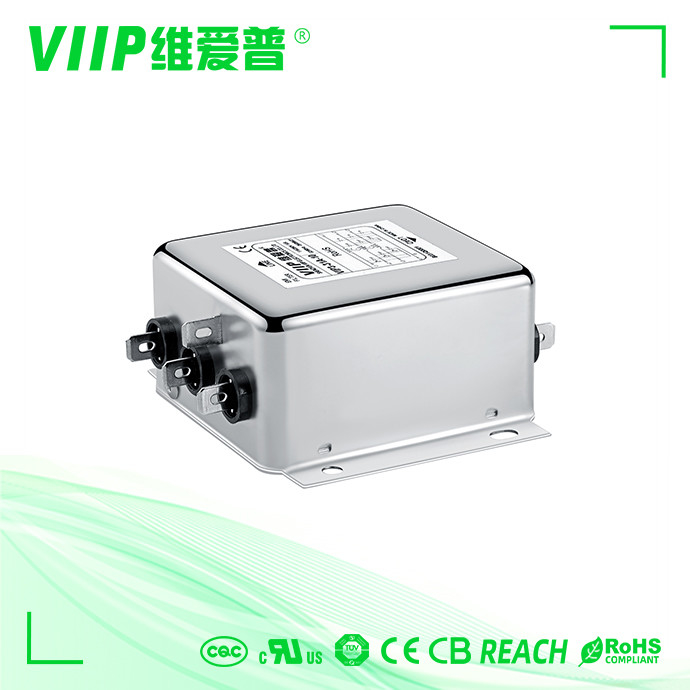

3 Phase Emc Filter Power Supply Single Phase AC Filter 3A EMI Filter
Description:
1, Rated currents from 0.5 to 2000A
2, High attenuation performance up to 30 MHz
3, Voltage rating 440VAC for worldwide acceptance
4, Approvals: CE, ROHS
Specification:
| Item | 3 Phase EMI Filter |
| Model | 3 Phase EMI Filter - VIP3 Series |
| Original of country | China |
| Package Type | Surface Mount |
| Nominal working Frequency | 150K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 380V/440V |
| Current | 100A |
| MOQ | 1 PCS |
| Temperature | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 2250VDC |
| Line to Ground | 2700VDC |
| 110VAC/60HZ 1.4mA | |
| MOQ | 5pcs |
| Port | Shenzhen |
| Leading Time | 3~15 weekday for Low Pass EMI Filter |
Specifications:
Tabulates
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] |
| VIP3-31A-06 | 6A | <2.0mA | Fig 1 | Fig 1 | M4 | 380 |
| VIP3-31A-10 | 10A | <2.0mA | Fig 1 | Fig 1 | M4 | 510 |
| VIP3-31A-20 | 20A | <2.0mA | Fig 1 | Fig 1 | M4 | 600 |
| VIP3-31A-30 | 30A | <2.0mA | Fig 1 | Fig 1 | M6 | 640 |
| VIP3-31A-40 | 40A | <2.0mA | Fig 1 | Fig 1 | M6 | 640 |
| VIP3-31A-50 | 50A | <3.0mA | Fig 2 | Fig 1 | M6 | 1000 |
| VIP3-31A-80 | 80A | <7.0mA | Fig 2 | Fig 1 | M8 | 3000 |
| VIP3-31A-100 | 100A | <7.0mA | Fig 2 | Fig 1 | M8 | 3000 |
| VIP3-31A-150 | 150A | <7.0mA | Fig 2 | Fig 1 | M10 | 3200 |
| VIP3-31A-200 | 200A | <7.0mA | Fig 2 | Fig 1 | M10 | 3200 |
Electrical schematic:
Mechanical Dimension(Unit: mm)
Applications:
such as print machine
packing machine
textile equipment
industry air conditioner
UPS
medical equipment
Our Advantages
(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.
(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.
(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.
(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements
|
|
