| Brand Name: | VIIP |
| Model Number: | VIP4-2B-03 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 33*33*18 |
| Payment Terms: | T/T, Western Union |
| Place of Origin | China |
| Model Number | VIP4-2B-03 |
| Current | 3A |

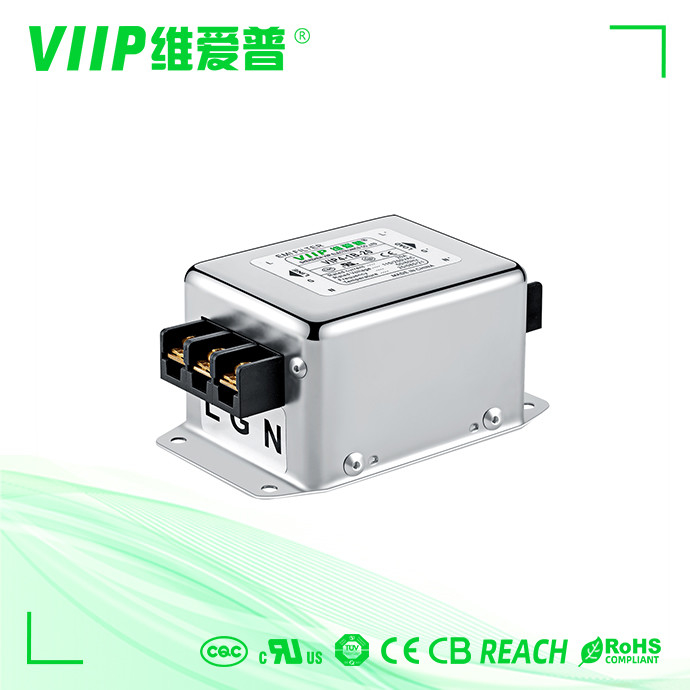

| Type | AC EMI Single phase Filter |
| Line To Line | 1760VDC |
| Line to ground | 2000VAC |
| Certificate | ISO9001 CE Rohs Reach |
| Operating Frequency | 50/60HZ |
| Temperature Range | 25 / 085 / 21 |
We offer AC single phase to suit the needs of your industry. We manufacture RFI filters for aerospace, telecom, military and medical applications, as well as a variety of other industries. We are experienced in manufacturing many types of filters like our single phase RFI filters, medical filters, power entry filters, DC filters and three phase RFI filters.Single phase filters from Curtis Industries are used to reduce the EMI in 250VAC applications. Our single phase filters are great for many industries and are available in three different types including general purpose, high performance and wide band. These RFI filters are ideal for reducing EMI in the military, commercial appliances, switching power supplies and telecommunications.
Applications:
White household
Smart home
Smart terminal
Power supply
charging post
communication and data storage
Specifications:
Our Advantages
(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.
(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.
(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.
(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements
Tabulates
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] | ||
| screw | terminal block | wires | ||||||
| VIP1-1A-01 | 1A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP1-1A-03 | 3A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP1-1A-06 | 6A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP1-1A-10 | 10A | <0.5mA | Fig 2 | Fig 1 | - - - | 0 | - - - | 75 |
| VIP4-1B-06 | 6A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 140 |
| VIP4-1B-10 | 10A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-20 | 20A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-30 | 30A | <1.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 320 |
| VIP4-1B-50 | SOA | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 600 |
| VIP4-1B-100 | 100A | <2.0mA | Fig 5 | Fig 2 | M8 | - - - | - - - | 1380 |
| VIP4-1B-150 | 150A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
| VIP4-1B-200 | 200A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
|
