Single Phase EMI Filter

10KHZ-30MHZ Common Mode EMI Filter Single Phase For Diagnostic Equipment

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

Contact Now

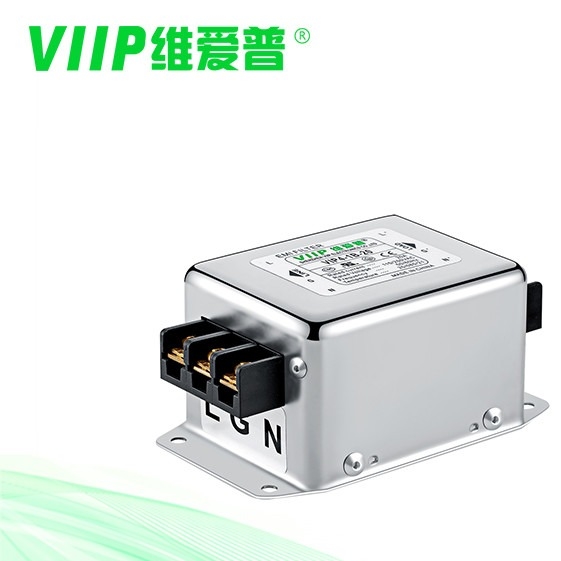

10KHZ-30MHZ Common Mode EMI Filter Single Phase For Diagnostic Equipment

Brand Name:	VIIP WeiAiPu
Model Number:	VIP4-2B-06
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Rated Current:

Type:

EMC Filter

Transfer Function:

AC EMI Filter

Nominal Center Frequency:

10KHZ~30MHZ

Certification:

CE ROHS

Application:

Military Equipment

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

10KHZ Common Mode EMI Filter

30MHZ Common Mode EMI Filter

Diagnostic Equipment Single Phase EMI Filter

Product Description

10KHZ-30MHZ EMI Filters Common Mode Single Phase for Diagnostic equipment

VIP4-2B-03(B042W0910) Rev 4.0.pdf

10KHZ-30MHZ EMI Filters Common Mode Single Phase for Diagnostic equipment Quick Detail:

Place of Origin	China
Model Number	VIP4-2B-06
Input Impedance	50Ω
Insertion Loss	30-100dB
Line To Line	1760VDC
Nominal Center Frequency	10KHZ~30MHZ
Certificate	ISO9001 CE ROHS cUL TUV
Operating Frequency	50/60HZ
Temperature Range	25 / 085 / 21

10KHZ-30MHZ EMI Filters Common Mode Single Phase for Diagnostic equipment Features and Benefits:

More than two levels of fitering. 10 KHz一30 MHz broadbandhigh efficiencyfiltering,especally enhance the low- frequency filteringeffect between 10 KHz150 KHz.

Designed secialy for the tansmssion of military equipment through CE102 inGJB151A/ 152A

10KHZ-30MHZ EMI Filters Common Mode Single Phase for Diagnostic equipment Specifications:

10KHZ-30MHZ Common Mode EMI Filter Single Phase For Diagnostic Equipment 0

Tabulates

Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals			Weight [g]
Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	screw	terminal block	wires	Weight [g]
VIP4-2A-01	1A	<0.5mA	Fig 2	Fig 1	- - -	- - -	0	95
VIP4-2A-03	3A	<0.5mA	Fig 2	Fig 1	- - -	- - -	0	95
VIP4-2A-06	6A	<0.5mA	Fig 2	Fig 1	- - -	- - -	0	95
VIP4-2A-10	10A	<1.0mA	Fig4	Fig 1	- - -	0	- - -	170
VIP4-2B-06	6A	<1.0mA	Fig4	Fig 2	M4	0	- - -	170
VIP4-2B-10	10A	<1.0mA	Fig4	Fig 2	M4	0	- - -	170
VIP4-2B-20	20A	<1.0mA	Fig4	Fig 2	M4	0	- - -	321
VIP4-2B -50	50A	<2.0mA	Fig 5	Fig 2	M6	- - -	- - -	1400
VIP4-2B-100	100A	<2.0mA	Fig 5	Fig 2	M6	- - -	- - -	2000
VIP4-2B-200	200A	<2.0mA	Fig 5	Fig 2	M8	- - -	- - -	3000
VIP4-2C-01	1A	<0.5mA	Fig 1	Fig 3	M10	- - -	0	65
VIP4-2C-03	3A	<0.5mA	Fig 2	Fig 3	M10	- - -	0	95
VIP4-2C-06	6A	<1.0mA	Fig4	Fig 3	M4	0	- - -	175
VIP4-2C-10	10A	<1.0mA	Fig4	Fig 3	M4	0	- - -	175
VIP4-2C-20	20A	<1.0mA	Fig 5	Fig 3	M4	- - -	- - -	600
VIP4-2C-50	50A	<2.0mA	Fig 5	Fig 3	M6	- - -	- - -	1600
