| Brand Name: | VIIP |
| Model Number: | VIP4-1B-06 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 33*33*18 |
| Payment Terms: | T/T, Western Union |
| Place of Origin | China |
| Model Number | VIP4-1B-06 |
| Input Impedance | 50Ω |
| Insertion Loss | 30-100dB |
| Line To Line | 1760VDC |
| Nominal Center Frequency | 10KHZ~30MHZ |
| Certificate | ISO9001 CE ROHS TUV |
| Operating Frequency | 50/60HZ |
| Temperature Range | 25 / 085 / 21 |

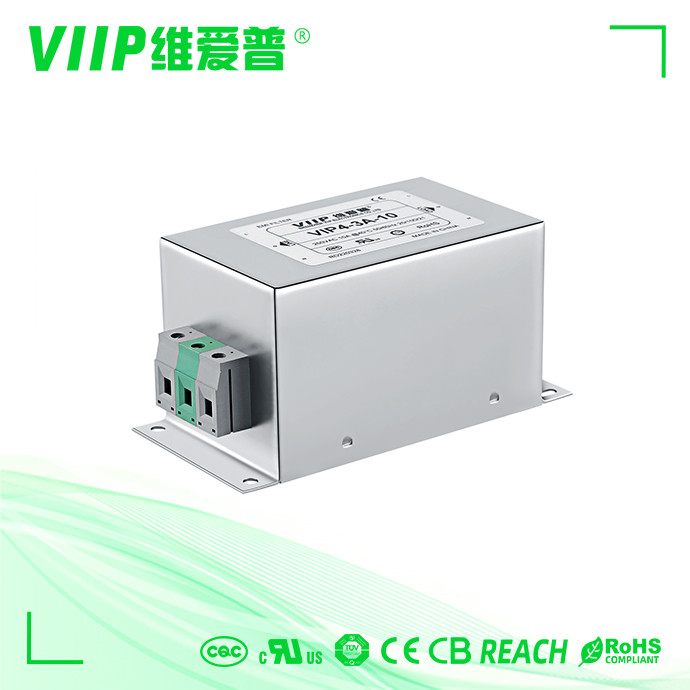

Features and Benefits for AC single phase emi filter:
150 KHz一30 MHz broadbandhigh efficiencyfiltering,especally enhance the low- frequency filteringeffect between 10 KHz150 KHz.
Designed secialy for the tansmssion of military equipment through CE102 inGJB151A/ 152A
Specifications For AC single phase emi filter:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] | ||
| screw | terminal block | wires | ||||||
| VIP1-1A-01 | 1A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP1-1A-03 | 3A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP1-1A-06 | 6A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP1-1A-10 | 10A | <0.5mA | Fig 2 | Fig 1 | - - - | 0 | - - - | 75 |
| VIP4-1B-06 | 6A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 140 |
| VIP4-1B-10 | 10A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-20 | 20A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-30 | 30A | <1.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 320 |
| VIP4-1B-50 | SOA | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 600 |
| VIP4-1B-100 | 100A | <2.0mA | Fig 5 | Fig 2 | M8 | - - - | - - - | 1380 |
| VIP4-1B-150 | 150A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
| VIP4-1B-200 | 200A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
| A | B | C | D | E | F | G | H | K | L | M | N | p | Q | |||
| VIP4-1B | 51 | 51 | 29 | 73 | --- | 73 | 63 | --- | Φ4.5 | 25 | 10 | 22 | --- | 15.5 | 6.3*0.8 | |
| 6A | --- | |||||||||||||||
| 51 | 51 | 29 | 86 | --- | 86 | 63 | --- | Φ4.5 | 25 | 10 | 9 | 3.4 | 15.5 | M4 | ||
| --- | ||||||||||||||||
| 51 | 51 | 29 | 73 | --- | 73 | 63 | --- | Φ4.5 | 25 | 10 | 22 | --- | 15.5 | 6.3*0.8 | ||
| 10A | --- | |||||||||||||||
| 51 | 51 | 29 | 86 | --- | 86 | 63 | --- | Φ4.5 | 25 | 10 | 22 | 3.4 | 15.5 | M4 | ||
| --- | ||||||||||||||||
| 51 | 51 | 29 | 73 | --- | 73 | 63 | --- | Φ4.5 | 25 | 10 | 22 | --- | 15.5 | 6.3*0.8 | ||
| 20A | ||||||||||||||||
| 51 | 51 | 29 | 84 | --- | 84 | 63 | --- | Φ4.5 | 25 | 20 | 8.5 | 2.5 | --- | M4 | ||
| 30A | 63 | 51 | 38 | 85 | --- | 104 | 75 | --- | Φ5.0 | 25 | 25 | 9 | 3.8 | --- | M6 | |
| 50A | 96 | 80 | 42 | --- | 105 | 137 | 50 | 95 | Φ4.0 | 6 | 42 | 20 | 20 | 3.4 | M6 | |
| 100A | 120 | 100 | 50 | 130 | 184 | 80 | 115 | Φ4.0 | 6 | 66 | 28 | 10 | 9 | M8 | ||
| 150A | 150 | 105 | 60 | 135 | 214 | 90 | 120 | Φ4.0 | 6 | 50 | 35 | 15 | 4.8 | M10 | ||
| 200A | 150 | 105 | 60 | 135 | 213 | 90 | 120 | Φ4.0 | 6 | 50 | 35 | 15 | 4.4 | M10 | ||
| Tolerances | ±1 | ±1 | 土1 | 土1 | ±1 | ±1 | 土0 5 | 土0 5 | 土0 5 | 土0 5 | 土0 5 | 土0 5 | 土0 5 | 土0 5 | ||
|
