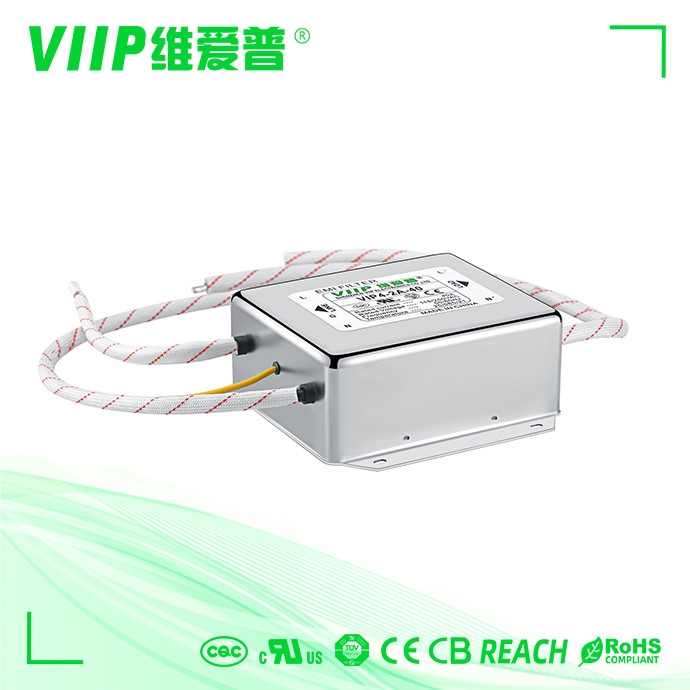

AC110 / 250V Single Phase EMI Filters For Consumer Electronics

Brand Name: VIIP WeiAiPu
Model Number: VIP4-1A-10
MOQ: 1 PCS
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE TUV UL CQC
Rated Current:
10A
Type:
EMC Filter
Certification:
CE ROHS
Application:
Consumer Appliances
Rated Voltage:
120/250VAC
Operating Frequency:
50/60HZ
Input Impedance:
500VDC/100MOHM MIN
Frequency Range:
150 KHz To 30 GHz
Storage Temperature:
-40℃~+85℃
Item:
EMI Filter
Nominal Center Frequency:
50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)
Dimensions:
Varies Depending On Model
Port:
Shenzhen
Termination Style:
Solder Pins
Rated Current:
Different
Rated Current:
Different
Weight:
290g-1000g
Weight:
290g-1000g
Insulation Resistance:
≥100MΩ
Insulation Resistance:
≥100MΩ
Rohs Compliant:
Yes
Humidity:
≤95%RH
Supply Ability:
2000 pcs within 10-15 days
Highlight:

AC110V Single Phase EMI Filters

,

250V Single Phase EMI Filters

,

CUL Single Phase EMI Filter

Product Description

AC110/250V Single Phase EMI Filters For Consumer Electronics

Quick Detail:



Place of OriginChina
Model NumberVIP4-1A-10
Input Impedance50Ω
Insertion Loss30-100dB
Line To Line1760VDC
Nominal Center Frequency10KHZ~30MHZ
CertificateISO9001 CE ROHS cUL TUV
Operating Frequency50/60HZ
Temperature Range25 / 085 / 21


Features and Benefits for AC110/250V Single Phase EMI Filters For Consumer Electronics

More than two levels of fitering. 150 KHz一30 MHz broadbandhigh efficiencyfiltering,especally enhance the low- frequency filteringeffect between 10 KHz150 KHz.


Designed secialy for the tansmssion of military equipment through CE102 inGJB151A/ 152A

Typical applications  for ac single phase emi filter
 lighting equipment ,medical type applications ,industrial applications ,controls and communication systems .





Work frequency. rated voltage to meet different requirements, rapid customization design.



  • The compact size can be applied to various situations.
  • There are a variety of parts and combinations to meet different customer's EMC tests
  • Customized products according to customer's requirements



General purpose AC filters with good attenuation frequency range 150KHz-30MHz

Compact structure, high performance-cost ratio, easy to install,safe and reliable

VIP4 -1A and VIP4 -1B series are one - stage commonmode filters with almost the same filtering fleet, only slight differen different current



Specifications for AC110/250V Single Phase EMI Filters For Consumer Electronics

AC110 / 250V Single Phase EMI Filters For Consumer Electronics 0
AC110 / 250V Single Phase EMI Filters For Consumer Electronics 1




EMI Filters And RFI Filters For The Lighting Industry And High Reliability Applications

FAQ:
Q:Do you offer a customized product?
A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.
Q: Are you an ISO9001 manufacturer?
A: Yes, we are a professional manufacturer of EMI filter designing and manufacturing since 2009.
Q: How long is the delivery time?
A: We ensure fast delivery. Generally, it will take 2-5 days for samples; 10 to 15 for small orders, 15-25days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us


Q: How about the payment terms?
A: we also accept T/T Western Union, Paypal, etc.
Q: How about the certificates?
A: ISO 9001, CE, TUV, UL, ROHS, ENEC, REACH, etc.





Tags:

Power Supply Input Filter 30dB

100dB Emi Filter 10A

Metal Case Emi Filter 10A
