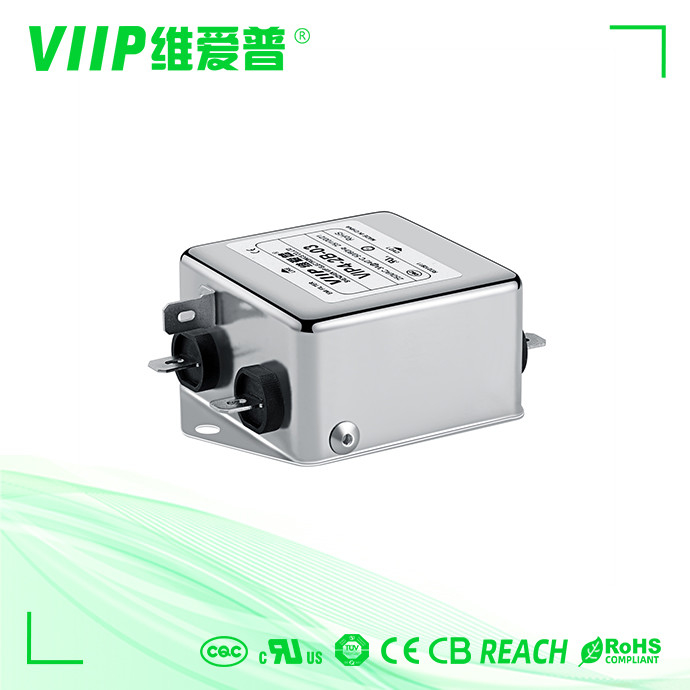

Control And Lab Equipment EMI Filters Single Phase With Wire Leads

Control And Lab Equipment EMI Filters Single Phase With Wire Leads
Control And Lab Equipment EMI Filters Single Phase With Wire Leads
Control And Lab Equipment EMI Filters Single Phase With Wire Leads Control And Lab Equipment EMI Filters Single Phase With Wire Leads

Large Image :  Control And Lab Equipment EMI Filters Single Phase With Wire Leads

Product Details:
Place of Origin: China
Brand Name: VIIP
Certification: CE TUV UL ROHS REACH
Model Number: VIP4-1A-01
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs within 10-15 days

Control And Lab Equipment EMI Filters Single Phase With Wire Leads

Description
Rated Current: 1A Type: EMC Filter
Transfer Function: AC EMI Filter Nominal Center Frequency: 10KHZ~30MHZ
Certification: CE ROHS Application: Control And Lab Equipment
High Light:

Lab Equipment EMI Filters

,

Wire Leads EMI Filters

,

100dB Single Phase EMI Filter

Single-Phase EMI Filters With Wire Leads for Control and Lab equipment

Single-Phase EMI Power Line Filters Quick Detail:



Place of Origin China
Model Number VIP4-1A-01
Input Impedance 50Ω
Insertion Loss 30-100dB
Line To Line 1760VDC
Nominal Center Frequency 10KHZ~30MHZ
Certificate ISO9001 CE ROHS cUL TUV
Operating Frequency 50/60HZ
Temperature Range 25 / 085 / 21



Single-Phase EMI Power Line Filters Features and Benefits:

More than two levels of fitering. 10 KHz30 MHz broadbandhigh efficiencyfiltering,especally enhance the low- frequency filteringeffect between 10 KHz150 KHz.



Designed secialy for the tansmssion of military equipment through CE102 inGJB151A/ 152A





Work frequency. rated voltage to meet different requirements, rapid customizationdesign.



Designed for Common Mode Emissions or Susceptibility Application





Specifications for Single Phase EMI Power Line Filters:

Control And Lab Equipment EMI Filters Single Phase With Wire Leads 0

Control And Lab Equipment EMI Filters Single Phase With Wire Leads 1

Single Phase EMI Power Line Filters tabulates



Part No. Rated Current [A] 250VAC/50Hz @ 20C
Leakage Current [mA]
Physical Dimensions Electrical Schematics Terminals Weight [g]
screw terminal block wires
VIP1-1A-01 1A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP1-1A-03 3A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP1-1A-06 6A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP1-1A-10 10A <0.5mA Fig 2 Fig 1 - - - 0 - - - 75
VIP4-1B-06 6A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 140
VIP4-1B-10 10A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 170
VIP4-1B-20 20A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 170
VIP4-1B-30 30A <1.0mA Fig 5 Fig 2 M6 - - - - - - 320
VIP4-1B-50 SOA <2.0mA Fig 5 Fig 2 M6 - - - - - - 600
VIP4-1B-100 100A <2.0mA Fig 5 Fig 2 M8 - - - - - - 1380
VIP4-1B-150 150A <2.0mA Fig 5 Fig 2 M10 - - - - - - 1900
VIP4-1B-200 200A <2.0mA Fig 5 Fig 2 M10 - - - - - - 1900
