Single Phase EMI Filter

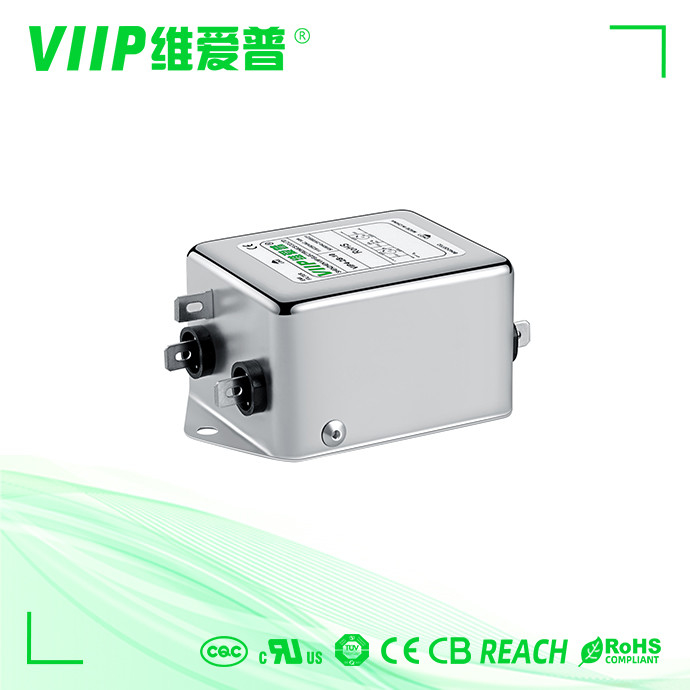

Single Phase EMI Power Line Filters For Fitness Equipment 10A

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

Contact Now

Single Phase EMI Power Line Filters For Fitness Equipment 10A

Brand Name:	VIIP WeiAiPu
Model Number:	VIP4-1A-10
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Type:

AC SINGLE PHASE FILTER

Rated Voltage:

110/250VAC

Rated Current:

Certification:

CE ROHS,CE CQC,ISO; TUV

Application:

Fitness Equipment

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

Fitness Equipment EMI Power Line Filters

EMI Power Line Filters 10A

ISO9001 Single Phase EMI Filter

Product Description

Single-Phase EMI Power Line Filters For Fitness Equipment 16A

Quick Detail:

Place of Origin	China
Model Number	VIP4-1A-10
Current	10A
Type	AC EMI Single phase Filter
Line To Line	1760VDC
Line to ground	2000VAC
Certificate	ISO9001 CE Rohs Reach
Operating Frequency	50/60HZ
Temperature Range	25 / 085 / 21

Single-Phase EMI Power Line Filters For Fitness Equipment 10A

General purpose single phase AC power line filters ,easy to install ,available for small electronic equipment’s and measuring instrument

Single-Phase EMI Power Line Filters For Fitness Equipment 10A Applications:

White household

Smart home

Smart terminal

Power supply

fitness equipment

Typical applications:

sports equipments ,steppers ,treadmills and other frequency inverter applications that requires high noise suppression

AC Double Stage EMI Filters For Sports And Fitness Equipment Specifications:

Tabulates:

Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals			Weight [g]
Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	screw	terminal block	wires	Weight [g]
VIP1-1A-01	1A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP1-1A-03	3A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP1-1A-06	6A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP1-1A-10	10A	<0.5mA	Fig 2	Fig 1	- - -	0	- - -	75
VIP4-1B-06	6A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	140
VIP4-1B-10	10A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	170
VIP4-1B-20	20A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	170
VIP4-1B-30	30A	<1.0mA	Fig 5	Fig 2	M6	- - -	- - -	320
VIP4-1B-50	SOA	<2.0mA	Fig 5	Fig 2	M6	- - -	- - -	600
VIP4-1B-100	100A	<2.0mA	Fig 5	Fig 2	M8	- - -	- - -	1380
VIP4-1B-150	150A	<2.0mA	Fig 5	Fig 2	M10	- - -	- - -	1900
VIP4-1B-200	200A	<2.0mA	Fig 5	Fig 2	M10	- - -	- - -	1900

Single Phase EMI Power Line Filters For Fitness Equipment 10A 0

FAQ:

About VIIP
Q:Are you manafacturer or trading company?
Shenzhen VIIP is a manafacturer forEMI/EMC Products located in Shenzhen Guangdong China.

About Products AC Double Stage EMI Filters For Sports And Fitness Equipment
Q:What certification do you have for your products?
We have got CE ROHS FCC and so on.
Q:What is your MOQ?
It depends on different items,we have low MOQ request ,because we have a big warehouse for stock orders.
Q:What shipping ways do you support for delivery?
We support air, sea and railway shipment.

About Sample Order
Q: Can I have a sample order for your products?
A: Yes, we offer product samples, including mixed samples.
