20A TUV CE Approved 3 Phase EMI Filter For Power Management System

20A TUV CE Approved 3 Phase EMI Filter For Power Management System
20A TUV CE Approved 3 Phase EMI Filter For Power Management System
20A TUV CE Approved 3 Phase EMI Filter For Power Management System 20A TUV CE Approved 3 Phase EMI Filter For Power Management System

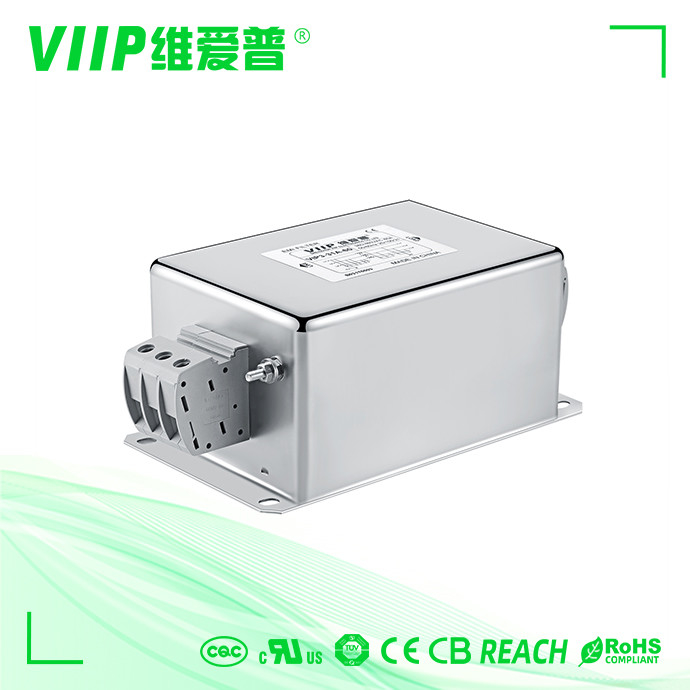

Large Image :  20A TUV CE Approved 3 Phase EMI Filter For Power Management System

Product Details:
Place of Origin: China
Brand Name: VIIP
Certification: CE TUV UL ROHS REACH
Model Number: VIP3-32C-20
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs within 10-15 days

20A TUV CE Approved 3 Phase EMI Filter For Power Management System

Description
Transfer Function: General Purpose Rated Voltage: 110/250VAC
Rated Current: 20A Application: Power Management System
Case: Metal Product Name: 3 Phase Emi Filter
High Light:

250VAC 3 Phase EMI Filter

,

20A 3 Phase EMI Filter

,

CE Three Phase EMI Filter

20A TUV CE Approved 3 Phase EMI Filter For Power management system



3 phase emi  Filter Description:



suitable for three phase three line power supply

compact structure ,simple and time-saving installation,specially suitable for applications with limited space ,highly cost effective

Specification

Item 3 phase emi  Filter
Model VIP3-32C-20
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 150K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 110V/250V
Rated Current 20A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 2250VDC
Line to Ground 2700VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 1pcs
Applications Laser equipment
leading time 5~15 weekdays









Description of 3 phase emi filter:



Rated current: 0.5-2000A



Optional medical versions(H type)



Solder lug, stud or terminal block connection(over 250A it's copper bar)



Custom specific versions on request



Suitable for three-phase three-line power supply





VIP3-32C series are two-stage filters comprising one common mode and one d1fferential mode with enhanced filtering effect of the d1fferential mode interference



Excellent common and differential mode filtering effect for interferance from 10KHz to 30MHz







520VAC or 690VAC high voltage versions optional



Electrical schematic:

20A TUV CE Approved 3 Phase EMI Filter For Power Management System 0




Tabulates:



Part No. Rated Current [A] 250VAC/50Hz@20C
Leakage Current [mA]
Physical Dimensions Electrical Schematics Termial Weight [g]
VIP3-32B-10 10A <4 OmA Fig 2 Fig1 M4 1400
VIP3-32B-20 20A <4 OmA Fig 2 Fig1 M4 1400
VIP3-32B-50 50A <60mA Fig 2 Fig 1 M6 1600
VIP3-32B-100 100A <60mA Fig 2 Fig1 MS 3700
VIP3-32B-150 150A <60mA Fig 2 Fig1 M10 7000
VIP3-32B-200 200A <60mA Fig 2 Fig1 M10 7000
VIP3-32C-06 6A <4 OmA Fig 2 Fig 2 M4 650
VIP3-32C-10 10A <4 OmA Fig1 Fig 2 M4 650
VIP3-32C-20 20A <10 OmA Fig1 Fig 2 M4 1400
VIP3-32C-50 50A <15 OmA Fig 2 Fig 2 M6 3200



Mechanical Dimension(mm):






    A B C E F G H   J K L M N p Q
VIP3-32B 10A 120 100 50 130 153 60 115 Φ4 0 6 50 28 10 39 25 M4

20A 120 100 50 130 151 60 115 Φ4 0 6 50 28 10 3 25 M4

SOA 150 105 60 135 190 90 120 Φ4 0 6 50 35 15 31 52  5 M6

100A 200 127 80 170 269 116 150 Φ60 9 70 50 20 9 46 MB

150A 260 170 100 220 324 172 196 Φ80 12 90 65 30 46 63 M10

200A 260 170 100 220 323 172 196 Φ80 12 90 65 30 42 63 M10

VIP3-32C 6A 96 80 42 105 131 50 95 Φ4 0 6 42 26 9 32 29  5 M4

10A 96 80 42 105 130 50 95 Φ4 0 6 42 26 9 42 29  5 M4

20A 120 100 50 130 151 60 115 Φ4 0 6 50 28 10 3 25 M4

SOA 200 127 80 170 240 116 150 Φ60 9 70 50 20 31 46 M6

Tolerances ±1 ±1 1 ±1 ±1 0   5 0   5 0  5 0  5 0   5 0   5 0  5 0   5 0   5



Applications:



  Widely used all kinds of electrical unit with ⛛ connection style,such as print machine ,packing machine ,textile equipment ,industry air conditioner ,UPS ,medical equipment .etc
