3 Phase EMI Filter
>

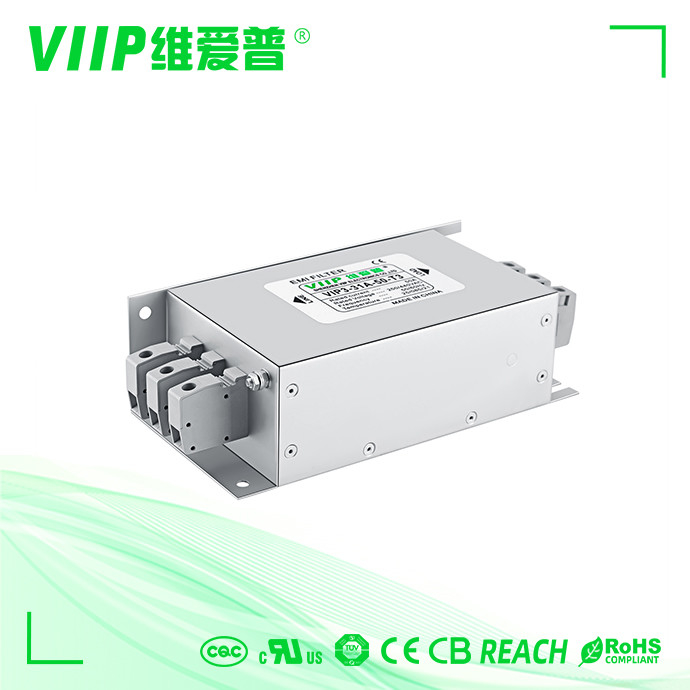

3 Wire TUV CE Approved 3 Phase EMI Filter For Power Management System

3 Wire TUV CE Approved 3 Phase EMI Filter For Power Management System

Brand Name: VIIP WeiAiPu
Model Number: VIP3-32C-10
MOQ: 1 PCS
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
CE TUV UL CQC
Transfer Function:
General Purpose
Rated Voltage:
110/250VAC
Rated Current:
10A
Application:
Power Management System
Case:
Metal
Product Name:
3 Phase Emi Filter
Input Impedance:
500VDC/100MOHM MIN
Frequency Range:
150 KHz To 30 GHz
Storage Temperature:
-40℃~+85℃
Item:
EMI Filter
Operating Frequency:
50/60HZ
Nominal Center Frequency:
50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)
Dimensions:
Varies Depending On Model
Port:
Shenzhen
Termination Style:
Solder Pins
Rated Current:
Different
Weight:
290g-1000g
Insulation Resistance:
≥100MΩ
Rohs Compliant:
Yes
Rohs Compliant:
Yes
Humidity:
≤95%RH
Supply Ability:
2000 pcs within 10-15 days
Highlight:

Metal 3 Phase EMI Filter

,

TUV Approved 3 Phase EMI Filter

,

3 Wire Three Phase EMI Filter

Product Description

3 Wire TUV CE Approved 3 Phase EMI Filter For Power management system



Description:



suitable for three phase three line power supply

compact structure ,simple and time-saving installation,specially suitable for applications with limited space ,highly cost effective

Specification

Item 3 phase emi  Filter
Model VIP3-32C-10
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 150K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 110V/250V
Rated Current 10A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 2250VDC
Line to Ground 2700VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 1pcs
Applications Laser equipment
leading time 5~15 weekdays









Description of 3 phase emi filter:



Rated current: 0.5-2000A



Optional medical versions(H type)



Solder lug, stud or terminal block connection(over 250A it's copper bar)



Custom specific versions on request



Suitable for three-phase three-line power supply





VIP3-32C series are two-stage filters comprising one common mode and one d1fferential mode with enhanced filtering effect of the d1fferential mode interference



Excellent common and differential mode filtering effect for interferance from 10KHz to 30MHz







520VAC or 690VAC high voltage versions optional



Tabulates:



Part No. Rated Current [A] 250VAC/50Hz@20C
Leakage Current [mA]
Physical Dimensions Electrical Schematics Termial Weight [g]
VIP3-32B-10 10A <4 OmA Fig 2 Fig1 M4 1400
VIP3-32B-20 20A <4 OmA Fig 2 Fig1 M4 1400
VIP3-32B-50 50A <60mA Fig 2 Fig 1 M6 1600
VIP3-32B-100 100A <60mA Fig 2 Fig1 MS 3700
VIP3-32B-150 150A <60mA Fig 2 Fig1 M10 7000
VIP3-32B-200 200A <60mA Fig 2 Fig1 M10 7000
VIP3-32C-06 6A <4 OmA Fig 2 Fig 2 M4 650
VIP3-32C-10 10A <4 OmA Fig1 Fig 2 M4 650
VIP3-32C-20 20A <10 OmA Fig1 Fig 2 M4 1400
VIP3-32C-50 50A <15 OmA Fig 2 Fig 2 M6 3200







Applications:



  Widely used all kinds of electrical unit with ⛛ connection style,such as print machine ,packing machine ,textile equipment ,industry air conditioner ,UPS ,medical equipment .etc







Our Advantages



(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.
(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.
(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.
(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements
